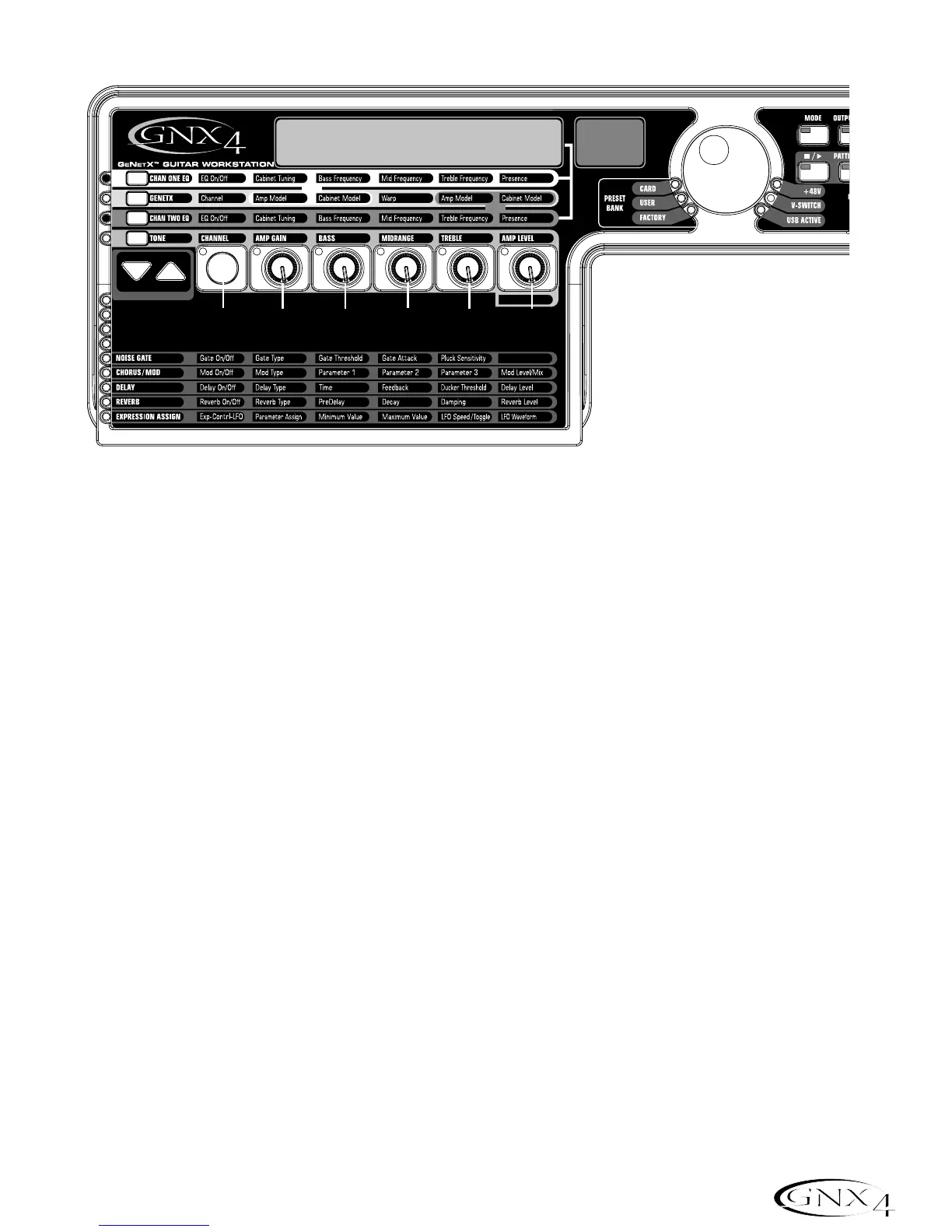

CHAN ONE EQ and CHAN TWO EQ Rows
The CHAN ONE EQ and CHAN TWO EQ rows are used for modifying the center frequencies of
the Bass,Midrange,and Treble controls of that reside within the TONE Row. A Presence control is
available here for editing amp tone as well. There is also a Cabinet Tuning control for changing the tuning
of a selected channel’s cabinet resonance. When either the CHAN ONE EQ or CHAN TWO EQ
row is selected,the knobs and STATUS button perform the following functions:
STATUS BUTTON
Turns the EQ on and off for the selected channel.
KNOB 1
Adjusts the Cabinet Tuning resonance of the cabinet model for the selected channel. The Cabinet
Tuning ranges are from one octave below (-
1™0) to one octave above (1™0).
KNOB 2
Selects the Bass Center Frequency for the selected channel. The Bass Center Frequency range is
from 50Hz (
50) to 300Hz (300).
KNOB 3
Selects the Midrange Center Frequency for the selected channel. The Midrange Center Frequency
range is from 300Hz (
300 HZ) to 5000Hz (5000 HZ).
KNOB 4
Selects the Treble Center Frequency for the selected channel. The Treble Center Frequency range is
from 500Hz (
500 HZ) to 8000Hz (8000 HZ).
KNOB 5
Boosts or cuts the Presence Level for the selected channel. The Presence Control is a shelf EQ and
has a fixed frequency of 7500Hz. The Presence Level range is from -12dB (
-12) to 12dB (12).
