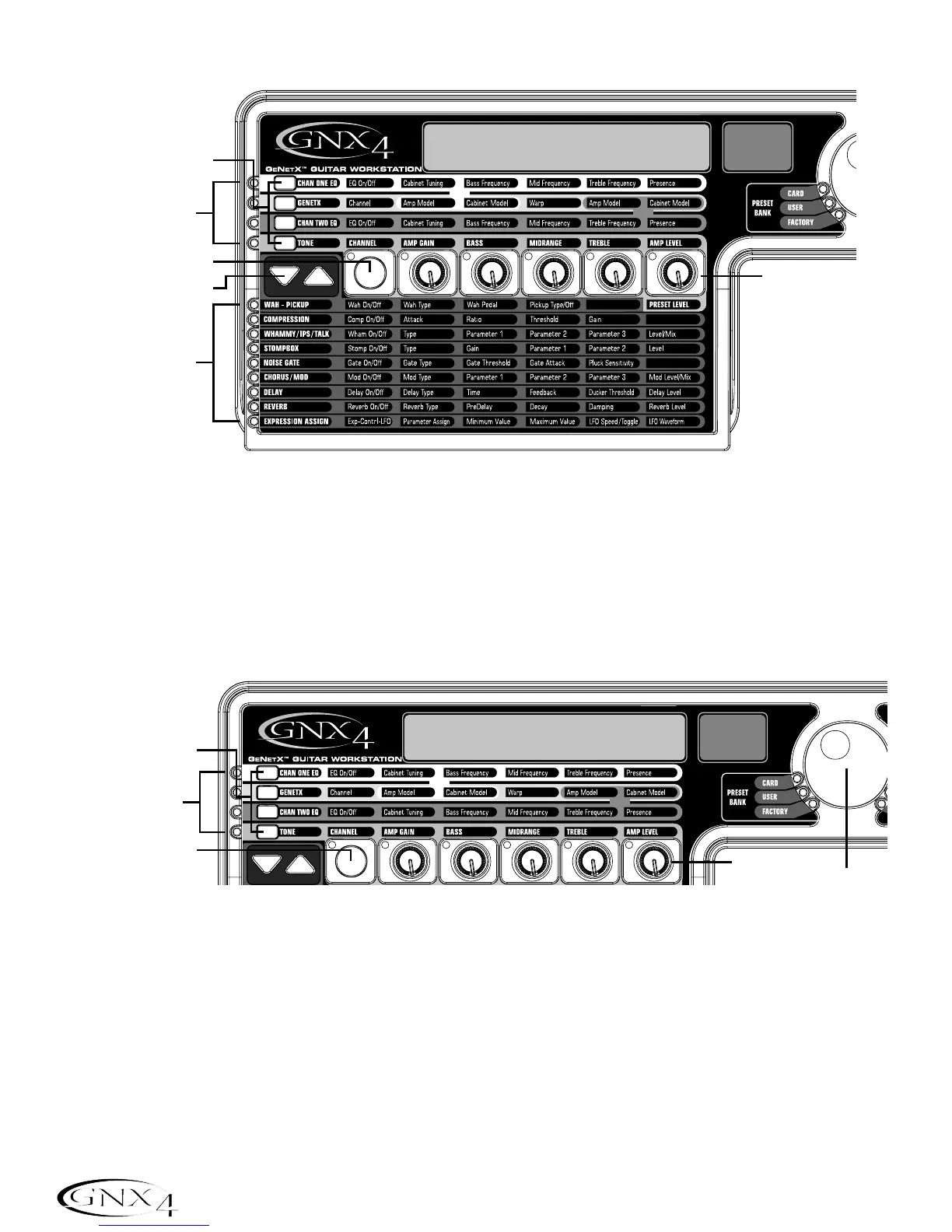

The GNX4 Matrix
The main panel of the GNX4 is the Matrix. The Matrix is comprised of two main sections,Amp/Cabinet
and Effects. It is used to navigate through the GNX4’s amp/cabinet modeling and effects parameters. Upon
power up,the GNX4 defaults to the TONE amp control row in the Amp/Cabinet section and any effects
that are enabled within a preset will have their corresponding LEDs lit in the Effects section of the Matrix.
You can select one of the other three Amp Control rows,CHAN 1 EQ, GENETX, or CHAN 2 EQ using
the Amp Control Buttons or you can select the different effects and their parameters using the Effect
Select buttons. The LED to the left of each row indicates which row is active, while the Status Button
and five Knobs control the corresponding parameter above or below each knob.
Viewing/Editing GENETX
™
and Amp Parameter Values
To view or edit an amp parameter’s current value,you must first select the row in which the parameter
resides using the Amp Control buttons located to the left of the amp parameter rows. After selecting
the desired row, use the Status Button and Knobs to adjust the parameters. When turning a knob one
click position the current value of the selected parameter will show in the display. If a Knob is turned
again within 3 seconds,the parameter value will be changed. If a Knob is not turned within 3 seconds,
the main display returns back to the preset name.
NOTE: If a parameter name is shown in the display while editing both Amps and Effects,the
DATA WHEEL can change the value as well as the Knobs.
