Chapter 7 Installing Internal Options
4 Remove the front cover.

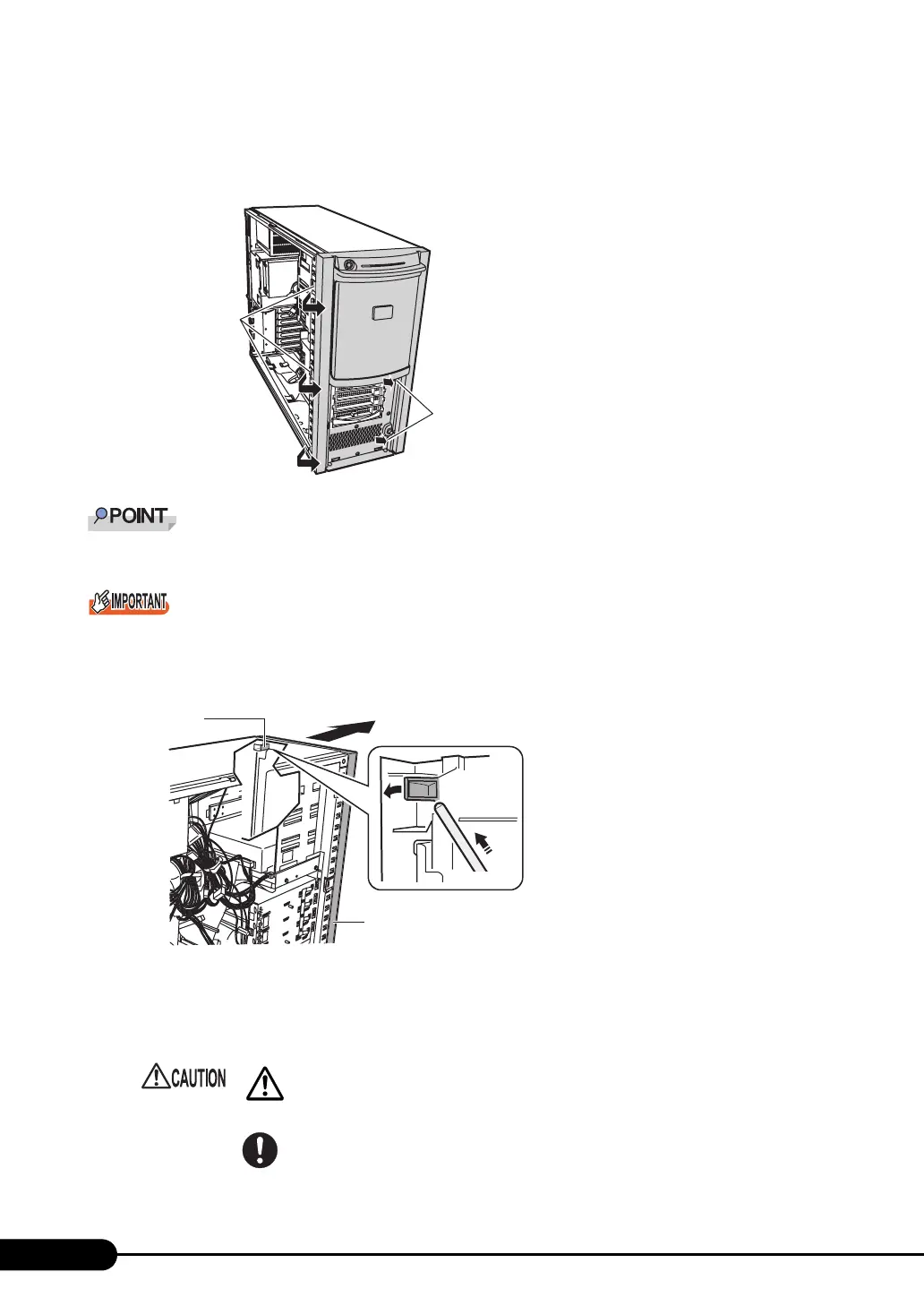

The front cover is fastened with five tabs. Pull the left tabs first, and then remove the front cover
while pressing the right tabs.
` Remove the front cover as necessary, e.g., when you install a 5-inch internal device.
` When removing the front cover, if the latches on the back of the front cover are hard to release from
the frame, insert a long stick-shaped object inside the server, press the latch on the back of the front
cover in the direction of the arrow (1), and release it (2), as shown in the figure below. The latch of the
front cover may break if you try to release it by force.
■ Installing Covers
To attach covers, simply reverse the removal procedures.
• Before turning on the server, make sure that all covers are in place.
• Check to make sure no tools or unnecessary components are left inside the
server before attaching the side cover back into place.
Left tabs
Right tab
Front cover
㽲
㽳
Latch
To Next Page
