PRIMERGY TX150 S4 User’s Guide
Installing hardware options
7
7.6.3 How to Install the 5-inch Internal Device
To install DVD-RAM unit
` Before installing a DVD-RAM unit, remove the preinstalled CD-ROM drive unit. For details on how to
install a DVD-RAM unit, refer to "7.6.4 How to Install a DVD-RAM Unit" (Jpg.211)
Perform the following procedures to install a 5-inch internal device.
1 Turn off the server and connected devices, and unplug all power cables from
the outlet.
2 Remove the side and front covers.
J"7.2 Removing and Attaching Covers" (pg.186)
3 Install the SCSI card (PG-129B).
J"7.4.3 How to Install Expansion Cards" (pg.199)

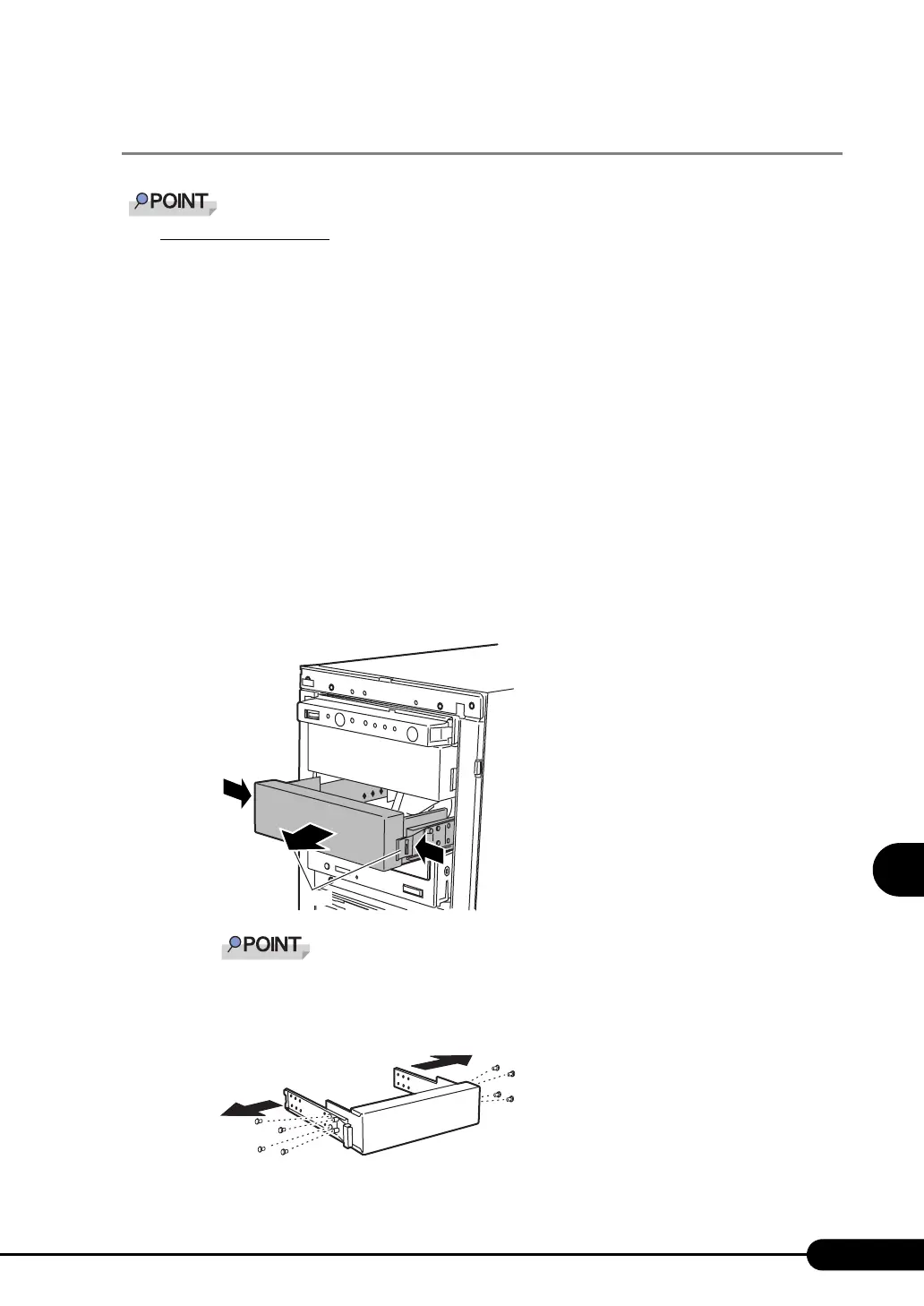

4 Remove the dummy unit.
Pull the dummy unit out slowly towards you, keeping the tabs on the 5-inch storage bay rails (on
both sides) pressed inward.
` Be sure to keep the removed dummy units for later use.
5 Detach the 5-inch storage bay rails from the removed dummy unit.
Remove eight screws that fix the 5-inch storage bay rails to detach.
Tabs
