PRIMERGY TX150 S4 User’s Guide
1
Overview
1.3 Component Names and Functions
This section explains the component names and functions of the server and
baseboard.

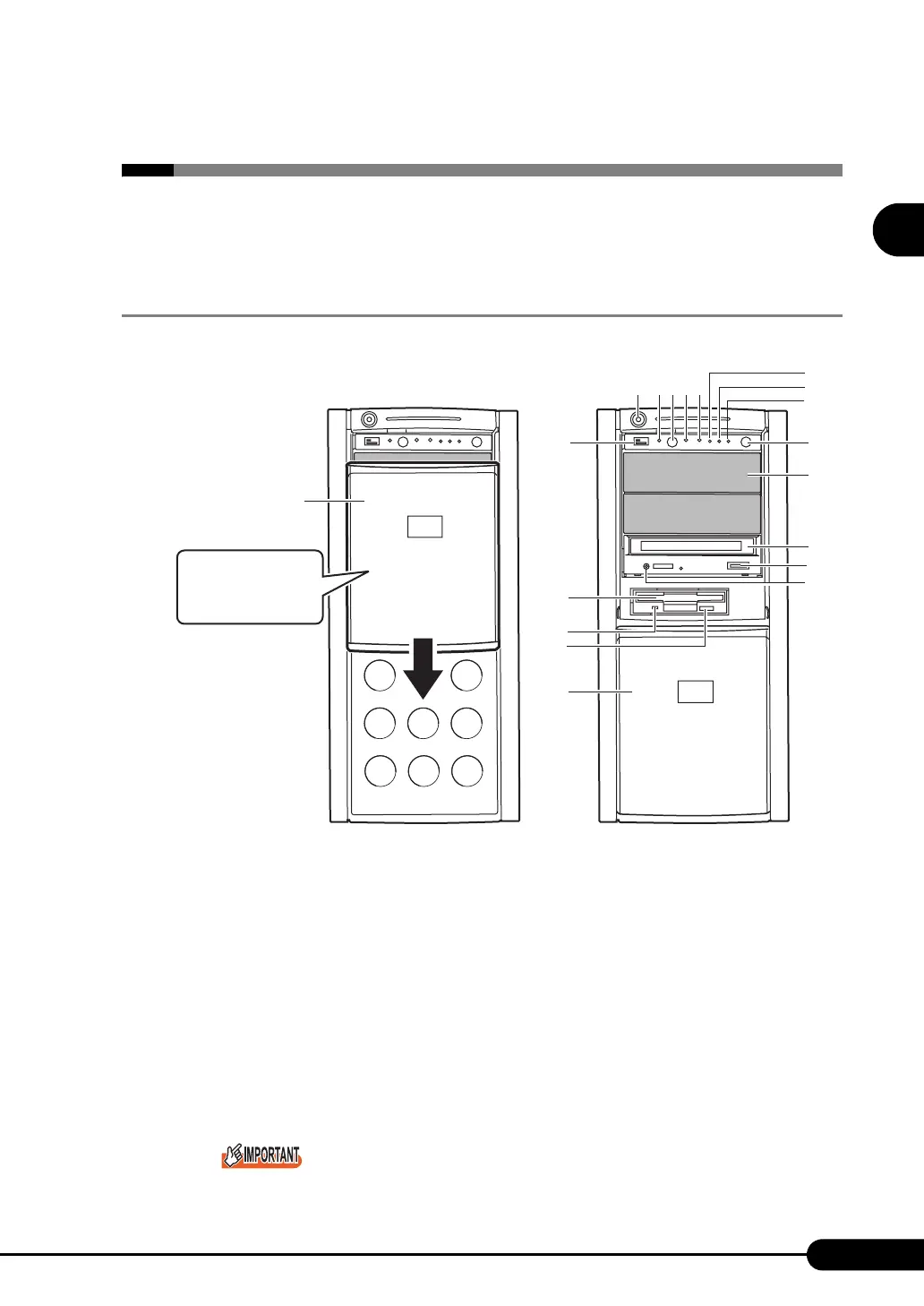

1.3.1 Server (Front View)
a Drive cover key
We recommend you lock it to prevent unauthorized access to the inside of the server.
b System identification LED
This LED is used for maintenance. When pressing the system identification LED button, the
front and rear LEDs are lit blue so that the locations of devices being maintained can be
determined.
Also, the [System Identification LED Display] button of ServerView can be used to light them.
c System identification LED button
When pressing system identification LED button, the front and rear system identification LEDs
are lit blue so that the locations of devices being maintained can be determined.
d Reset switch
Pressing this switch resets and restarts the system.
` Do not restart the system when the hard disk access LED is blinking.
Data in the hard disk may be damaged.
a
b c de
f
g
h
i
j
k
l
m
n
o
p
r
q
Drive cover
Pull the drive cover
down to the lower
end of the server.
