Chapter 1 Overview

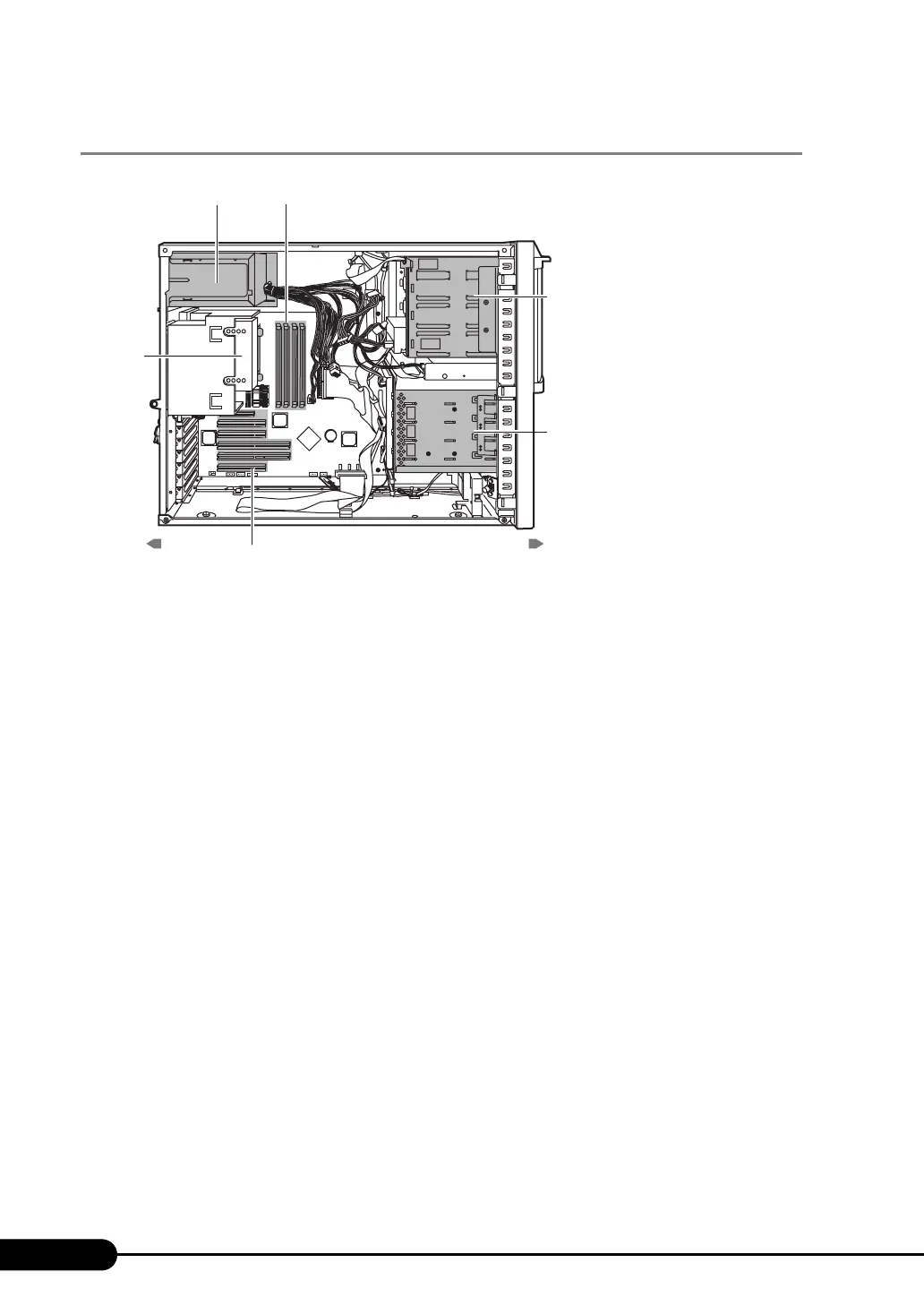

1.3.3 Server (Internal)
a Power supply unit
b Memory slot
Contains memory.
c 5-inch storage bay
Contains a 5-inch internal optional device.
Unlike external devices, an internal option does not need to be connected to the outlet because its
power is supplied from the server. It also saves space.
d 3.5-inch storage bay
Contains a 3.5-inch internal optional device.
e Expansion Card Slot
Contains extension cards that enhance the server functions.
PCI cards with the PCI bus interface can be installed in the Expansion Card slots.
f CPU
ab
c
d
e
f
Rear
Front
