Chapter 7 Installing Internal Options
7.6.2 Installable 5-inch Internal Devices and Notes
This section explains installable 5-inch internal devices, SCSI-IDs, and connections. Check this section
before installing.
■ Installable 5-inch Internal Devices and SCSI-IDs
The following types of 5-inch internal devices can be installed in this server. For the combination of
additional internal 5-inch options and their SCSI IDs, refer to the following table:
` To install Tape Drv LTO2 Ultrium2 200GB, two bays are used.

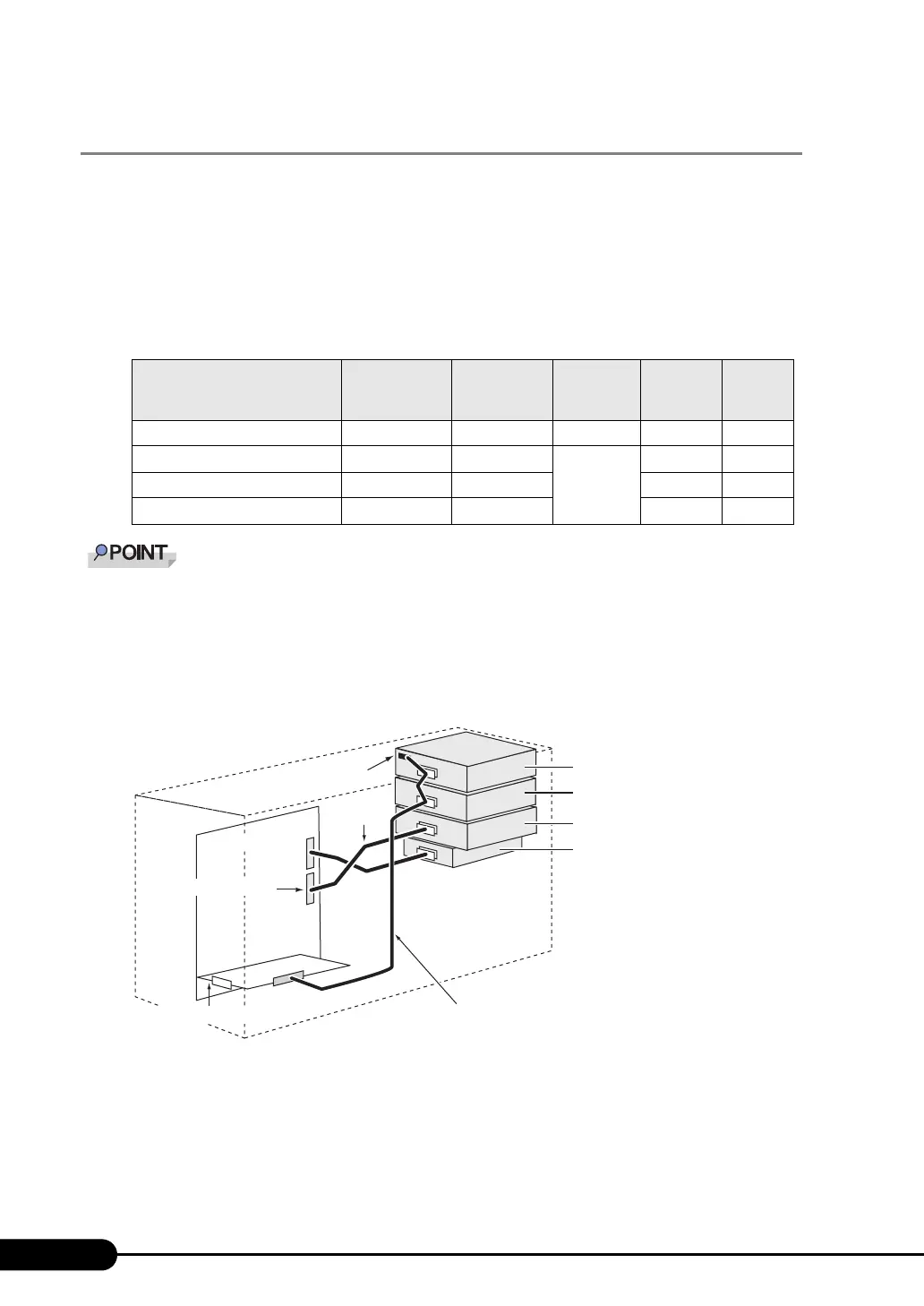

■ Connections
To connect 5-inch internal devices, the SCSI card (PG-129B or PG-128) needs to be installed in
advance.
Connect 5-inch internal devices as described below.
table: Installable 5-inch Internal Devices
Product name Model
number of
installed
devices
maximum
Available
bay
SCSI ID
DVD-RAM unit PG-DVA102D 1 1 Bay 1 -
Tape Drv DAT72 36GB internal PG-DT502
1
1Bay 25
Tape Drv VXA-2 80GB PG-VX201 1 Bay 2 5
Tape Drv LTO2 Ultrium2 200GB PG-LT201 1 Bay2 4
Baseboard
Bay3
Bay2
Bay1
IDE connector
SCSI card (PG-129B)
SCSI cable
(PG-129 attached)
IDE cable
Terminal resistor
CD-ROM drive (preinstalled)
FDD (preinstalled)
SCSI option (expanded)
SCSI option (expanded)
