195
PRIMERGY TX150 S4 User’s Guide
Installing hardware options
7
7.4 Installing Expansion Cards
This section explains the types of expansion card, notes and installation procedures.

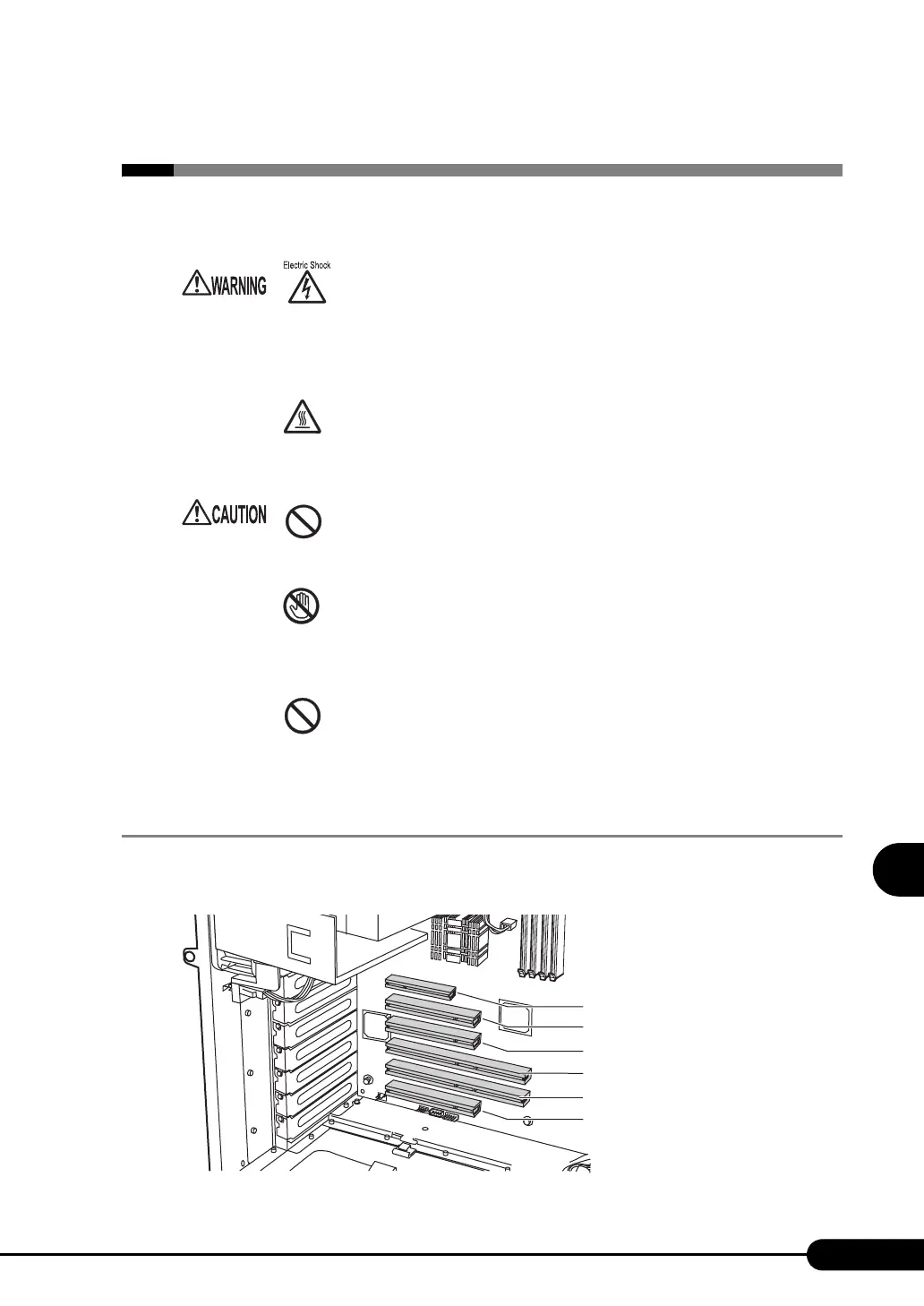

7.4.1 Where to Install an Expansion Card
The server has five PCI slots to accommodate up to five expansion cards.
The specification is different according to the PCI slot number.
• When installing or removing an expansion card, turn off the server, all
peripheral devices, and any other connected devices. Also unplug all power
cables from the outlet.
Failure to do so can cause electric shock.
• Install our genuine expansion cards only.
Failure to do so may cause a device failure, fire, or electric shock.
• Wait for a sufficient period of time after server shutdown before installing or
removing expansion cards.
Failure to do so can cause burns.
injury
• When installing or removing expansion cards, make sure to remove the screws
at the specified locations only.
There is a risk of injury if screws other than those at the specified locations are
removed. This could also damage the server.
• Touch only the specified part of the printed circuit board.
Failure to do so could cause injury and also damage the server.
• Do not touch metal fixings of the main board on the rear side of the server. This
could cause injury. This could also damage the server.
• Expansion cards are made of delicate components that are extremely sensitive
to static electricity, and they can be destroyed by static electricity from your
clothes or body. Before handling them, first touch some metallic object to
discharge static electricity.
PCI slot 1 (PCI 32bit33MHz)
PCI slot 2 (PCI-X 64bit66MHz)
PCI slot 3 (PCI-X 64bit66MHz)
PCI slot 4 (PCI 32bit33MHz)
PCI slot 5 (PCI 32bit33MHz)
PCI Express slot
