Chapter 1 Overview

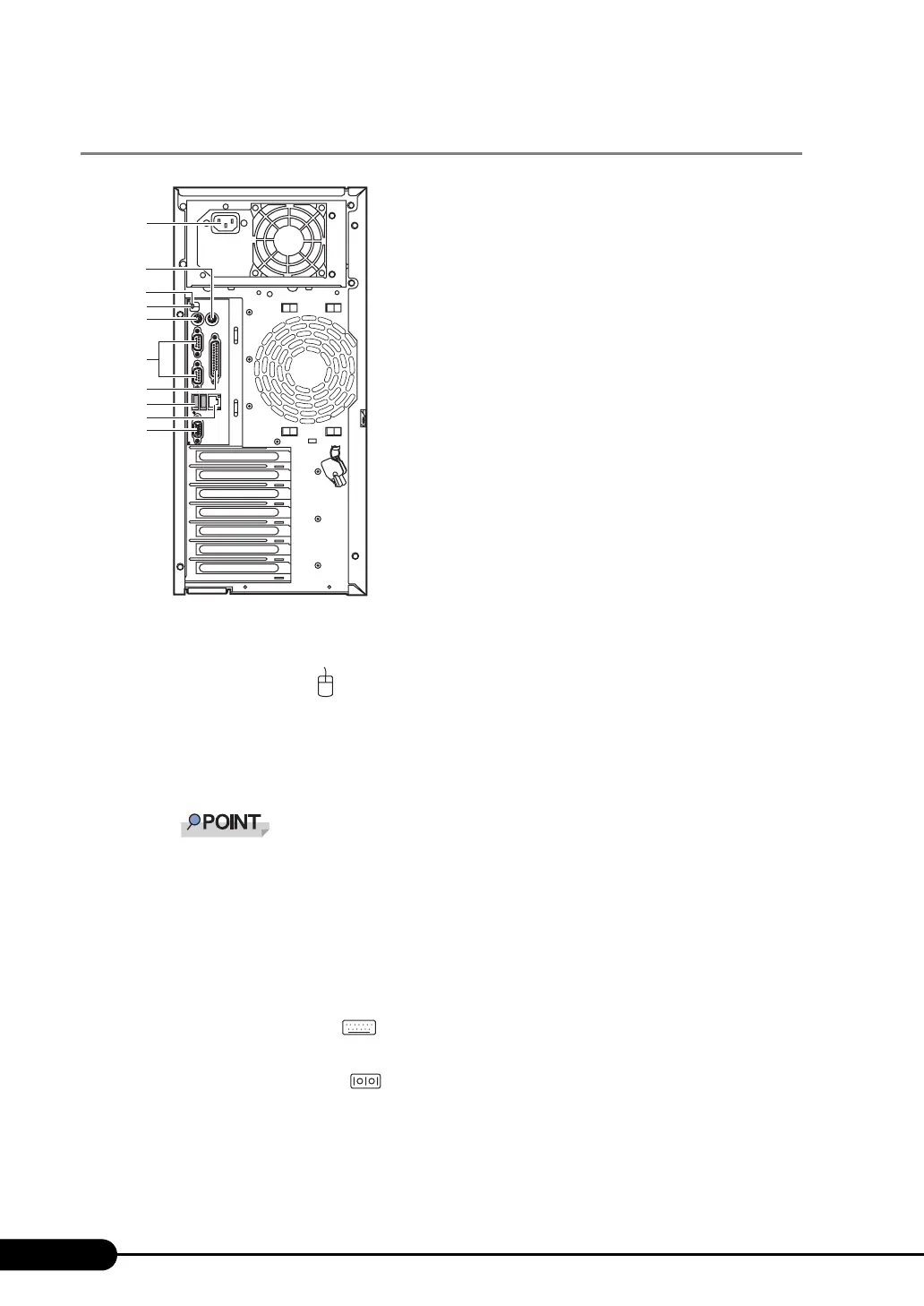

1.3.2 Server (Rear View)
a Inlet
Connects power cables.
b Mouse connector ( )
A mouse is plugged in.
c System status LED
This LED lights or blinks in amber when an error is detected in the server components. If this
LED lights or blinks, contact an office listed in the "Contact Information" of "Start Guide".
` System status LED is lit when the server is in standby mode (when the AC power is on and the
DC power is off), but this does not indicate an error.
d System identification LED
This LED is used for maintenance. When pressing the system identification LED button, the
front and rear LEDs are lit blue so that the locations of devices being maintained can be
determined.
Also, the [System Identification LED Display] button of ServerView can be used to light them.
e Keyboard connector ( )
A keyboard is plugged in.
f Serial port connector ( )
Cables of peripheral equipment conforming to the RS-232C standard such as modems are
plugged in.
The upper port is Serial Port 1, and the lower port is Serial Port 2.
a
b
c
d
e
f
g
h
i
j

Fujitsu primergy TX150 Specifications

General

Brand	Fujitsu
Model	primergy TX150
Category	Server
Language	English
