7.2.2 Removing the Top Cover of the Rackmount Type
When the Rackmount Conversion kit (optional) is used, remove the top cover. The top cover of the
rackmount type corresponds to the side cover of the tower type.
1 Open the rack door.
J"1.4.2 Opening the Rack Door" (pg.32)
2 Remove all cables connected to the server.
3 Remove the retaining screws used to fasten the server to the rack.
4 Slide the server.
Hold the handles from inside and pull the server out toward you until it clicks, so that it locks in
place on the rails on both sides.
5 Remove the top cover.
The procedures for removing the top cover is the same as that for removing the side cover.
Remove the screws on the rear side. Slowly slide the top cover to the rear side, and then remove
it from the server.

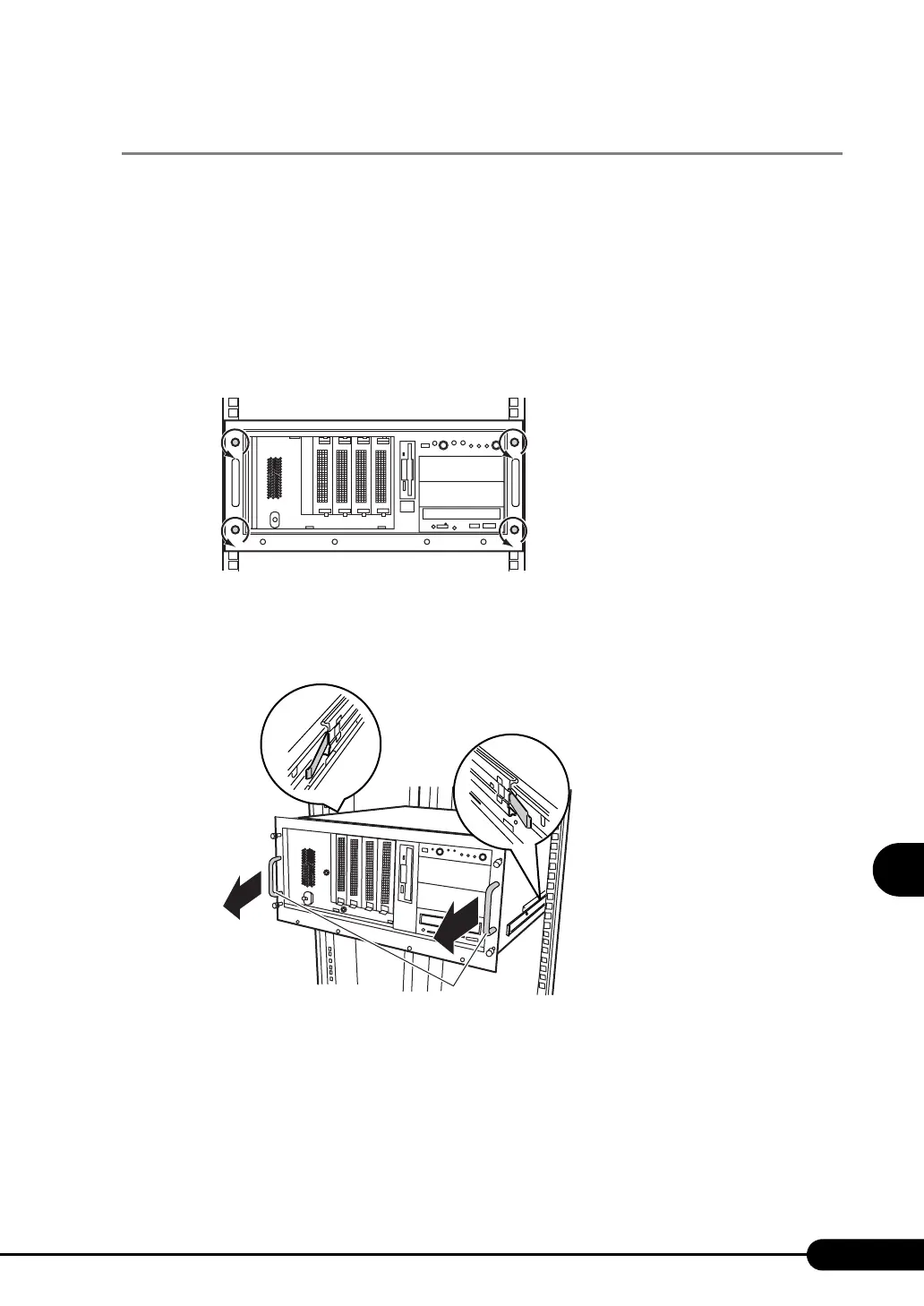

Lock
