3. HOW TO MANAGE CHARTS
3-2
4. Find the .pub file then click the [Open] button. The [Public Key] dialog box reap-
pears.

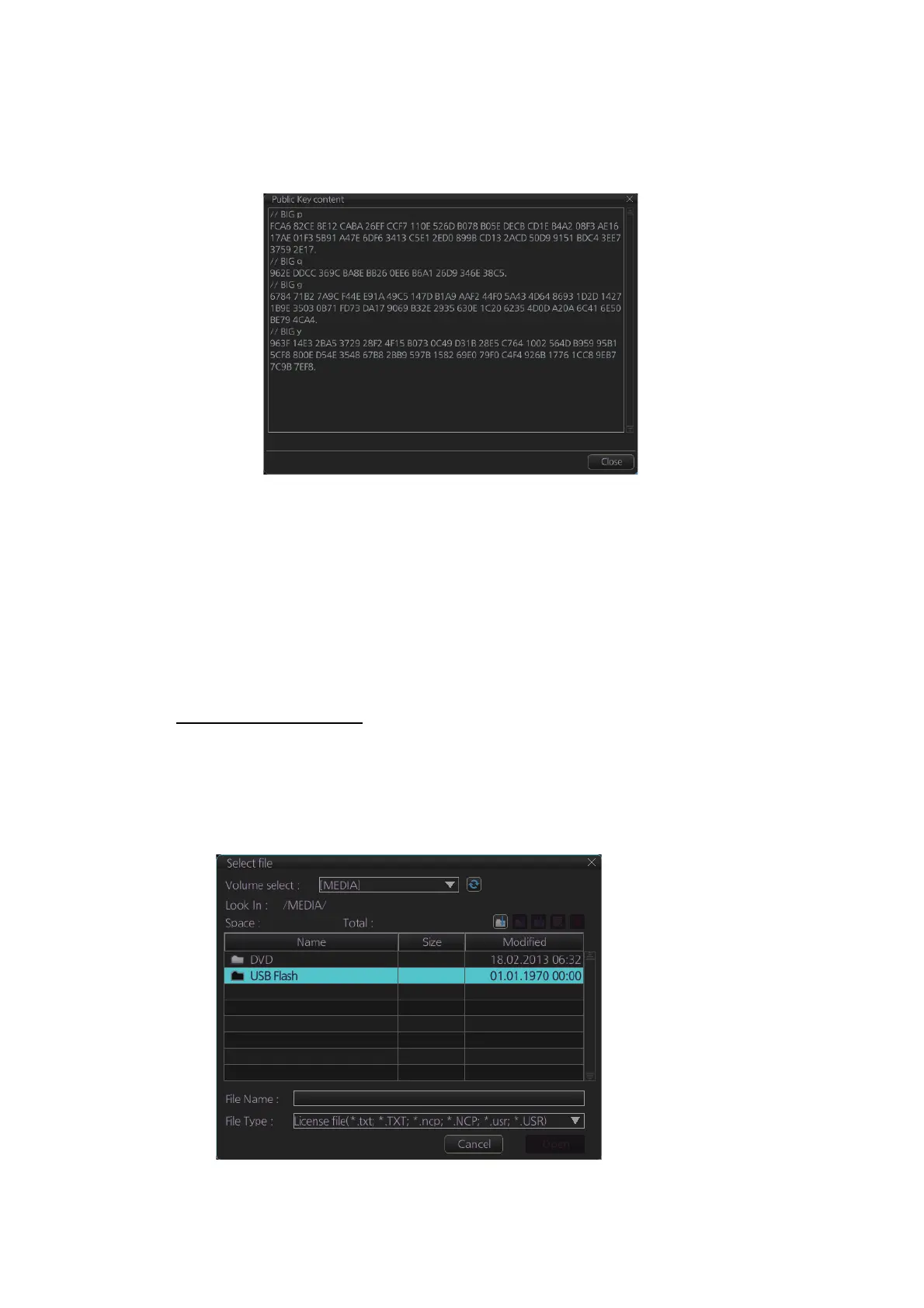

5. Click the [Display Content] button on the [Public Key] dialog box to show the dis-
play contents.
6. Click the [Close] button to close the [Public Key] dialog box.
7. To accept the contents, click the [Activate] button on the [Public Key] dialog box.
3.2 How to Install ENC Licenses, Charts
Install your ENC licenses and charts, in that order.
3.2.1 How to install an ENC license
Automatic installation
1. Set the medium (DVD, USB flash memory, etc.) that contains the ENC license.
2. Get into the Chart maintenance mode then click the [License] button on the
InstantAccess bar
™
to show the [Licenses] dialog box.
3. Click the [Import Licenses] button.
4. Select the medium, or folder, that contains the license then click the [Open] but-
ton.
