CHAPTER 4: INTERFACES

469 MOTOR MANAGEMENT RELAY – INSTRUCTION MANUAL 4–11

4.2.2 Hardware

Communications from the EnerVista 469 Setup to the 469 can be accomplished three

ways: RS232, RS485, and Ethernet communications. The following figures illustrate typical

connections for RS232 and RS485 communications. For Ethernet connection details

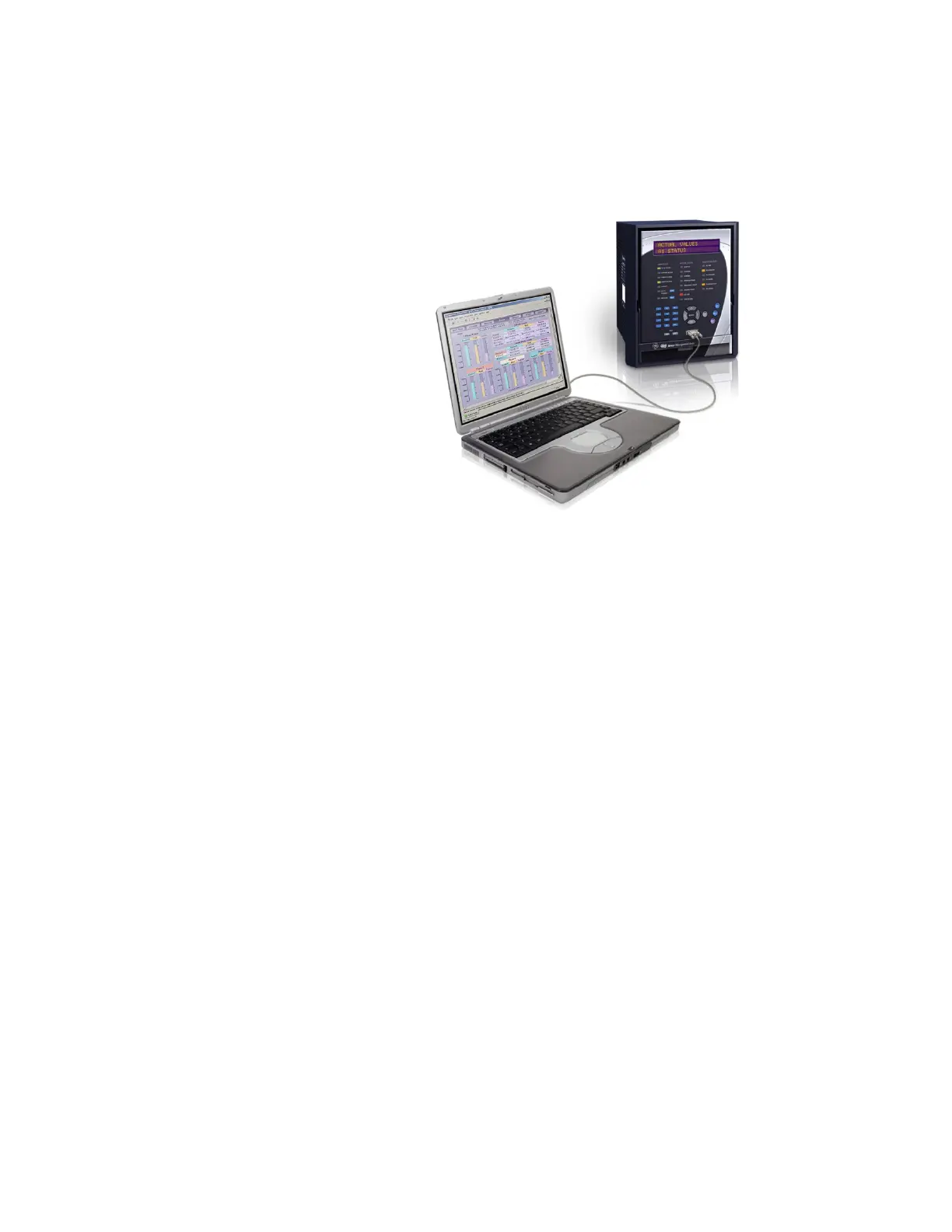

FIGURE 4–2: Communications using The Front RS232 Port
