GE 469 User Manual

CHAPTER 3: INSTALLATION
469 MOTOR MANAGEMENT RELAY – INSTRUCTION MANUAL 3–3
The unit label details the following information: model number, type, serial number,
manufacture date, phase current inputs, special notes, overvoltage category, insulation
voltage, pollution degree, control power, and output contact rating.

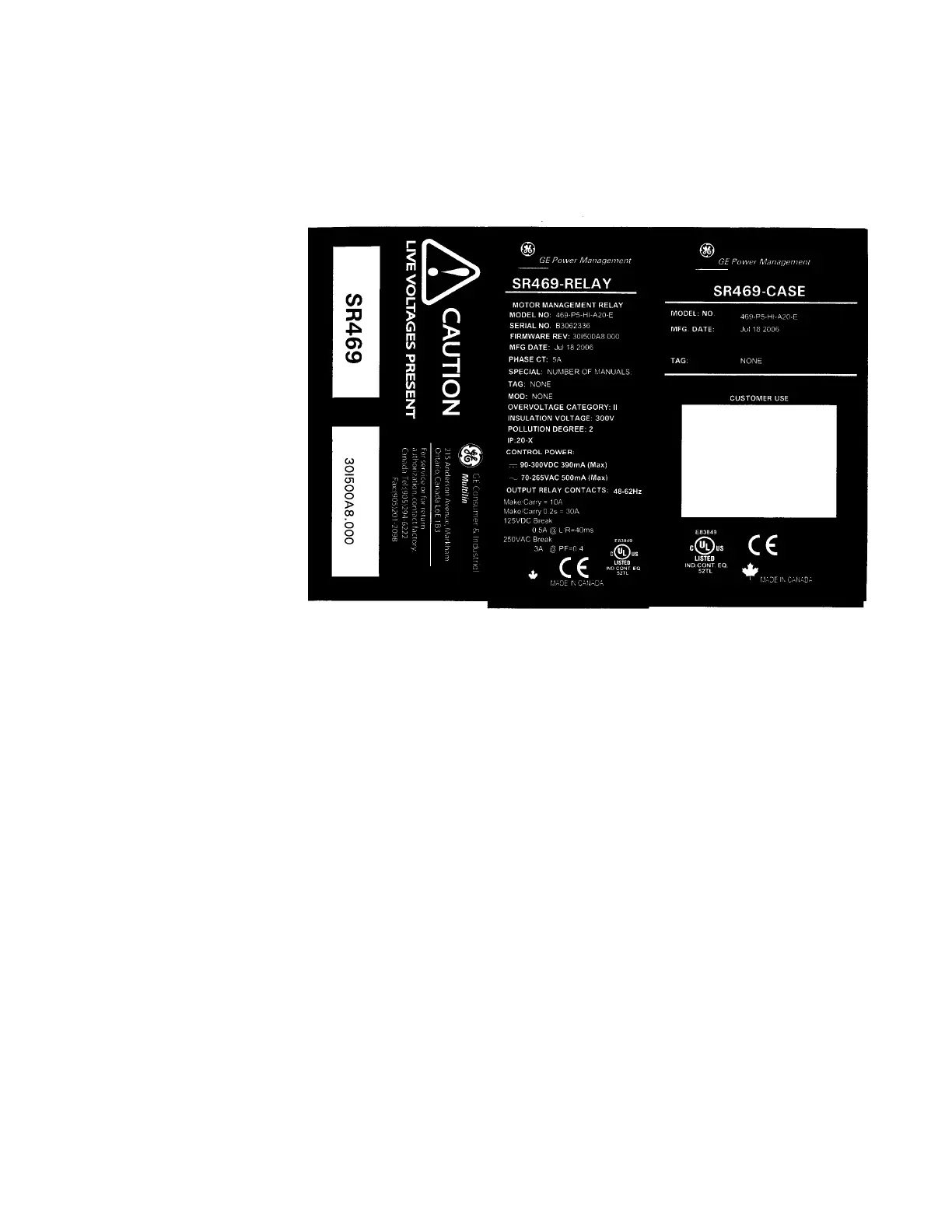

FIGURE 3–3: Case and Unit Identification Labels
3.1.3 Installation
The 469 case, alone or adjacent to another SR-series unit, can be installed in the panel of a
standard 19-inch rack (see below for panel cutout dimensions). Provision must be made
when mounting for the front door to swing open without interference to, or from, adjacent
equipment. Normally the 469 unit is mounted in its case when shipped from the factory,
and should be removed before mounting the case in the supporting panel. Unit withdrawal
is described in the next section.
