CHAPTER 5: SETTINGS
The 469 measures motor demand for several parameters (current, kW, kvar, and kVA).
These values may be of interest for energy management programs where processes may
be altered or scheduled to reduce overall demand on a feeder.

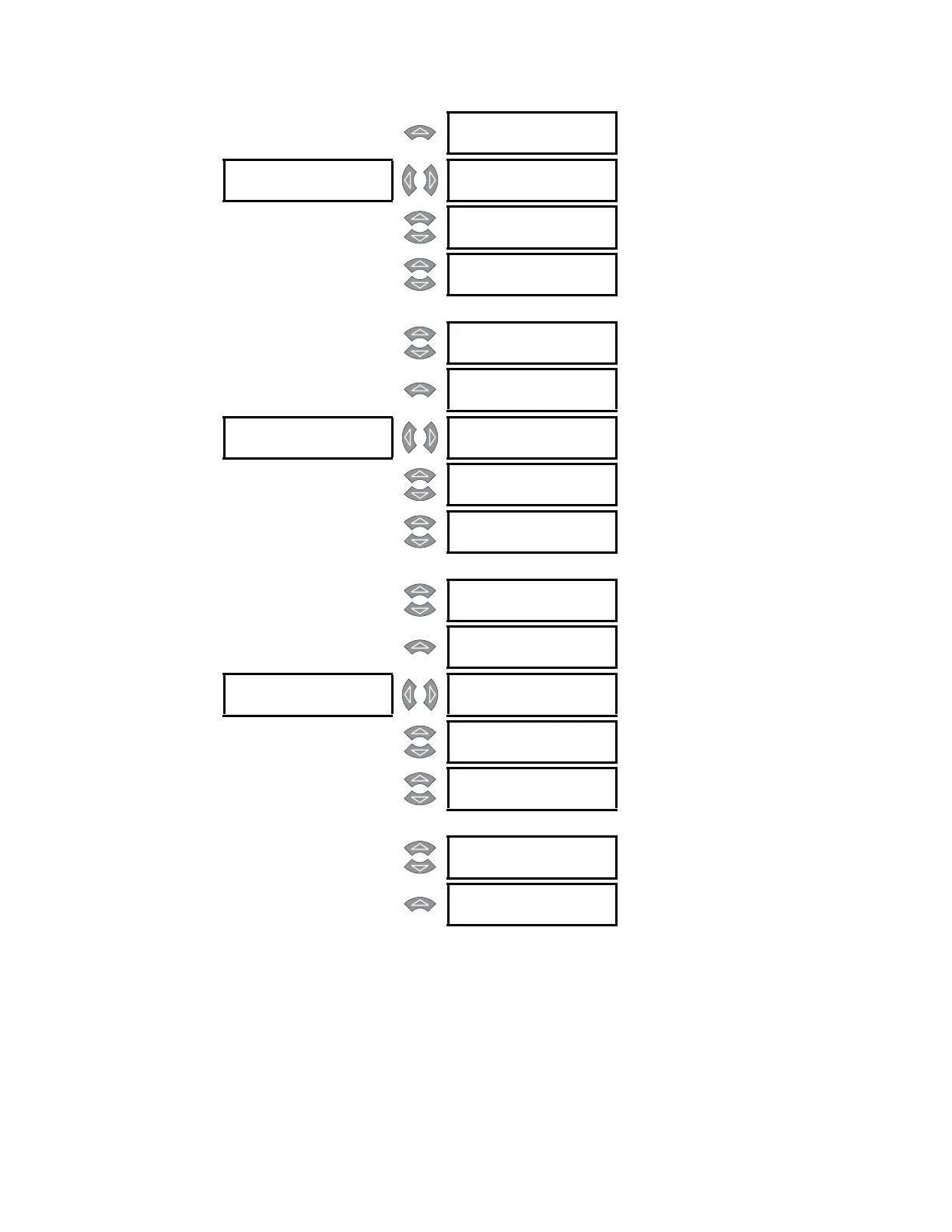

Demand is calculated as follows. Every minute, an average magnitude is calculated for
current, +kW, +kvar, and kVA based on samples taken every 5 seconds. These values are
stored in a FIFO (first in, first out) buffer. The buffer size is dictated by the settings demand
MESSAGE
CURRENT DEMAND
ALARM EVENTS: Off
Range: On, Off
 kW
DEMAND [Z]
kW DEMAND
PERIOD: 15 min.
Range: 5 to 90 min. in steps of 1
MESSAGE
kW DEMAND
ALARM: Off
Range: Off, Latched, Unlatched
MESSAGE
ASSIGN ALARM
RELAYS:
Range: Alarm, Alarm & Auxiliary2,
Alarm & Aux2 & Aux3, Alarm &
Auxiliary3, Auxiliary2, Aux2 &
Aux3, Auxiliary3
MESSAGE
kW DEMAND
LIMIT: 100 kW
Range: 1 to 50000 kW in steps of 1
MESSAGE
kW DEMAND
ALARM EVENTS: Off
Range: On, Off
 kvar
DEMAND [Z]
kvar DEMAND
PERIOD: 15 min.
Range: 5 to 90 min. in steps of 1
MESSAGE
kvar DEMAND
ALARM: Off
Range: Off, Latched, Unlatched
MESSAGE
ASSIGN ALARM
RELAYS:
Range: Alarm, Alarm & Auxiliary2,
Alarm & Aux2 & Aux3, Alarm &
Auxiliary3, Auxiliary2, Aux2 &
Aux3, Auxiliary3
MESSAGE
kvar DEMAND
LIMIT: 100 kvar
Range: 1 to 50000 kvar, step 1
MESSAGE
kvar DEMAND
ALARM EVENTS: Off
Range: On, Off
 kVA
DEMAND [Z]
kVA DEMAND
PERIOD: 15 min.
Range: 5 to 90 min. in steps of 1
MESSAGE
kVA DEMAND
ALARM: Off
Range: Off, Latched, Unlatched
MESSAGE
ASSIGN ALARM
RELAYS:
Range: Alarm, Alarm & Auxiliary2,
Alarm & Aux2 & Aux3, Alarm &
Auxiliary3, Auxiliary2, Aux2 &
Aux3, Auxiliary3
MESSAGE
kVA DEMAND
LIMIT: 100 kVA
Range: 1 to 50000 kVA, step: 1
MESSAGE
kVA DEMAND
ALARM EVENTS: Off
Range: On, Off
