4–46 469 MOTOR MANAGEMENT RELAY – INSTRUCTION MANUAL
CHAPTER 4: INTERFACES
4.6.6 Modbus User Map
The EnerVista 469 Setup software provides a means to program the 469 User Map
(Modbus addresses 0180h to 01F7h). Refer to GE Publication GEK-106491C: 469
Communications Guide for additional information on the User Map.
Z Select a connected device in EnerVista 469 Setup.

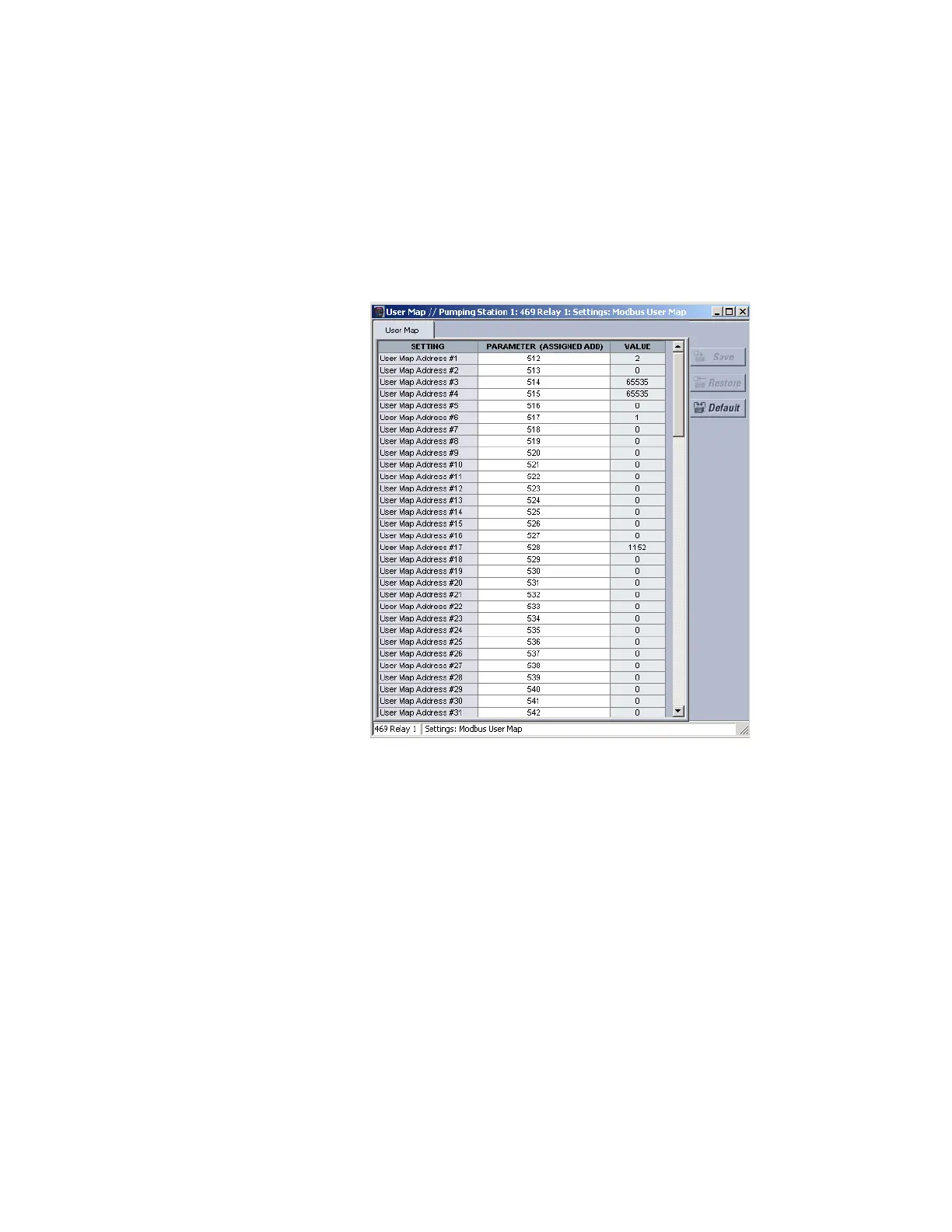

Z Select the Settings > User Map menu item to open the following
window.
This window allows the desired addresses to be written to User Map locations. The
User Map values that correspond to these addresses are then displayed.
4.6.7 Viewing Actual Values
You can view real-time relay data such as input/output status and measured parameters.
From the main window menu bar, selecting Actual Values opens a window with tabs, each
tab containing data in accordance to the following list:
1. Motor and System Status:
• Motor status either stopped, starting, or running. It includes values such
as motor load, thermal capacity used, motor speed, and instantaneous
values of power system quantities.
• The status of digital inputs.
• Last trip information, including values such as cause of last trip, time and
date of trip, motor speed and load at the time of trip, pre-trip
temperature measurements, pre-trip analog inputs values, and pre-trip
instantaneous values of power system quantities.
