CHAPTER 4: INTERFACES

469 MOTOR MANAGEMENT RELAY – INSTRUCTION MANUAL 4–49

4.7 Using EnerVista Viewpoint with the 469

4.7.1 Plug and Play Example

EnerVista Viewpoint is an optional software package that puts critical 469 information

onto any PC with plug-and-play simplicity. EnerVista Viewpoint connects instantly to the

469 via serial, ethernet or modem and automatically generates detailed overview,

metering, power, demand, energy and analysis screens. Installing EnerVista Launchpad

(see previous section) allows the user to install a fifteen-day trial version of EnerVista

Viewpoint. After the fifteen day trial period you will need to purchase a license to continue

using EnerVista Viewpoint. Information on license pricing can be found at http://

www.enervista.com.

Z Install the EnerVista Viewpoint software from the GE EnerVista CD.

Z Ensure that the 469 device has been properly configured for either serial

or Ethernet communications (see previous sections for details).

Z Click the Viewpoint window in EnerVista to log into EnerVista

Viewpoint.

At this point, you will be required to provide a login and password if

you have not already done so.

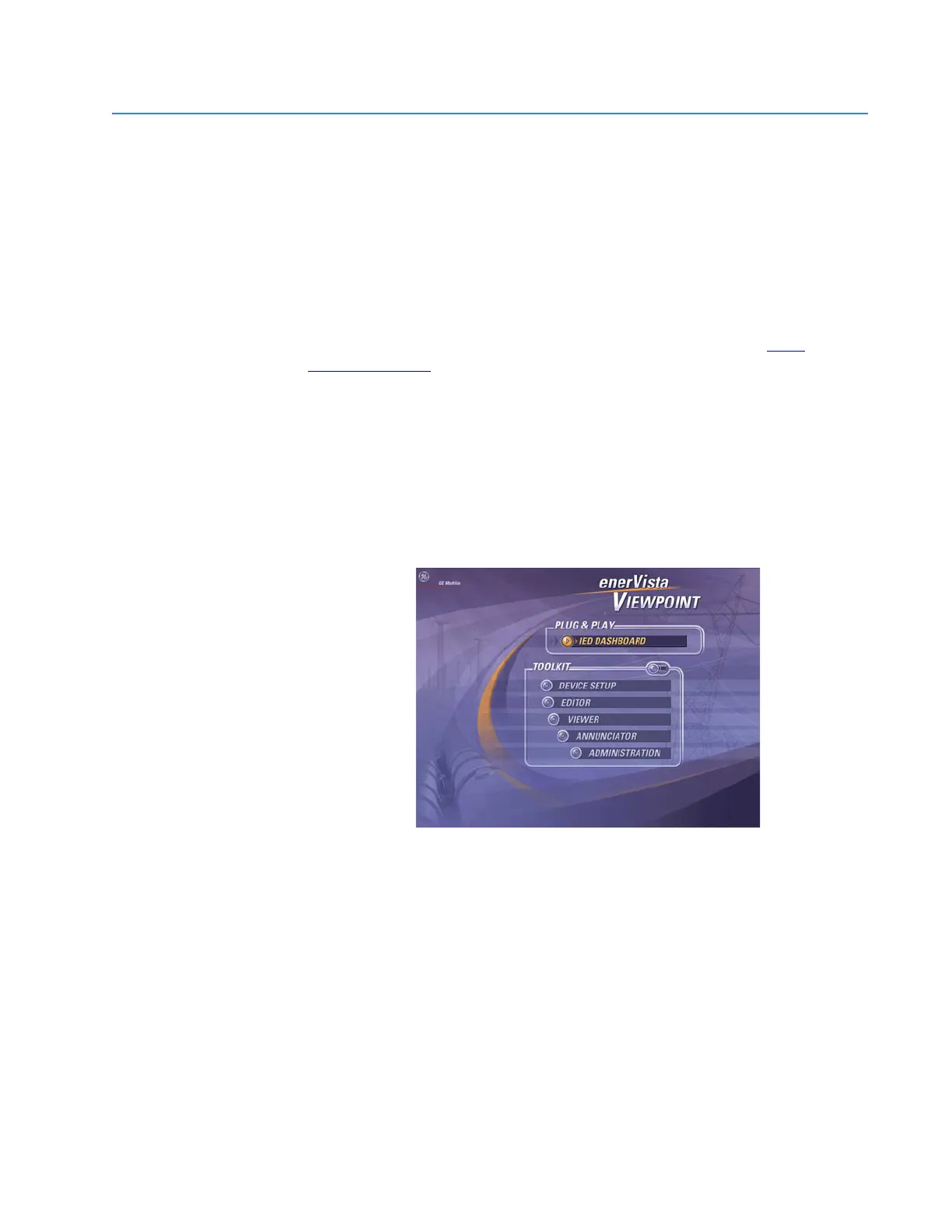

FIGURE 4–11: EnerVista Viewpoint Main Window

Z Click the Device Setup button to open the Device Setup window.

Z Click the Add Site button to define a new site.

Z Enter the desired site name in the Site Name field.

If desired, a short description of site can also be entered along with the

display order of devices defined for the site.

Z Click the OK button when complete.

The new site will appear in the upper-left list in the EnerVista 469 Setup

window.

Z Click the Add Device button to define the new device.
