4–18 469 MOTOR MANAGEMENT RELAY – INSTRUCTION MANUAL
CHAPTER 4: INTERFACES
As indicated by the window, the Quick Connect feature quickly connects the EnerVista 469
Setup software to a 469 front port with the following settings: 9600 baud, no parity, 8 bits,
1 stop bit. Select the PC communications port connected to the relay and press the
Connect button.
The EnerVista 469 Setup software will display a window indicating the status of

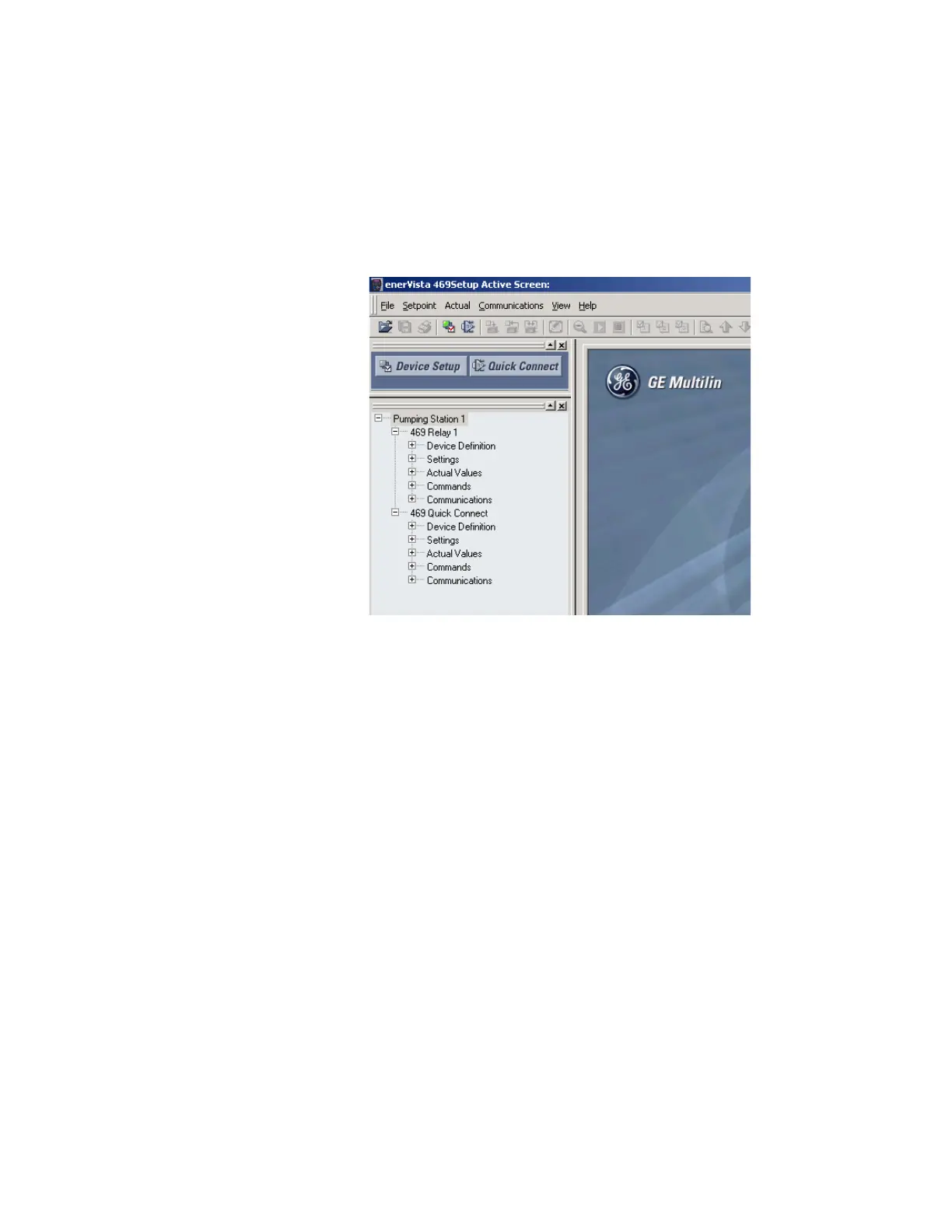

communications with the relay. When connected, a new Site called “Quick Connect” will
appear in the Site List window. The properties of this new site cannot be changed.
The 469 Site Device has now been configured via the Quick Connect feature for serial
communications. Proceed to Connecting to the Relay on page 4–19 to begin
communications.
4.3.3 Configuring Ethernet Communications
Before starting, verify that the Ethernet cable is properly connected to the RJ-45 Ethernet
port.
Z Install and start the latest version of the EnerVista 469 Setup software
(available from the GE enerVista CD). See the previous section for the
installation procedure.
Z Click on the Device Setup button to open the Device Setup window and
click the Add Site button to define a new site.
Z Enter the desired site name in the Site Name field. If desired, a short
description of site can also be entered along with the display order of
devices defined for the site. In this example, we will use “Pumping
Station 2” as the site name. Click the OK button when complete.
The new site will appear in the upper-left list.
Z Click the Add Device button to define the new device.
Z Enter the desired name in the Device Name field and a description
(optional).
