4–40 469 MOTOR MANAGEMENT RELAY – INSTRUCTION MANUAL
CHAPTER 4: INTERFACES
recorder. The event record will provide additional information on the cause and the system
conditions at the time of the event. Additional information on how to download and save
events is shown in Event Recorder on page 4–45.

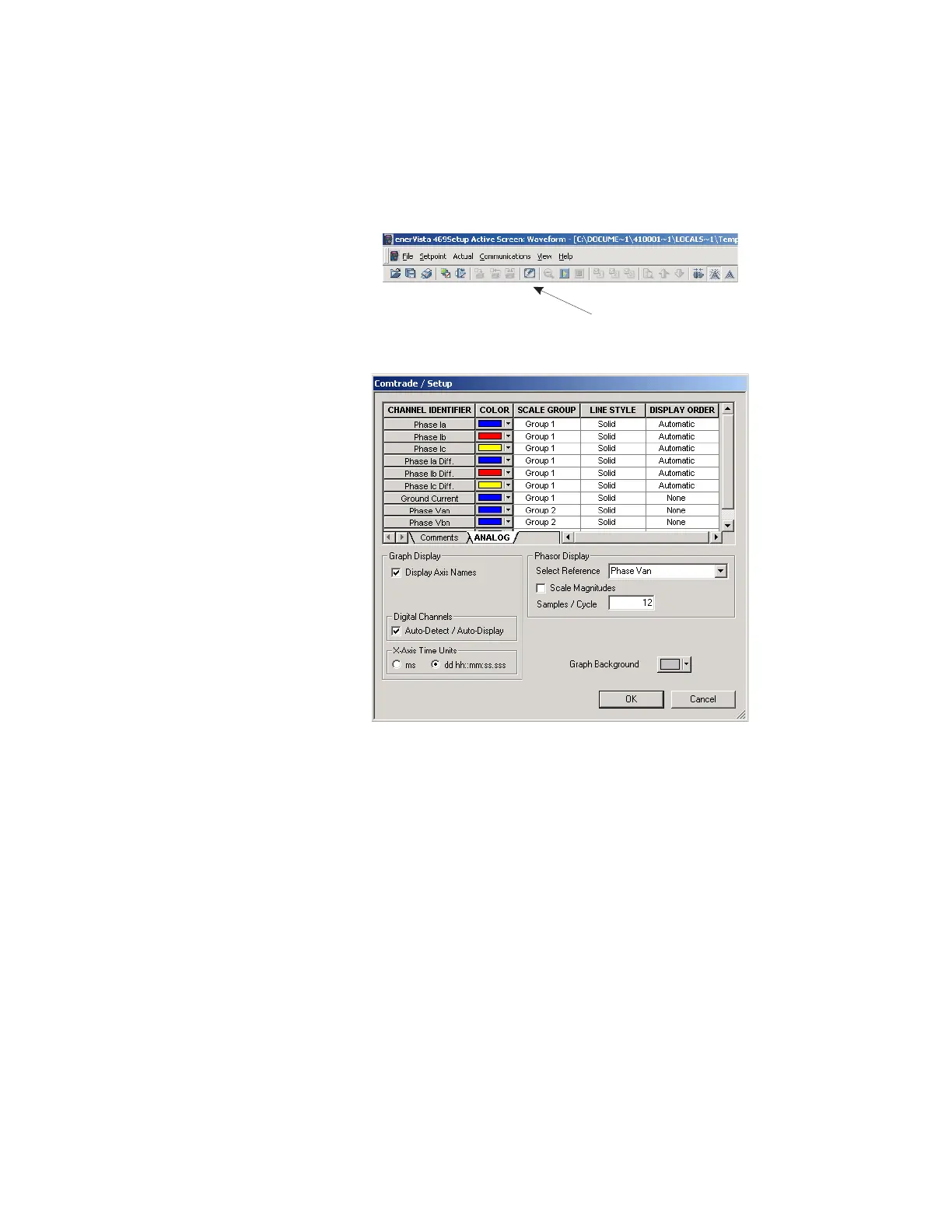

Z From the window main menu bar, press the Preference button to change
the graph attributes.
The following window will appear:
Z Change the color of each graph as desired.
Z Select other options as required, by checking the appropriate boxes.
Z Click OK to store these graph attributes, and to close the window.
The Waveform Capture window will reappear with the selected graph attributes available
for use.
4.6.3 Phasors
The EnerVista 469 Setup software can be used to view the phasor diagram of three-phase
currents and voltages. The phasors are for: phase voltages Va, Vb, and Vc; phase currents
Ia, Ib, and Ic.
With the EnerVista 469 Setup software running and communications established,
Z Open the Actual Values > Metering Data window.
Z Click on the Phasors tab.
