GE HEALTHCARE
D
IRECTION 5305880-100, REVISION 3 LOGIQ™ 100 PRO SERVICE MANUAL
Chapter 7 - Diagnostics/Troubleshooting Page 7-7
DAVINCI Board Tests (Contd.,)
Erase Flash memory
When this option is run all the images stored in the flash is erased.

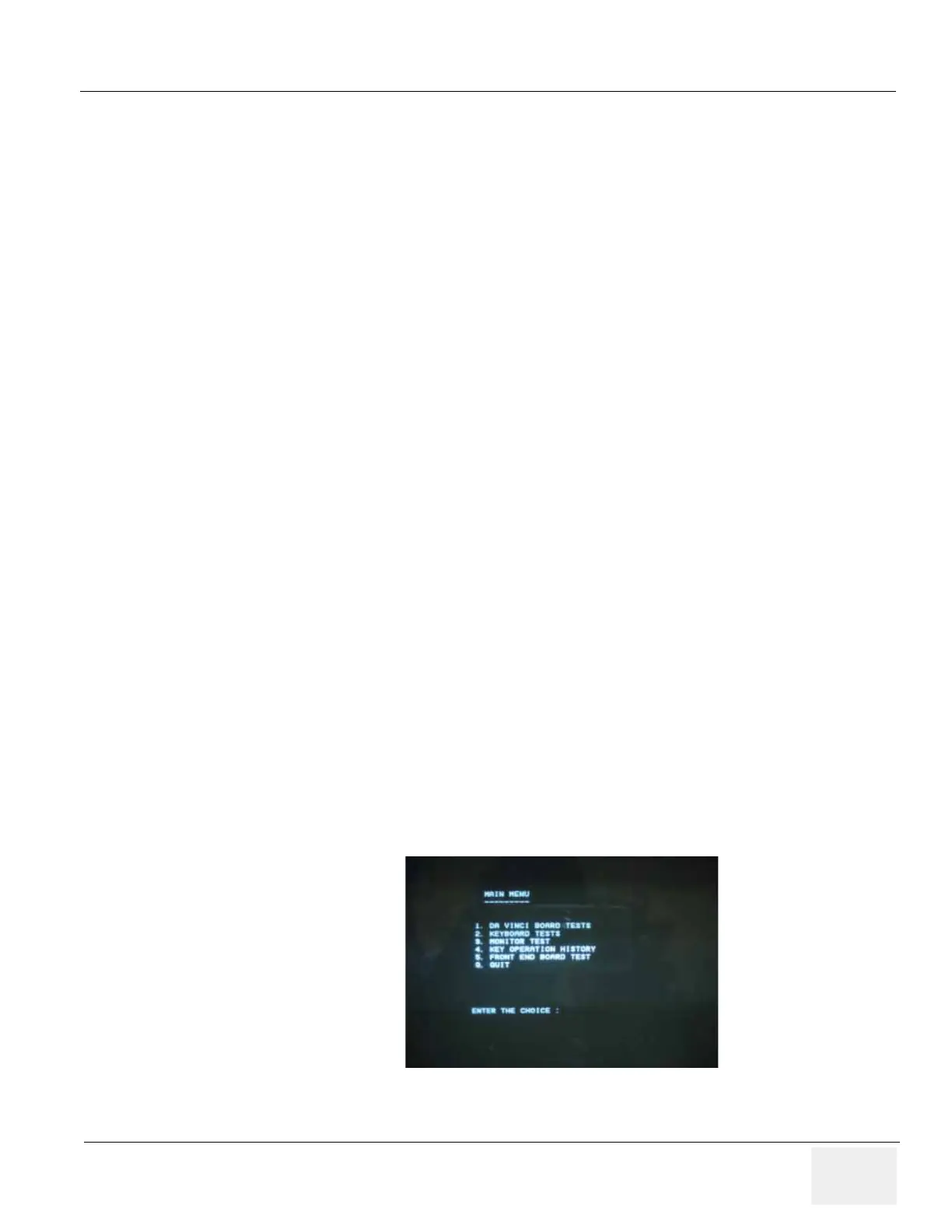

Main Menu
This option is used to return to the main menu.
Quit
This option is used to come out of the diagnostic and enter the application mode.
Image memory tests:
The image memory is tested in the same way as the memories on the CPU board
Cine memory test
All the Cine frames have been tested one by one by writing 4 test patterns and then reading the
same.
Main menu
This option is used to return to the main menu
Quit
This option is used to come out of the diagnostic mode and enter the application mode.
7-2-2 FEB Test for LOGIQ™ 100 PRO
When self test for the FEB is selected, the DPRAM on the FEB Board will be written on and read
back. Read data is checked for validity. This will prove the communication between FEB & Davinci
boards.
All Tests
This option is used to run all tests in the menu. Once all the tests are completed, press any key to
exit.
State: RELEASE - Document is released and under formal Change Control. Changes are subject to the ECR/ECO Process.
See the GEHC Myworkshop System to determine the status of this document.
Approved Document - 5305880-100TPH_r3.pdf Page 112 of 197
