IRECTION 5305880-100, REVISION 3 LOGIQ™ 100 PRO SERVICE MANUAL
- Page 5-3

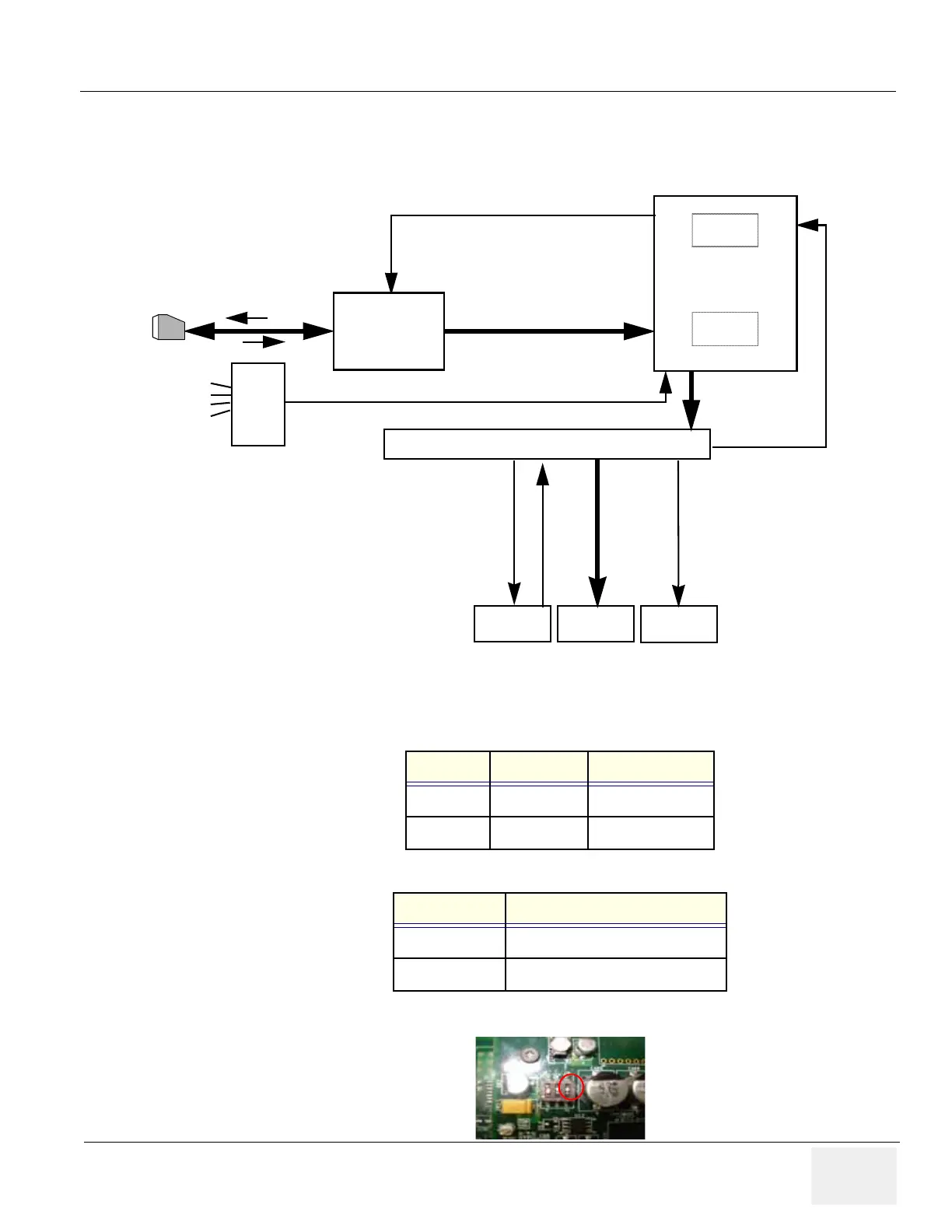

Section 5-3 Block Diagram
Block Diagram
Dip Switch settings in DAVINCI Board
Figure 4-6 Block Diagram, LOGIQ™ 100 PRO (General)
External I/O
Display
Probe
MonitorVCR
Patient
I/O
Patient
Isolated
Sensors
Printers
Control
Davinciboard
TX
RX
Front End Board
BUS
ECO Signal
COMPOSITE
Signal
VGA
Signal
USB
Signal
TRANSMIT Signal
RECIEVE Signal
DIP 1 DIP 2 MODE
1 0 Normal mode
0 1 Service mode
Table 4-7
DIP 3 MODE
0 NTSC
1 PAL
Table 4-8 NTSC & PAL settings
State: RELEASE - Document is released and under formal Change Control. Changes are subject to the ECR/ECO Process. See the GEHC Myworkshop System to determine the status of this document.
Approved Document - 5305880-100TPH_r3.pdf Page 90 of 197
