GE HEALTHCARE
D
IRECTION 5305880-100, REVISION 3 LOGIQ™ 100 PRO SERVICE MANUAL
Page 3-6 Section 3-5 - Completing the Installation
Assembling LOGIQ™ 100 PRO (Contd.,)
Section 3-5 Completing the Installation
3-5-1 Transducer Connection
1.) Connect a transducer to transducer receptacle as follows,Refer to fig 3-4
A.) Ensure that the transducer twist lock lever points towards the top of the probe
connector.
B.) Insert the transducer connector on the receptacle guide pin until it touches the
receptacle mating surface.
C.) Twist the transducer twist lock lever in the clockwise direction to lock it in place. Twist
the lever in anti clockwise direction to disconnect the transducer.
Note: It is not necessary to turn OFF power to connect or disconnect a transducer.
2.) Connect the main power cable to a hospital grade power receptacle with the proper rated
voltage. Never use a three-to-two prong adapter; this defeats the safety ground.

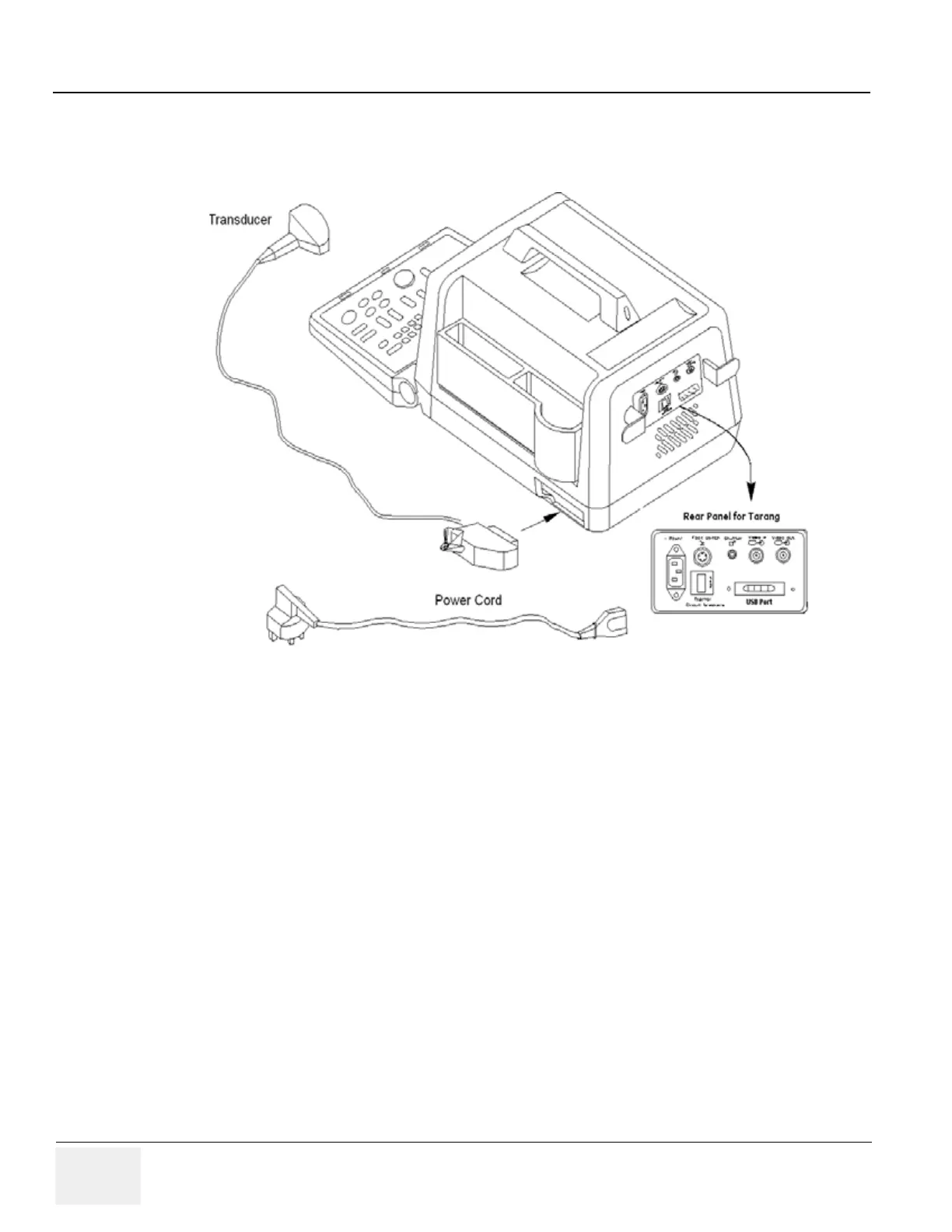

Figure 3-4 Assembling LOGIQ™ 100 PRO
State: RELEASE - Document is released and under formal Change Control. Changes are subject to the ECR/ECO Process.
See the GEHC Myworkshop System to determine the status of this document.
Approved Document - 5305880-100TPH_r3.pdf Page 51 of 197
