GE HEALTHCARE
D
IRECTION 5305880-100, REVISION 3 LOGIQ™ 100 PRO SERVICE MANUAL
Page 8-24 Section 8-9 - HV Assembly
Section 8-9 HV Assembly
8-9-1 Disassembly/Assembly of HV Assembly
Follow steps below and refer 8-15
1.) Remove Top Cover. Refer.8-2. For FRU Details refer
2.) Remove the Shield Plate.
3.) Remove the cable to the HV Power Supply.
4.) Remove 2 screws on the clamp.
5.) Pull the HV PCB upward (cable has to be removed).
6.) For assembly follow the reverse order.
Table 8-12 Functional tests
Service Manual
Section
Functional Test/ Diagnostic Test Debrief Script
4-2-1 Power ON/ Boot up
Service manual direction 5305880-100,
Section 8-9-1.Equipment passed all
required tests and is ready for use.
4-2-1 Power OFF/ Shut down
4-3 Functional Checks

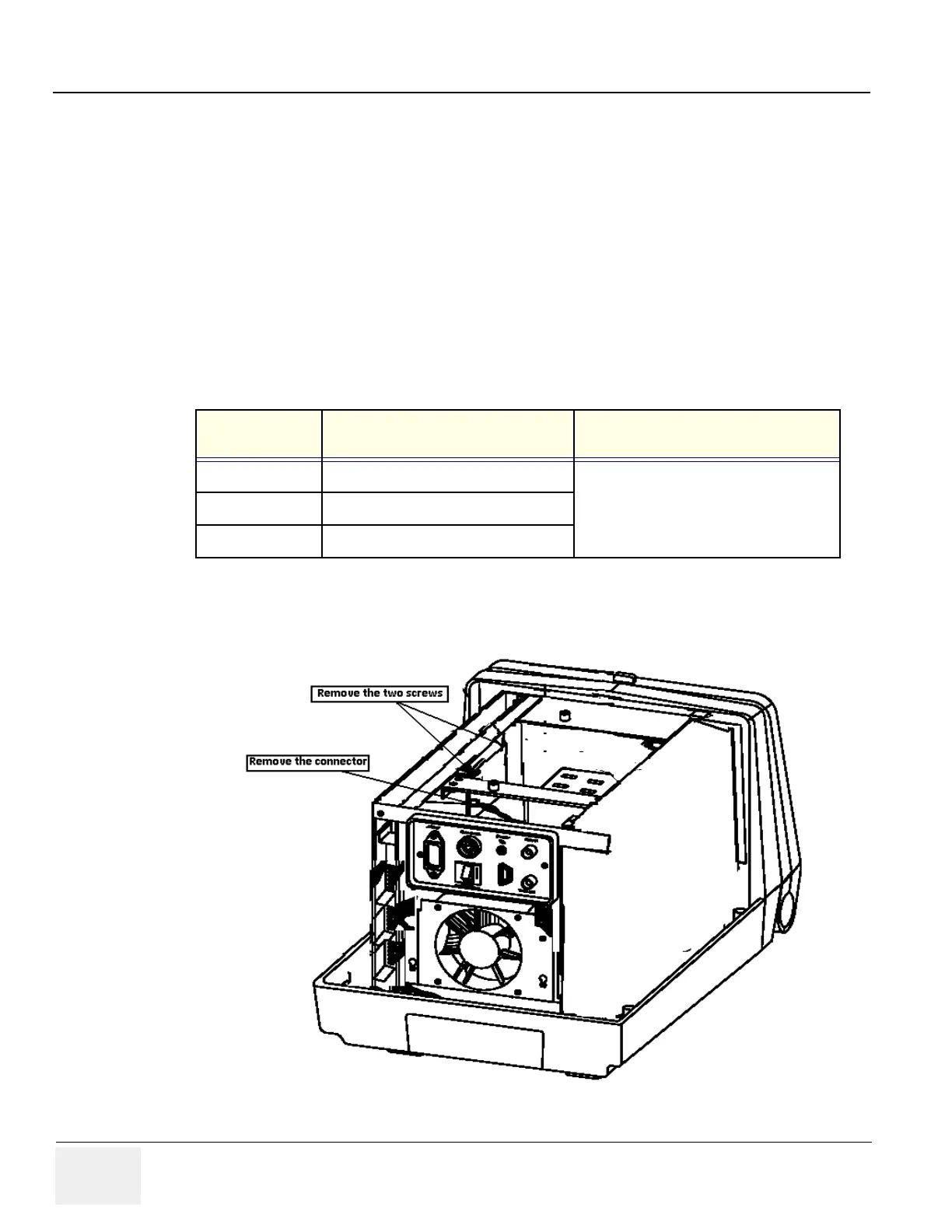

Figure 8-15 Disassembly/Assembly of HV Assembly
State: RELEASE - Document is released and under formal Change Control. Changes are subject to the ECR/ECO Process.
See the GEHC Myworkshop System to determine the status of this document.
Approved Document - 5305880-100TPH_r3.pdf Page 153 of 197
