GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 1 LOGIQ™ 5 SERVICE MANUAL
5 - 14 Section 5-5 - Backend Processor
Section 5-5
Backend Processor
5-5-1 BEP with Intel Motherboard
The Backend Processor processes the data from front end block and stores it in
The main memory and performs scan image reconstruction to display on monitor
Backend Processor(BEP) include ATX smps and UPS battery, motherboard for P4
And Pentium 4 CPU. Main memory capacity is 512Mbytes and the type of memory is
DDR266. The BEP motherboard have capability of AGP graphic functionality and sound and
Ethernet functionality in itself. So this motherboard no need additional AGP video
Card and sound card, Ethernet card. So each slot on motherboard are used for followings
- AGP card Slot : Open
- PCI Slot #1 : Open
- PCI Slot #2 : VIC Card
- PCI Slot #3 : Open
- PCI Slot #4 : PC2IP Card
- PCI Slot #5 : Open
- PCI Slot #6 : Open (Option for Flock of Bird 3D card in future)
- Storage Device :
- Hard Disk Drive
- CD R/W Drive
- Optional MO Drive

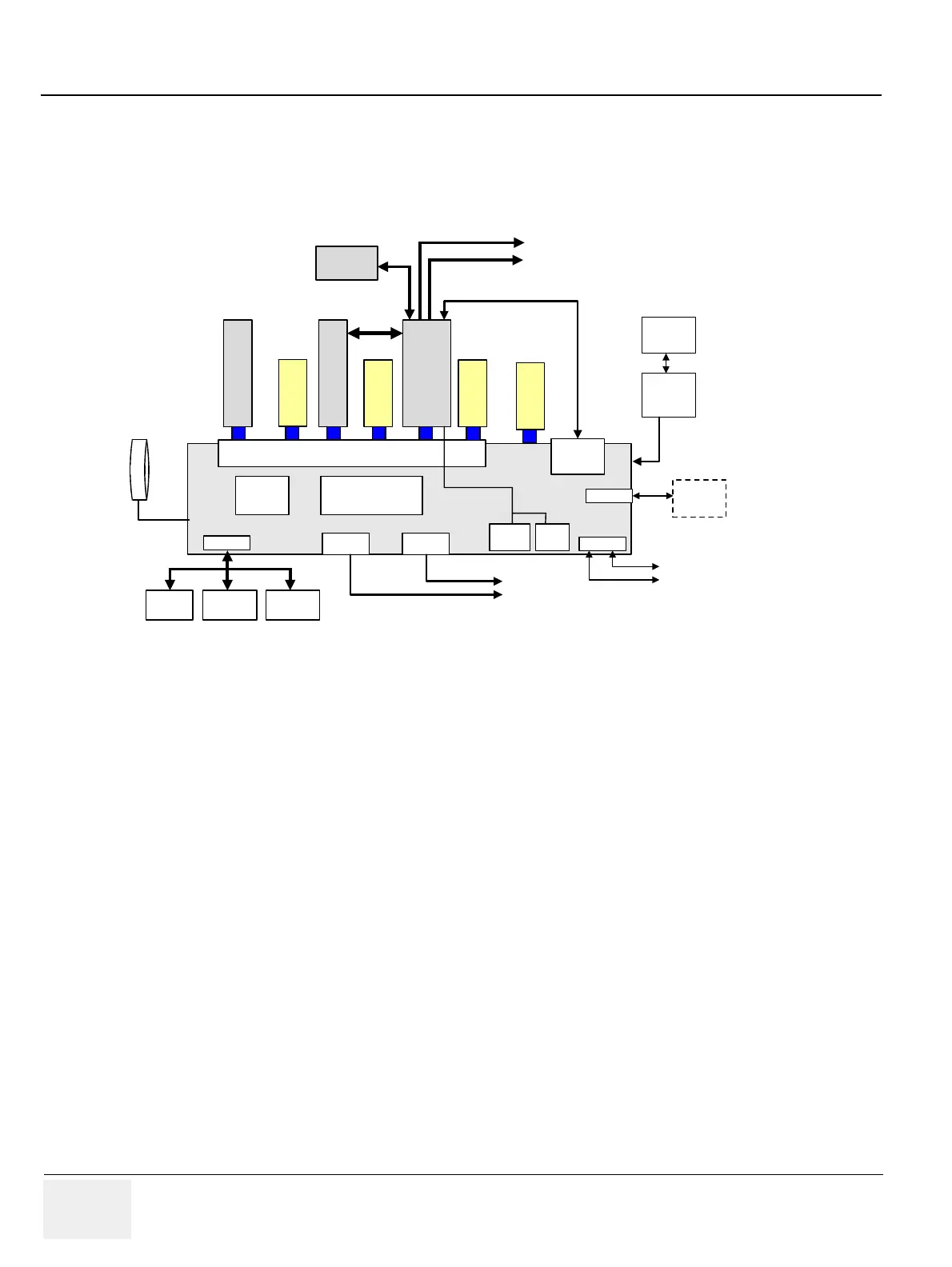

Figure 5-12 BEP with Intel Motherboard
PCI Slots
3D Card(Option)
TBD
PC2IP Card
Open Slot
VIC Card
On B'D
AGP
Patient IO
(Option)
To Monitor
To RAI B'D, RDI B'D in Rear Panel
HDD
LED
PWR
ON
RS232
ATX
Power
Supply
Battery
USB
Modem
for
Insite
OPIO Panel(KeyboardP)
Digital BW Printer
EIDE
HDD
CDRW
Drive
MOD
(Option)
F
A
N
Open Slot
Open Slot
P4
2.0GHz
512MB
PC2100(266MHz)
DDR RAM
Open Slot
Intel Motherboard
Sound LAN
To Rear Panel
