GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-11
8-3-5 Speaker Assy
Purpose: This is a description on how to remove and replace the Speaker Assy.
8-3-5-1 Tools
• Common pillips screwdrivers
8-3-5-2 Needed Manpower
• 1person, 10 minutes + travel
8-3-5-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
• Monitor Cover Set should be removed before proceed. For more information Refer to section 8-3-
3 on page 7.
8-3-5-4 Removal Procedure

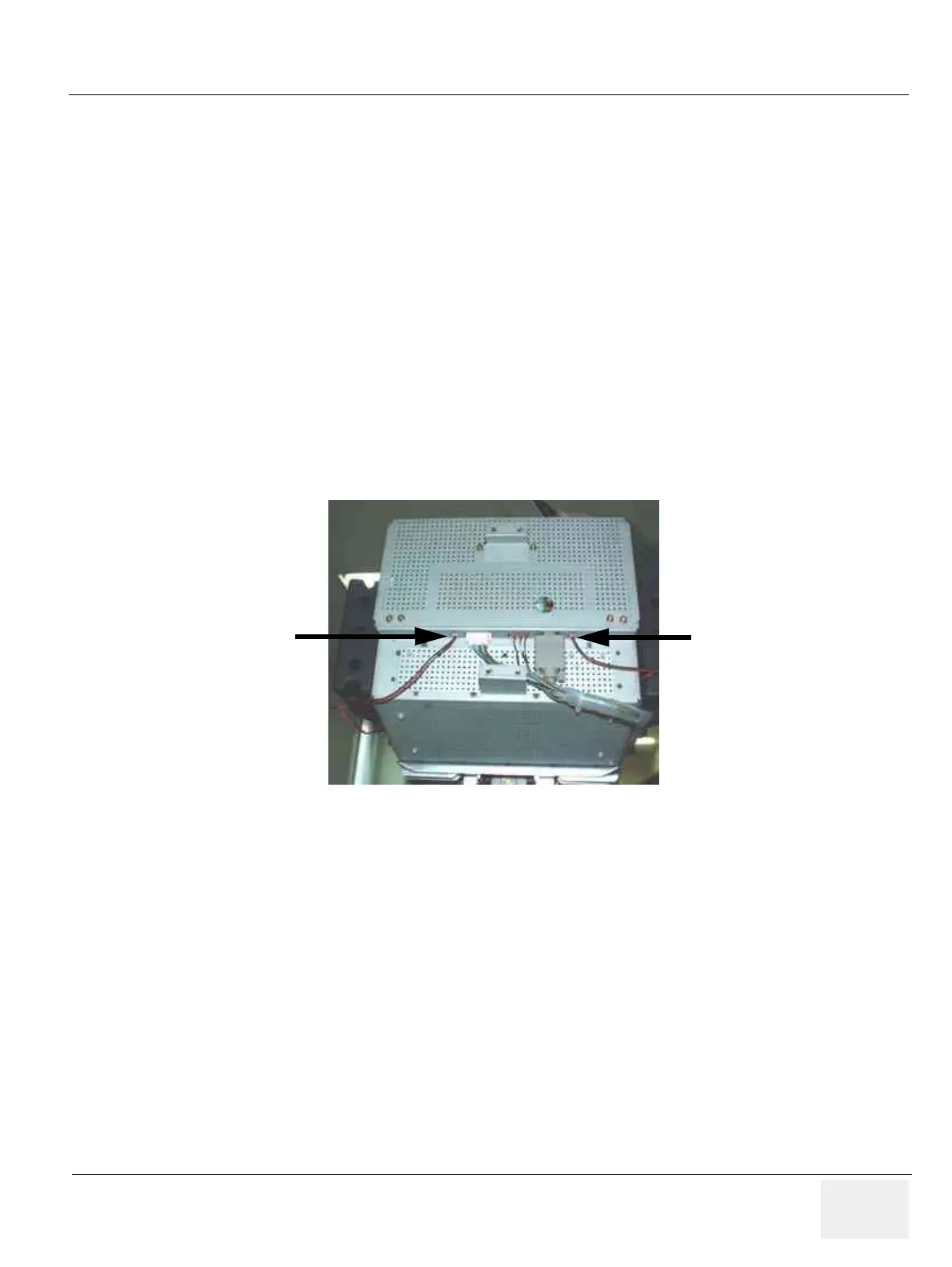

1.) Disconnect two connectors (1-2) from the rear side of the Monitor. Refer to Figure 8-13.
Figure 8-13 Disconnect two connectors
1
2
