GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-82 Section 8-6 - Body Block
8-6-4 Front Caster
Purpose: This is a description on how to remove and replace the Front Caster.
8-6-4-1 Tools
• Common pillips screwdrivers
• Allen/Unbraco wrench
• Lifter (180Kg)
8-6-4-2 Needed Manpower
• 1 persons, 15 minutes + travel
8-6-4-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
• Lift the system before proceed.
8-6-4-4 Removal Procedure
1.) Unscrew eight (8) hexagonal bolts (1-8).
2.) Remove the Front Caster. Refer to Figure 8-84.

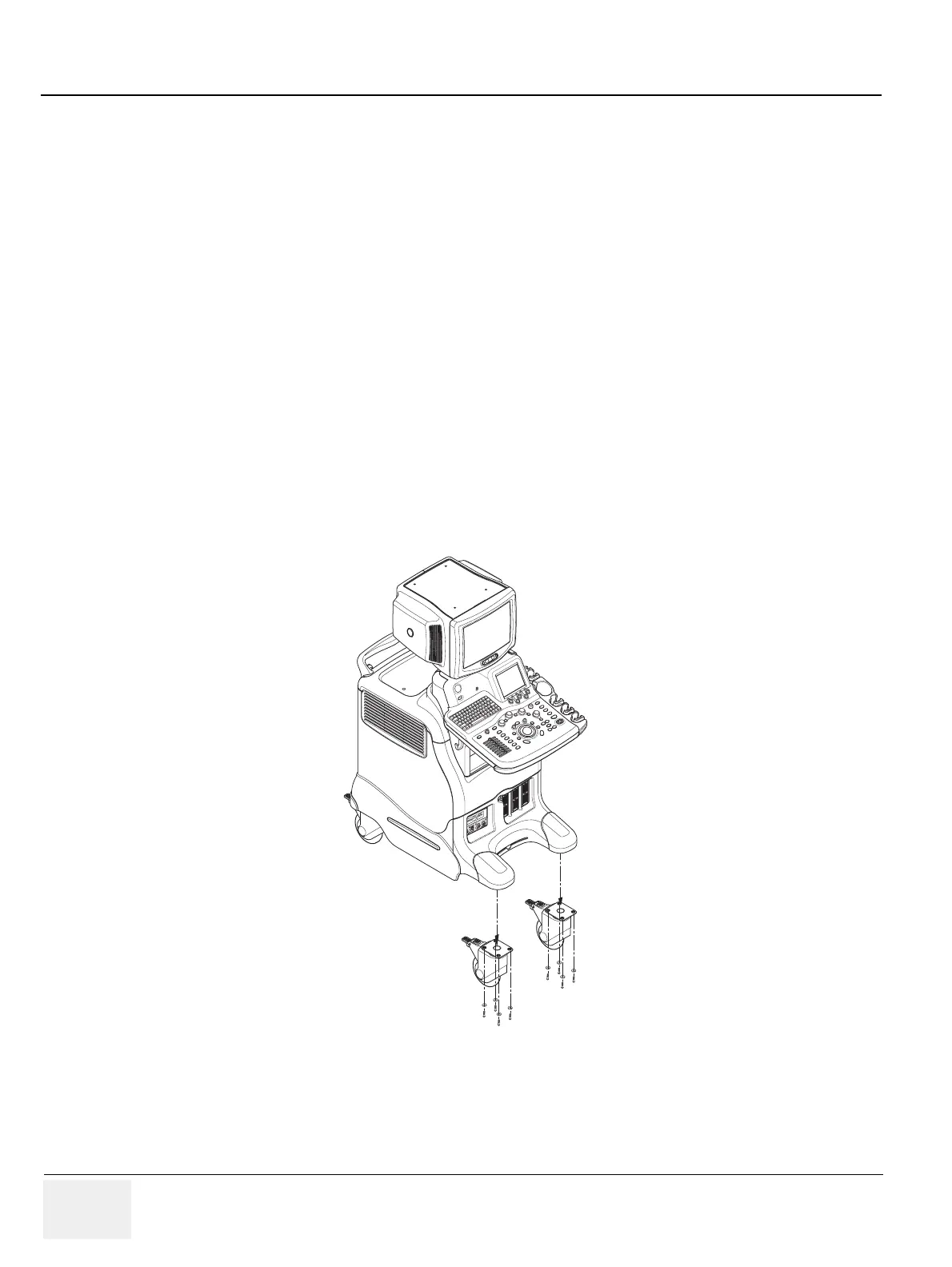

Figure 8-84 Removing the Front Caster
1
2
6
8
7
5
4
3
