GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-62 Section 8-5 - Covers
8-5-13 EMI Cover L
Purpose: This is a description on how to remove and replace the EMI Cover L.
8-5-13-1 Tools
• Common pillips screwdrivers
• Allen/Unbraco wrench
8-5-13-2 Needed Manpower
• 1 person, 5 minutes + travel
8-5-13-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
8-5-13-4 Removal Procedure
1.) Remove the Left Cover. Refer to section 8-5-1 on page 39.
2.) Unscrew seven screws (1-7).
3.) Remove the EMI Cover L. Refer to Figure 8-66.

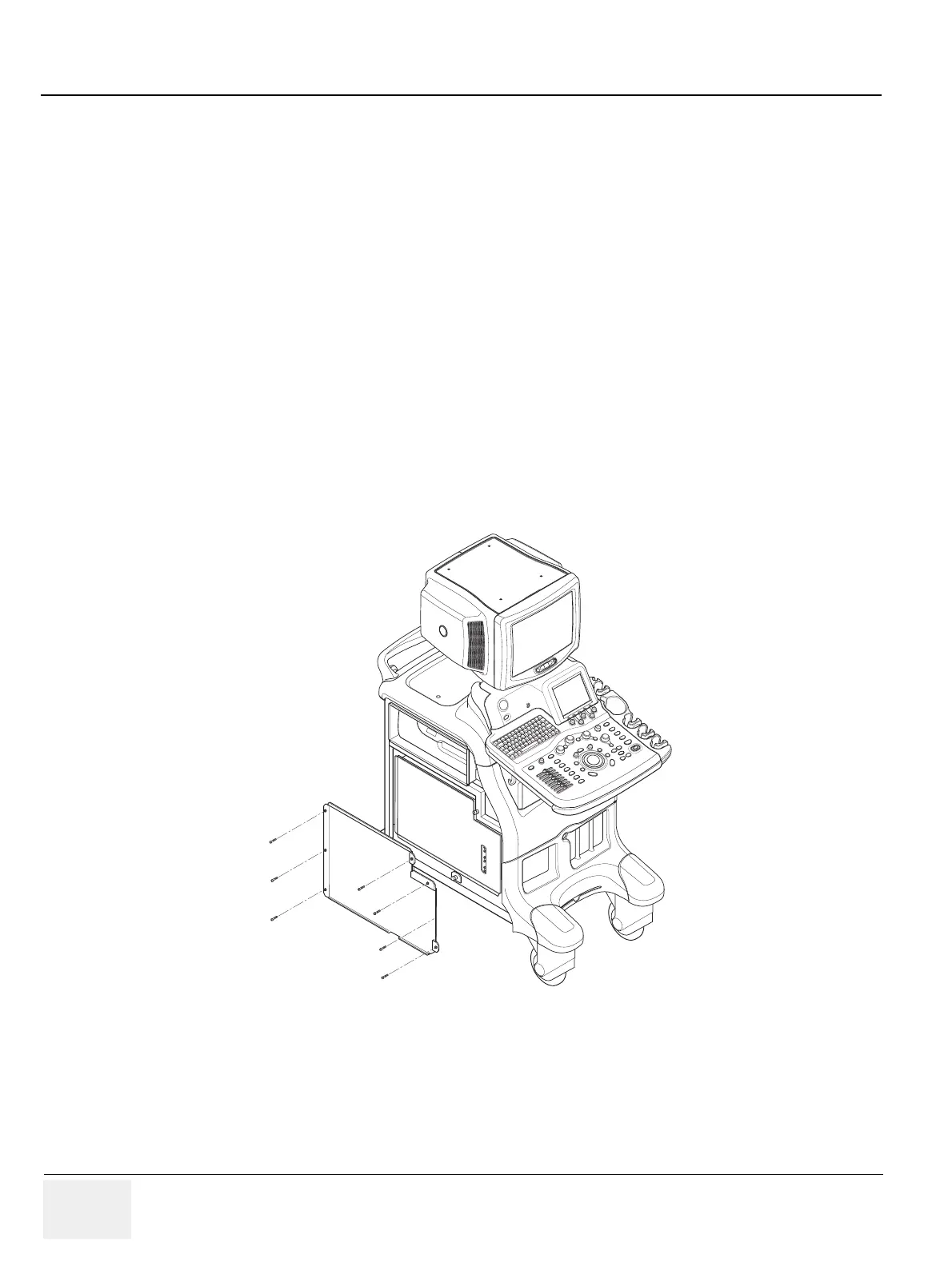

Figure 8-66 Removing the EMI Cover L
1
2
3
4
7
5
6
