GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-73
8-6-2 Rear Panel Assy
Purpose: This is a description on how to remove and replace the Rear Panel Assy.
8-6-2-1 Tools
• Common pillips screwdrivers
• Allen/Unbraco wrench
8-6-2-2 Needed Manpower
• 1 persons, 40 minutes + travel
8-6-2-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
8-6-2-4 Removal Procedure
1.) Remove the Left Cover. Refer to section 8-5-1 on page 39.
2.) Remove the Right Cover. Refer to section 8-5-2 on page 41.
3.) Remove the Rear Cover. Refer to section 8-5-3 on page 43.
4.) Unscrew eight (8) screws (5-12) to remove the EMI rear Bracket. Refer to Figure 8-73.

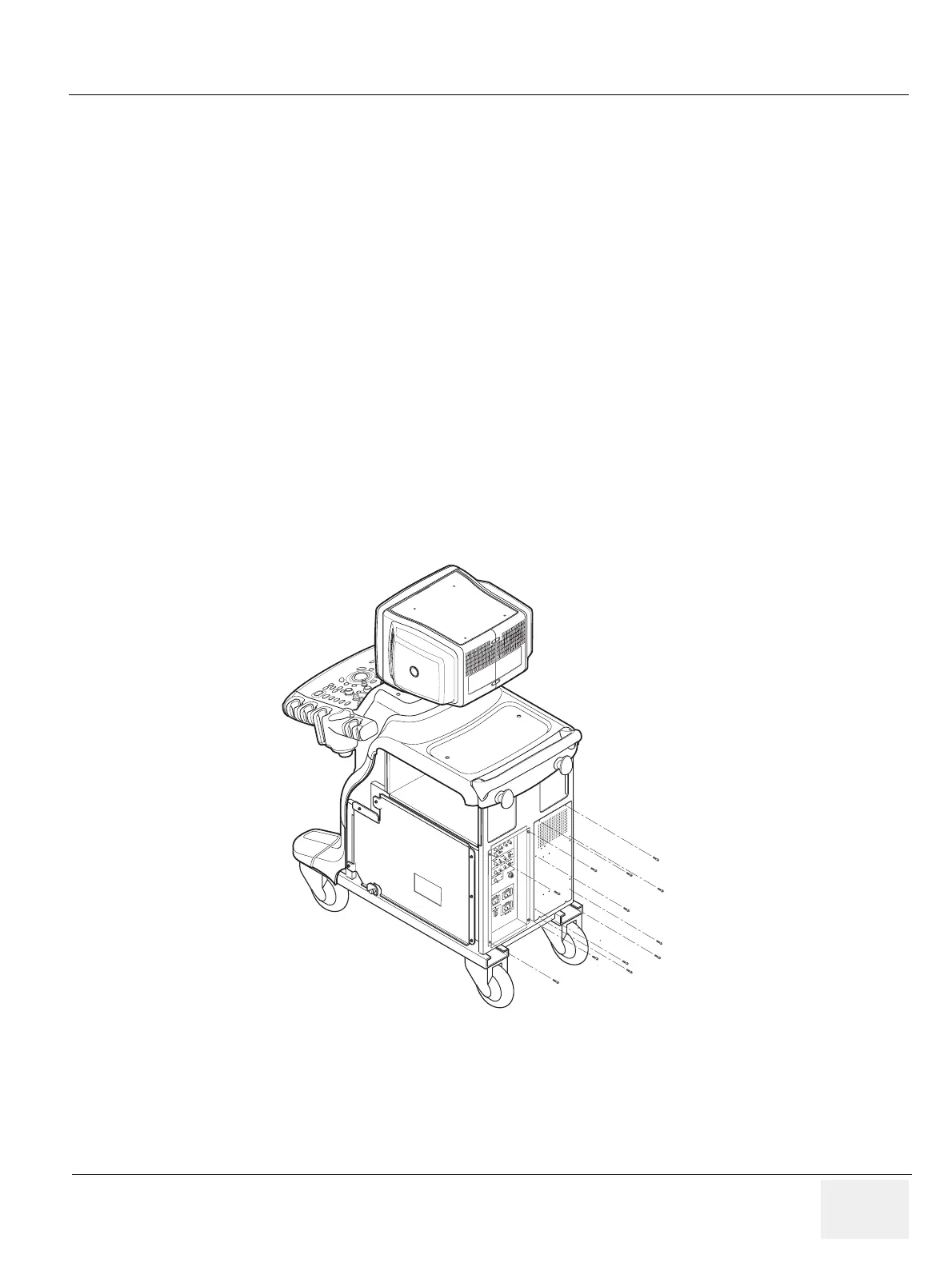

Figure 8-73 Unscrew 8 screws to remove EMI brkt
1
2
1
3
10
6
11
7
12
8
5
9
