Chapter 7 Diagnostics/Troubleshooting 7 - 9
Section 7-6
Common Diagnostics
Common Diagnostics is the first main heading under the GSUI heading of Diagnostics.
Figure 7-7 shows the top level menu choices under Common Diagnostics. The subheadings and their
respective diagnostic/troubleshooting menu choices are called out and described in the sections below.
7-6-1 Utilities
Provides two selections:
7-6-1-1 Disruptive Mode
7-6-1-2 Allows you to enable or disable disruptive mode troubleshooting. System Shutdown
Allows for system shutdown from the diagnostic menu. Select to Restart System or Shutdown System.
Also, select to retain Disruptive Mode or Not.
After submitting to restart or shutdown a confirmation screen gives one last chance to confirm or cancel
the request.

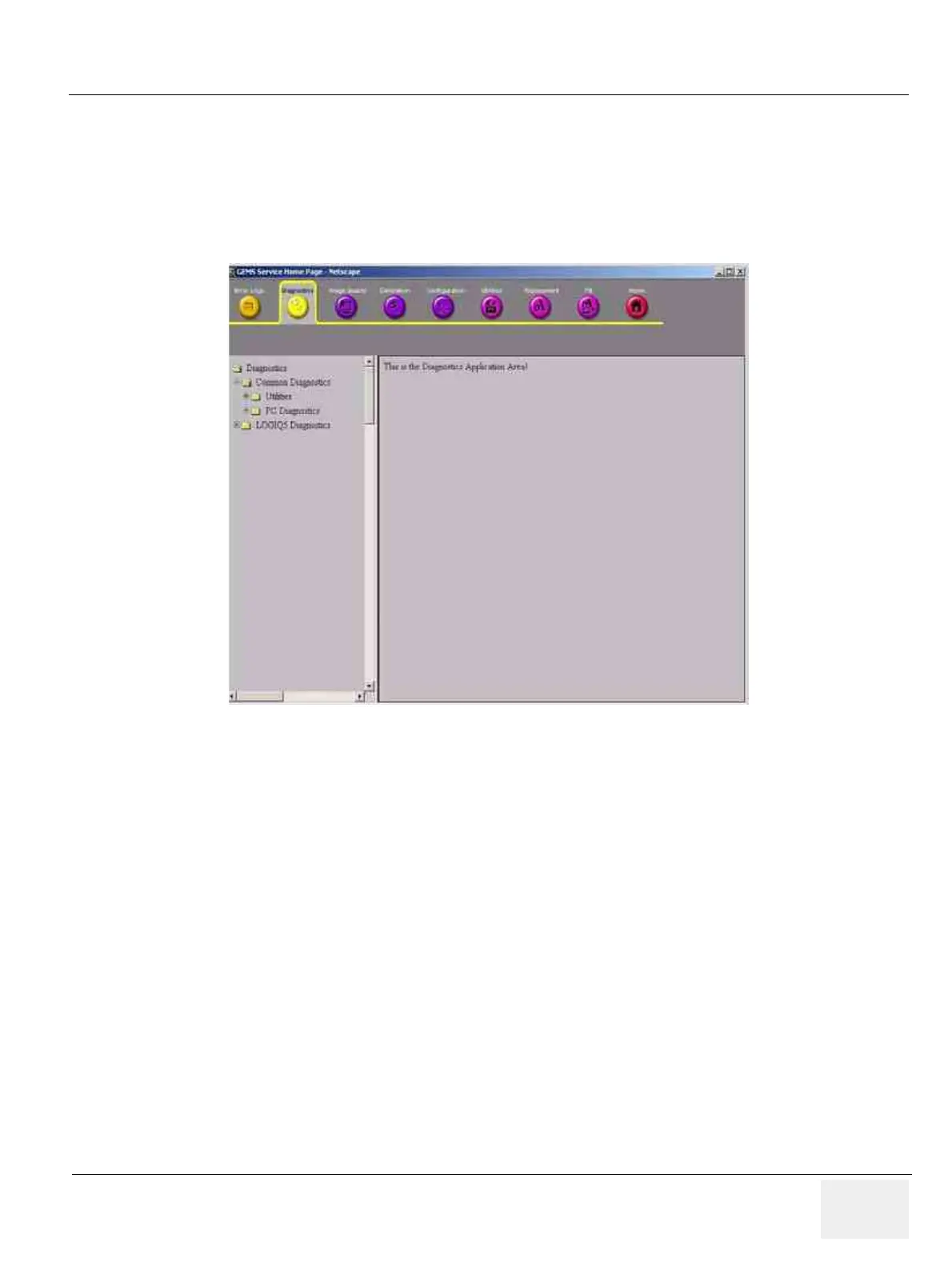

Figure 7-7 Common Diagnostics
