GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-66 Section 8-5 - Covers
8-5-15 Side Cap
Purpose: This is a description on how to remove and replace the Side Cap.
8-5-15-1 Tools
• Not required
8-5-15-2 Needed Manpower
• 1 persons, 3 minute + travel
8-5-15-3 Preparations
8-5-15-4 Removal Procedure
1.) Remove the Left Cover. Refer to section 8-5-1 on page 39.
2.) Pull the Side Cap upward from the Left Cover.
3.) Remove the Right Cover. Refer to Right Cover on section 8-5-2 on page 41.
4.) Pull the Side Cap upward from the Right Cover. Refer to Figure 8-68.

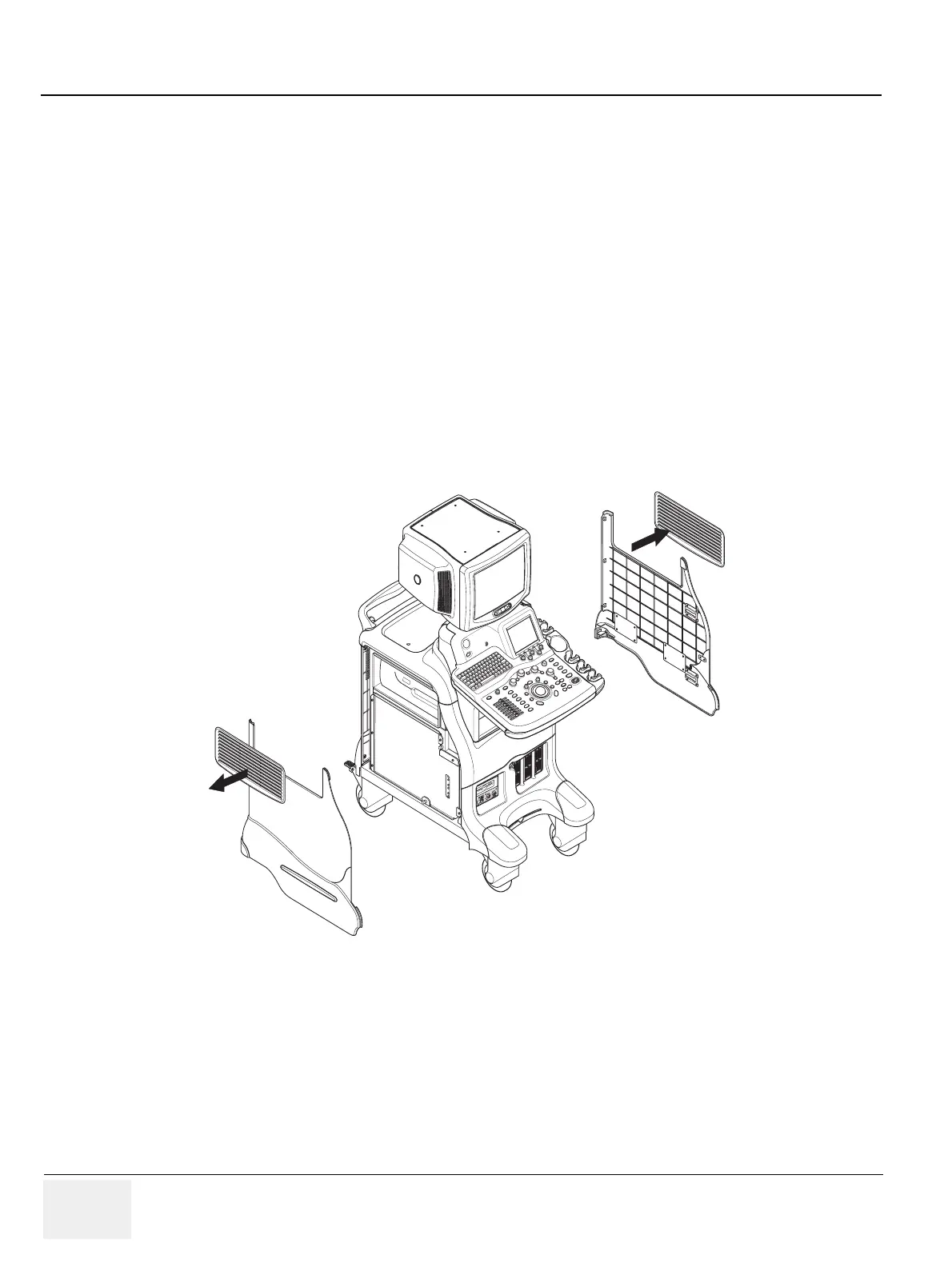

Figure 8-68 Removing Side Caps
