GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-84 Section 8-6 - Body Block
8-6-5 Rear Caster
Purpose: This is a description on how to remove and replace the Rear Caster.
8-6-5-1 Tools
• Common pillips screwdrivers
• Allen/Unbraco wrench
• Lifter (180Kg)
8-6-5-2 Needed Manpower
• 1 person, 15 minutes + travel
8-6-5-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
• Lift the system before proceed.
8-6-5-4 Removal Procedure
1.) Unscrew eight hexagonal bolts (1-8).
2.) Remove the Rear Caster. Refer to Figure 8-85.

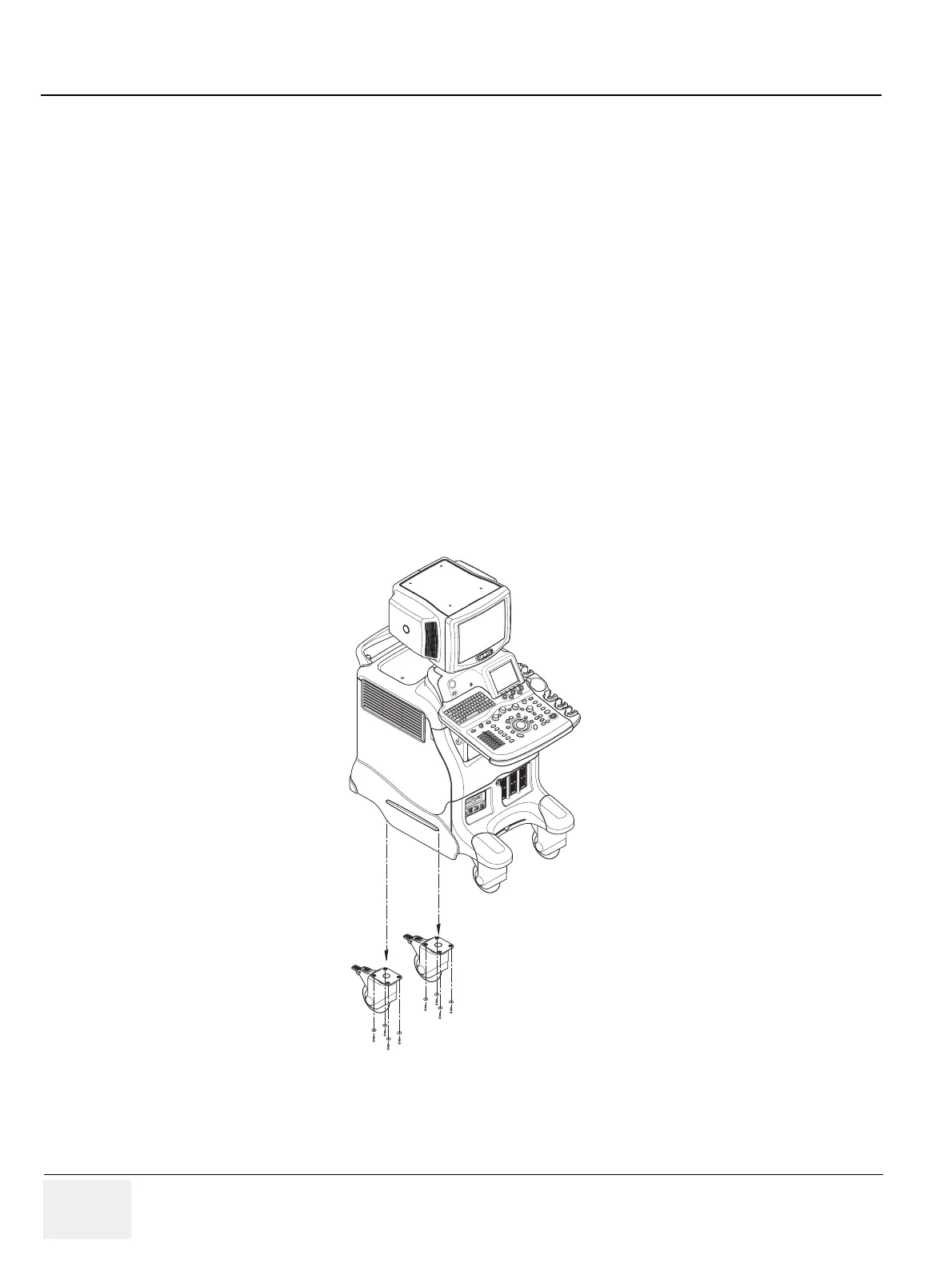

Figure 8-85 Removing the Rear Caster
1
2
6
8
7
5
4
3
