GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-64 Section 8-5 - Covers
8-5-14 EMI Cover R
Purpose: This is a description on how to remove and replace the EMI Cover R.
8-5-14-1 Tools
• Common pillips screwdrivers
• Allen/Unbraco wrench
8-5-14-2 Needed Manpower
• 1person, 15 minutes + travel
8-5-14-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
8-5-14-4 Removal Procedure
1.) Remove the Right Cover. Refer to section 8-5-2 on page 41.
2.) Unscrew seven (7) screws (1-7).
3.) Remove the EMI Cover R. Refer to Figure 8-67.

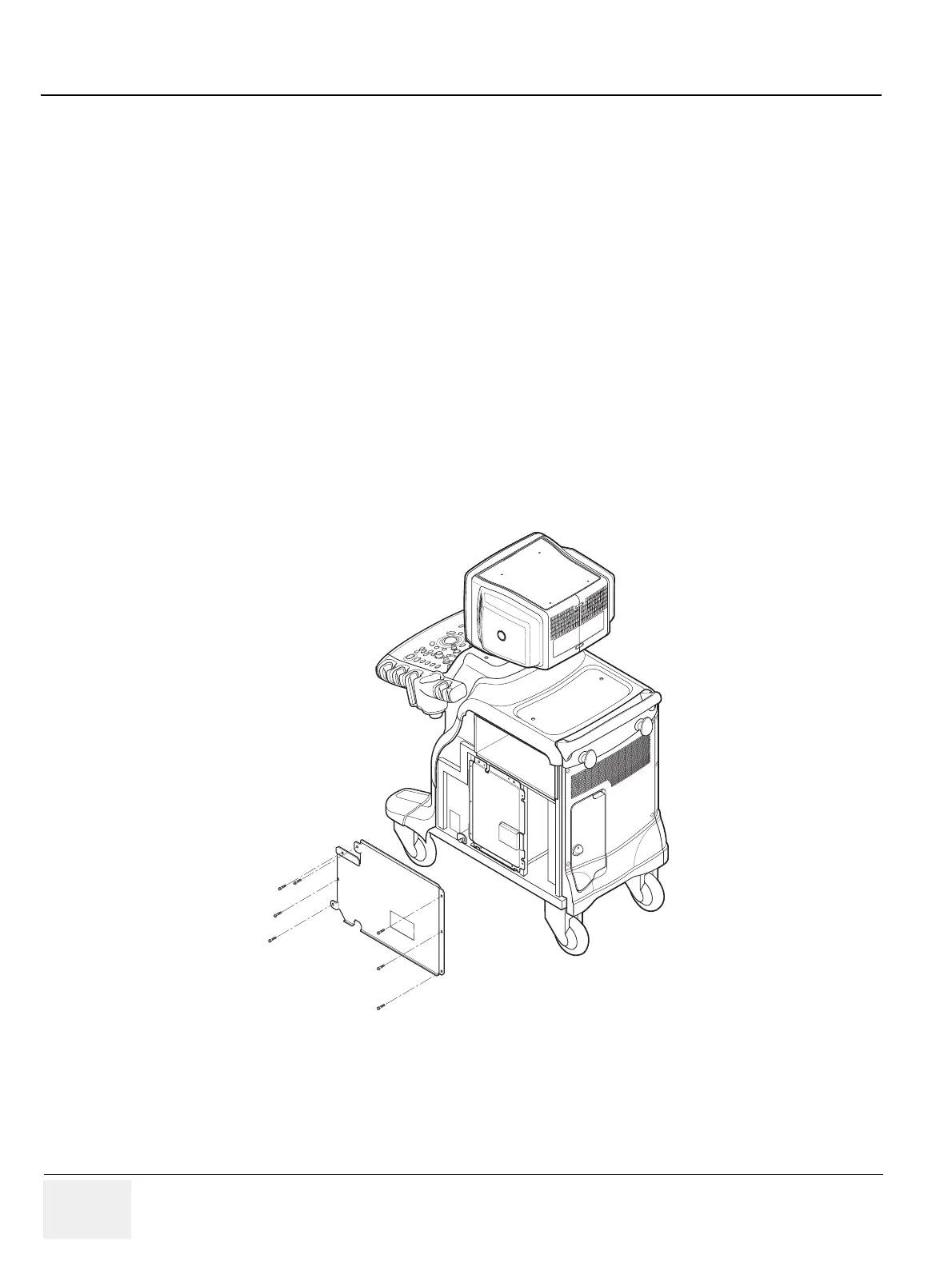

Figure 8-67 Removing the EMI Cover R
2
1
4
5
6
7
3
