GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-41
8-5-2 Right Cover
Purpose: This is a description on how to remove and replace the Right Cover.
8-5-2-1 Tools
• Common pillips screwdrivers
8-5-2-2 Needed Manpower
• 1person, 5 minutes + travel
8-5-2-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
8-5-2-4 Removal Procedure
1.) Turn OFF the system.
2.) Unscrew 3 screws (1-3).
3.) Remove the Right Cover. Refer to Figure 8-49.

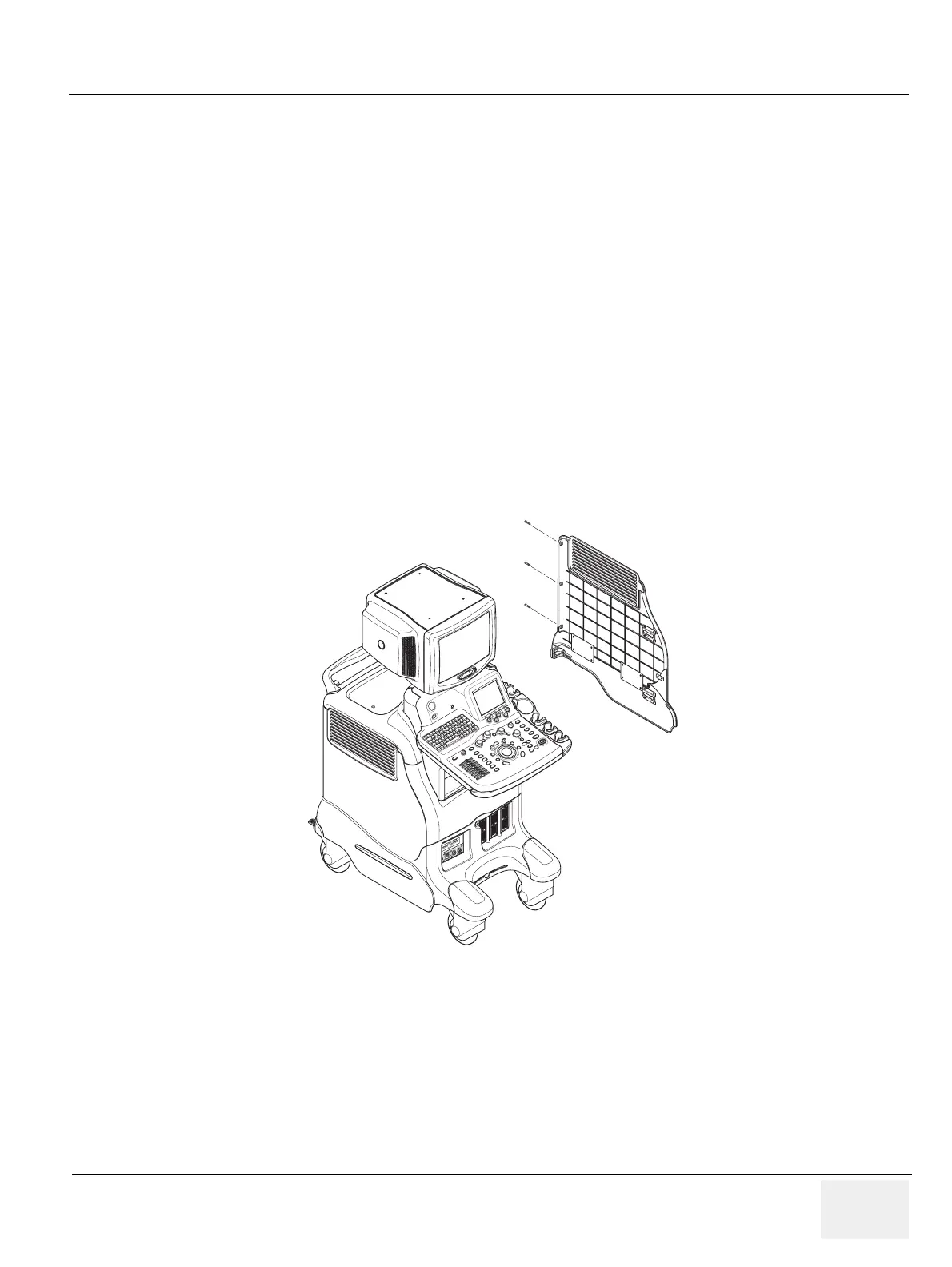

Figure 8-49 Removing the right cover
1
2
3
