GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-54 Section 8-5 - Covers
8-5-9 OP Side R Cover
Purpose: This is a description on how to remove and replace the OP Side R Cover.
8-5-9-1 Tools
• Common pillips screwdrivers
• Allen/Unbraco wrench
8-5-9-2 Needed Manpower
• 1person, 25 minutes + travel
8-5-9-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
8-5-9-4 Removal Procedure
1.) Remove the Left Cover. Refer to section 8-5-1 on page 39.
2.) Remove the Right Cover. Refer to section 8-5-2 on page 41.
3.) Remove the Front Base Cover. Refer to section 8-5-7 on page 51.
4.) Remove the Front Cover. Refer to section 8-5-7 on page 51 .
5.) Remove the Keyboard Assy. Refer to section 8-4-1 on page 15.
6.) Unscrew five (5) screws (1-5) and remove the Probe Holder Bracket. Refer to Figure 8-59.

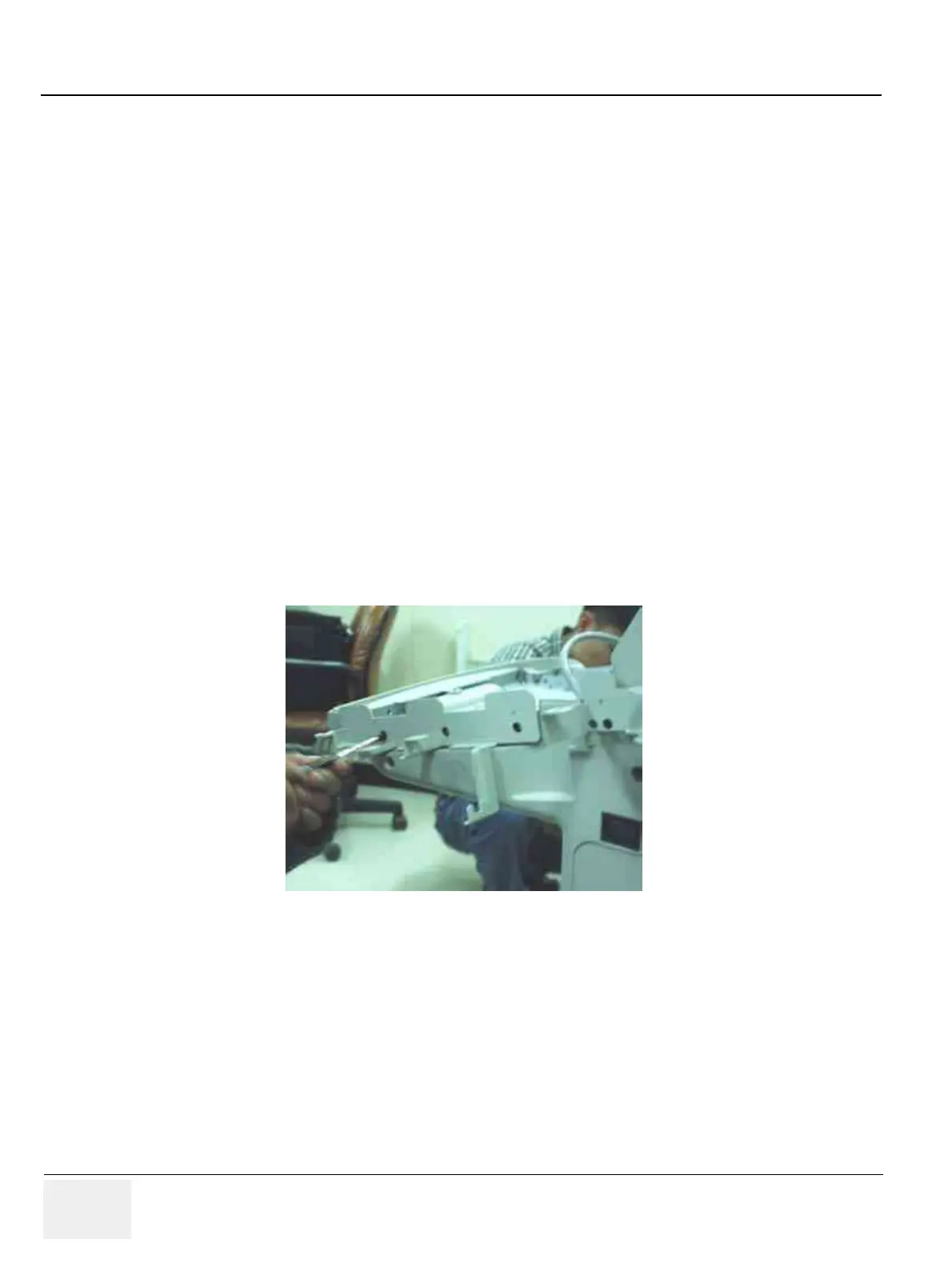

Figure 8-59 Removing the Probe Holder Bracket
(1)
(2)
(3)
(4)
(5)
Probe Holder Bracket
To Next Page
