8-5-11 OP Bottom Cover
Purpose: This is a description on how to remove and replace the OP Bottom Cover.
8-5-11-1 Tools
• Common pillips screwdrivers
• Allen/Unbraco wrench
8-5-11-2 Needed Manpower
• 1 persons, 25 minutes + travel
8-5-11-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
8-5-11-4 Removal Procedure
1.) Remove the Left Cover. Refer to section 8-5-1 on page 39.
2.) Remove the Right Cover. Refer to section 8-5-2 on page 41.
3.) Remove the Front Base Cover. Refer to 1.) section 8-5-6 on page 49.
4.) Remove the Front Cover. Refer to section 8-5-7 on page 51.
5.) Remove the OP Side L Cover. Refer to section 8-5-8 on page 52.
6.) Remove the OP Side R Cover. Refer to section 8-5-9 on page 54.
7.) Unscrew four (4) screws (1-4). Refer to Figure 8-63.
8.) Remove the OP Bottom Cover.

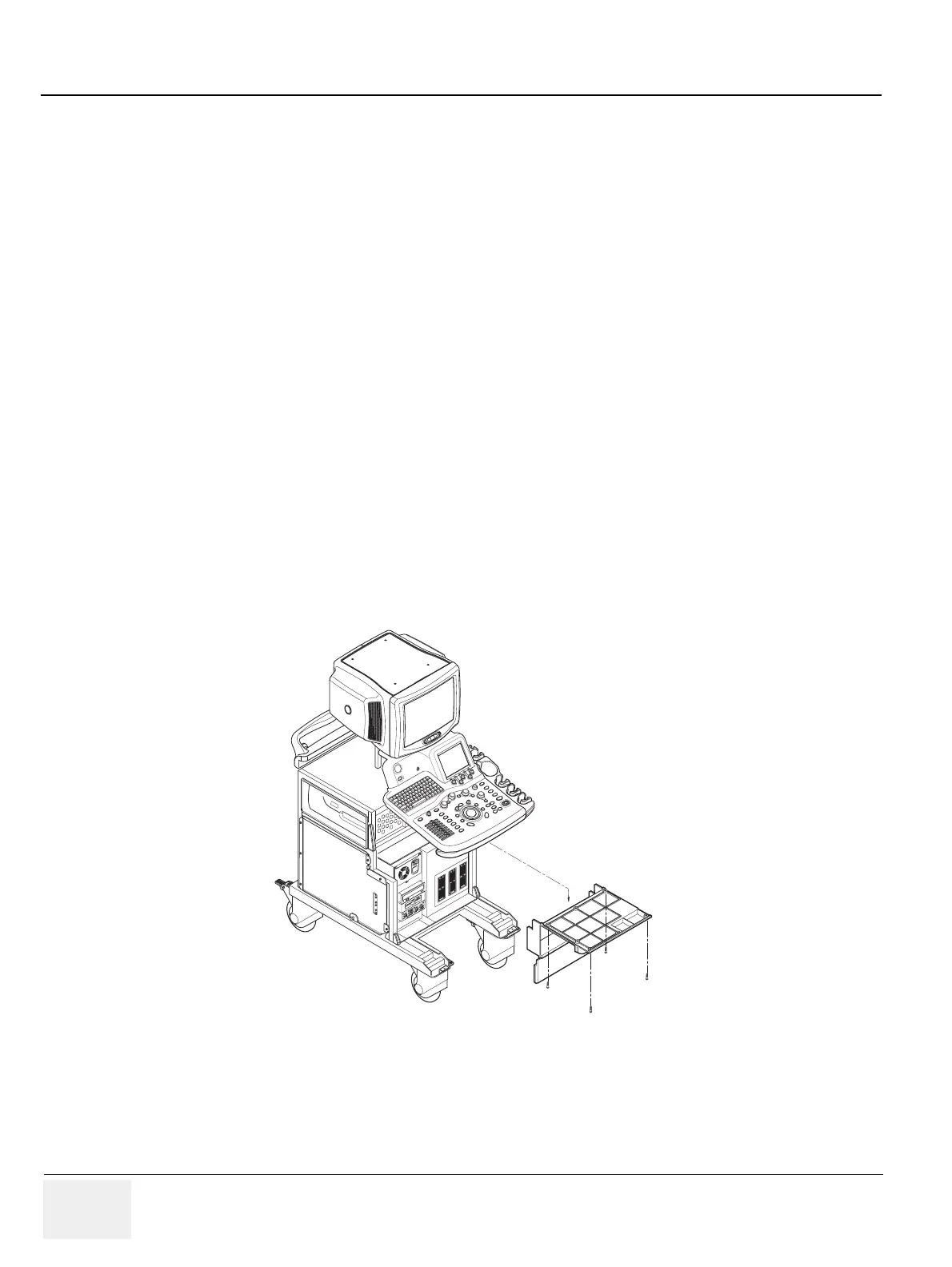

Figure 8-63 Removing the OP Bottom Cover
1
3
2
4
