DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-18 Section 8-4 - Keyboard Block
8-4-2 KeyBoard Front Grip
Purpose: This is a description on how to remove and replace the Keyboard Front Grip.
8-4-2-1 Tools
• Common pillips screwdrivers
8-4-2-2 Needed Manpower
• 1person, 25 minutes + travel
8-4-2-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
• Remove the Keyboard Assy before proceed. For more information on Keyboard removal, refer to
section 8-4-1 on page 15.
8-4-2-4 Removal Procedure
1.) Unscrew fourteen (14) screws (1-14). Refer to Figure 8-24.
2.) Remove the KeyBoard Front Grip.

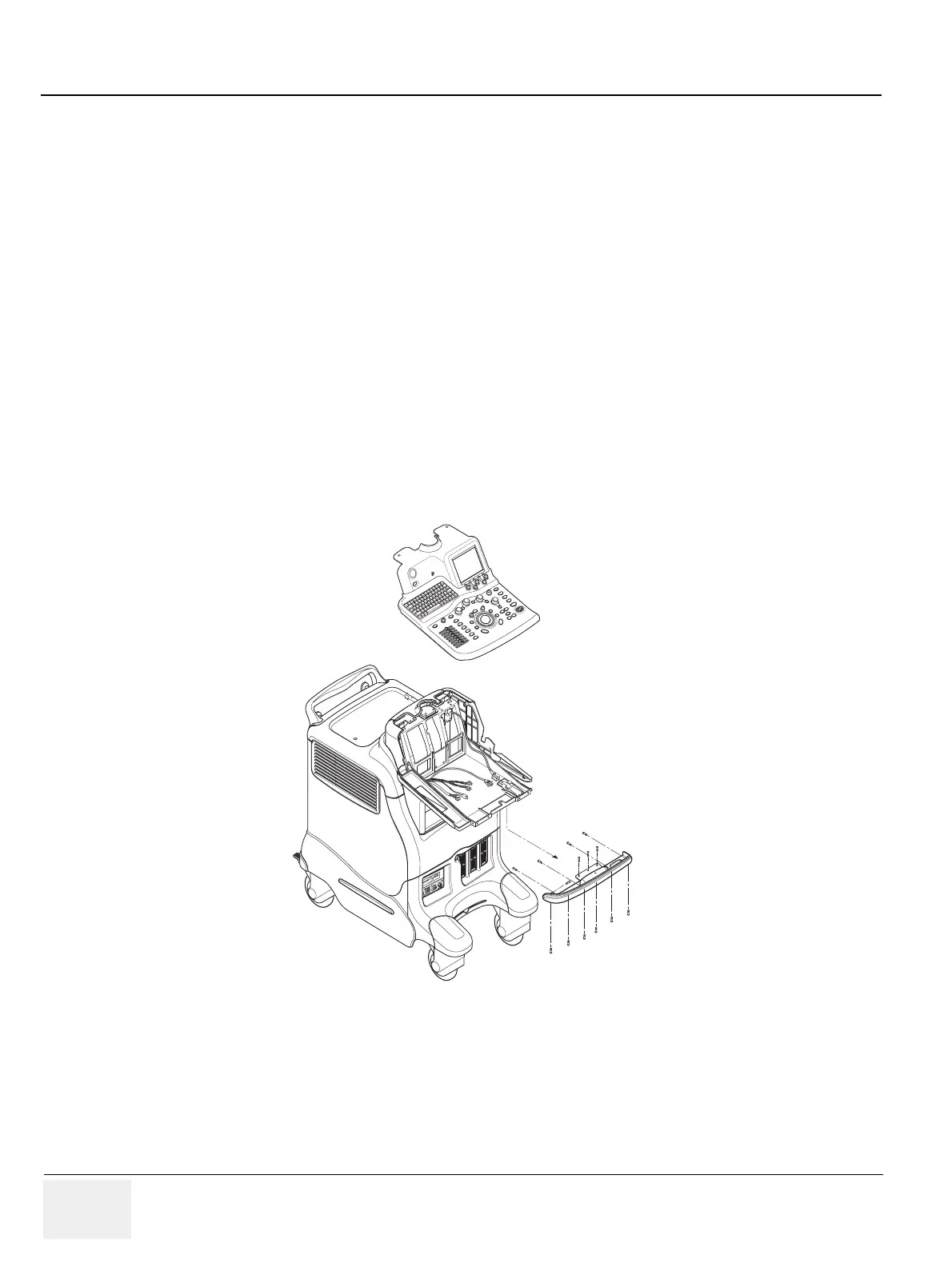

Figure 8-24 Removing Keyboard Front Grip
9
12
14
4
5
6
7
1
2
3
8
10
11
13
