GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-88 Section 8-6 - Body Block
8-6-7 Air Filter Set
Purpose: This is a description on how to remove and replace the Air Filter Set.
8-6-7-1 Tools
• Not Required.
8-6-7-2 Needed Manpower
• 1 person, 5 minutes + travel
8-6-7-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
8-6-7-4 Removal Procedure
1.) Remove Air Filter as illustrated below.Refer to Figure 8-87.
2.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-6-7-5 Mounting procedure
Install the new parts in the reverse order of removal.

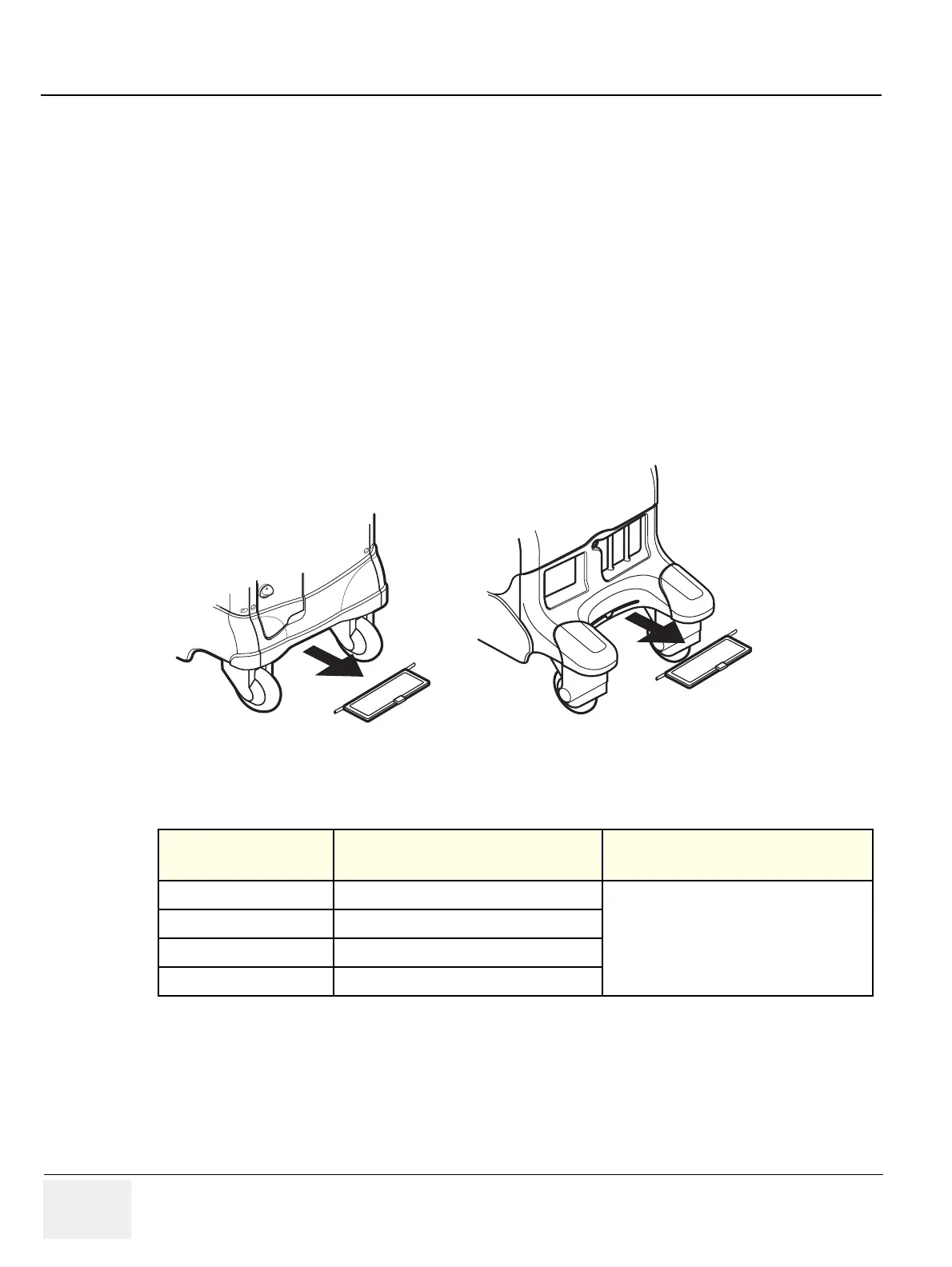

Figure 8-87 Removing the Air Filters
Table 8-42 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
2300000, Rev 1+, Section 8-6-7. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-2-7
Air filter set
Section 10-5-5
Physical Inspection
