GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-49
8-5-6 Front Base Cover
Purpose: This is a description on how to remove and replace the Front Base Cover.
8-5-6-1 Tools
• Common pillips screwdrivers
8-5-6-2 Needed Manpower
• 1person, 15 minutes + travel
8-5-6-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
8-5-6-4 Removal Procedure
1.) Remove the Left Cover. Refer to section 8-5-1 on page 39.
2.) Remove the Right Cover. Refer to section 8-5-2 on page 41.
3.) Unscrew four screws (1-4). Refer to Figure 8-54.

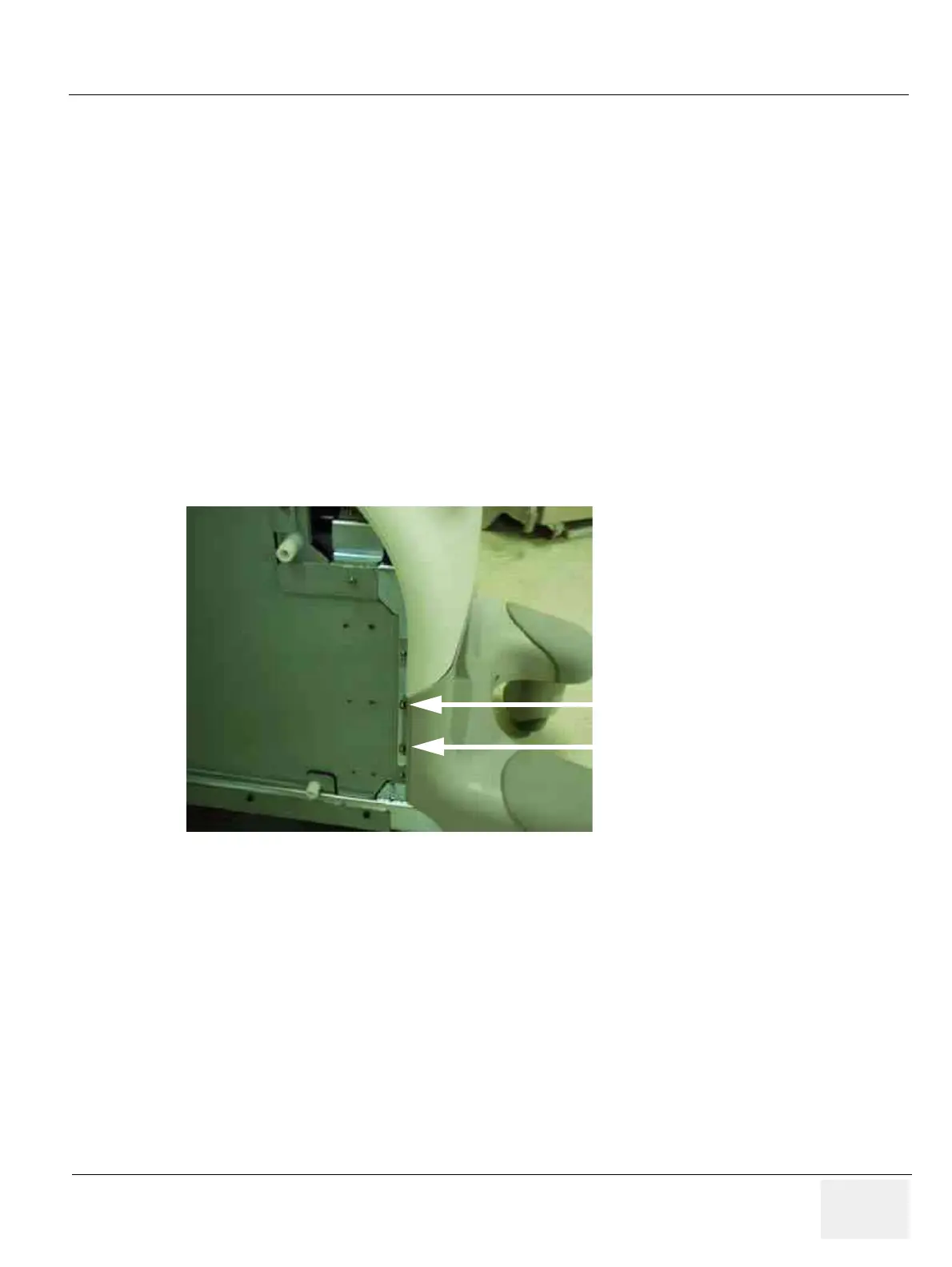

Figure 8-54 Unscrew 2 screws on the Right side
(1)
(2)
(3), (4) are on the left side
Right side
