GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 1 LOGIQ™ 5 SERVICE MANUAL
Chapter 5 Components and Functions 5 - 31
5-9-3 Fans
The scanner contains the eight fans at the following positions for producing an air flow.
- One fan: Insde the LV unit for air flow pass C
- One fan: On the BEP assy for air flow pass B
- Four fans: At the top of the NEST Assy for air flow pass A, C.
- Two fans: at the top of the AC Power assy for air flow pass A, C

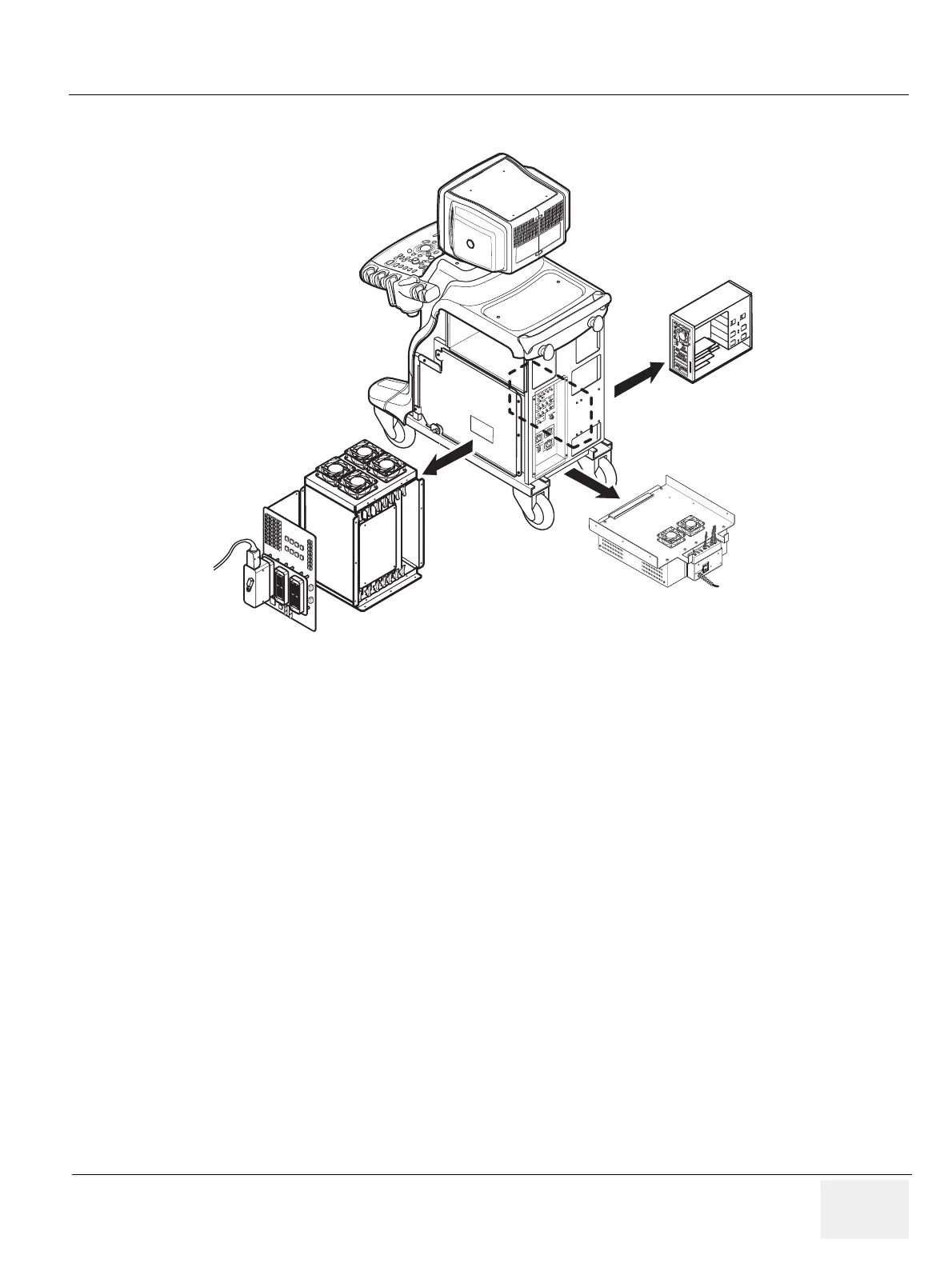

Figure 5-26 Fans
Fans for Nest Assy
Fan for PC Box
Fans for AC Power Assy
