GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-9
8-3-4 Monitor S/W Assy
Purpose: This is a description on how to remove and replace the Monitor S/W Assy.
8-3-4-1 Tools
Common pillips screwdrivers
8-3-4-2 Needed Manpower
1person, 10 minutes + travel
8-3-4-3 Preparations
Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
8-3-4-4 Removal Procedure
1.) Remove the Monitor Cover Front. Refer to section 8-3-3 on page 7.
2.) Disconnect two connectors (1-2). Refer to Figure 8-10.
3.) Unscrew two screws (3-4) from the Monitor Cover Front. Refer to Figure 8-11.

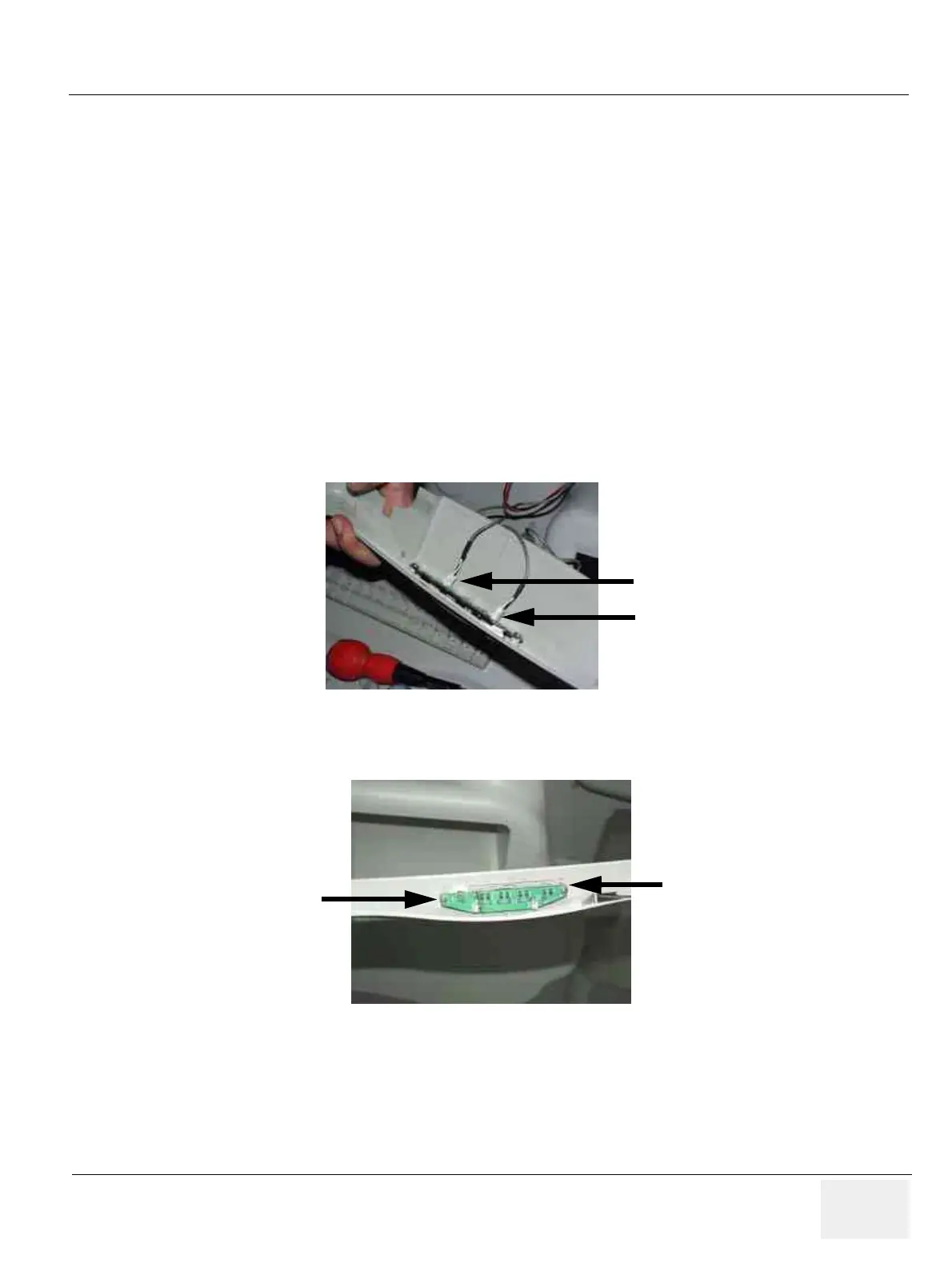

Figure 8-10 Disconnecting 2 cables
Figure 8-11 Unscrew 2 screws
1
2
3
4
