GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-31
8-4-9 OP Panel Trackball Assy
Purpose: This is a description on how to remove and replace OP Panel Trackball Assy.
8-4-9-1 Tools
• Common pillips screwdrivers.
8-4-9-2 Needed Manpower
• 1person, 5 minutes + travel
8-4-9-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
• Keyboard Assy should be removed before proceed. For more information, refer to KeyBoard Assy
on section 8-4-1 on page 15.
8-4-9-4 Removal Procedure

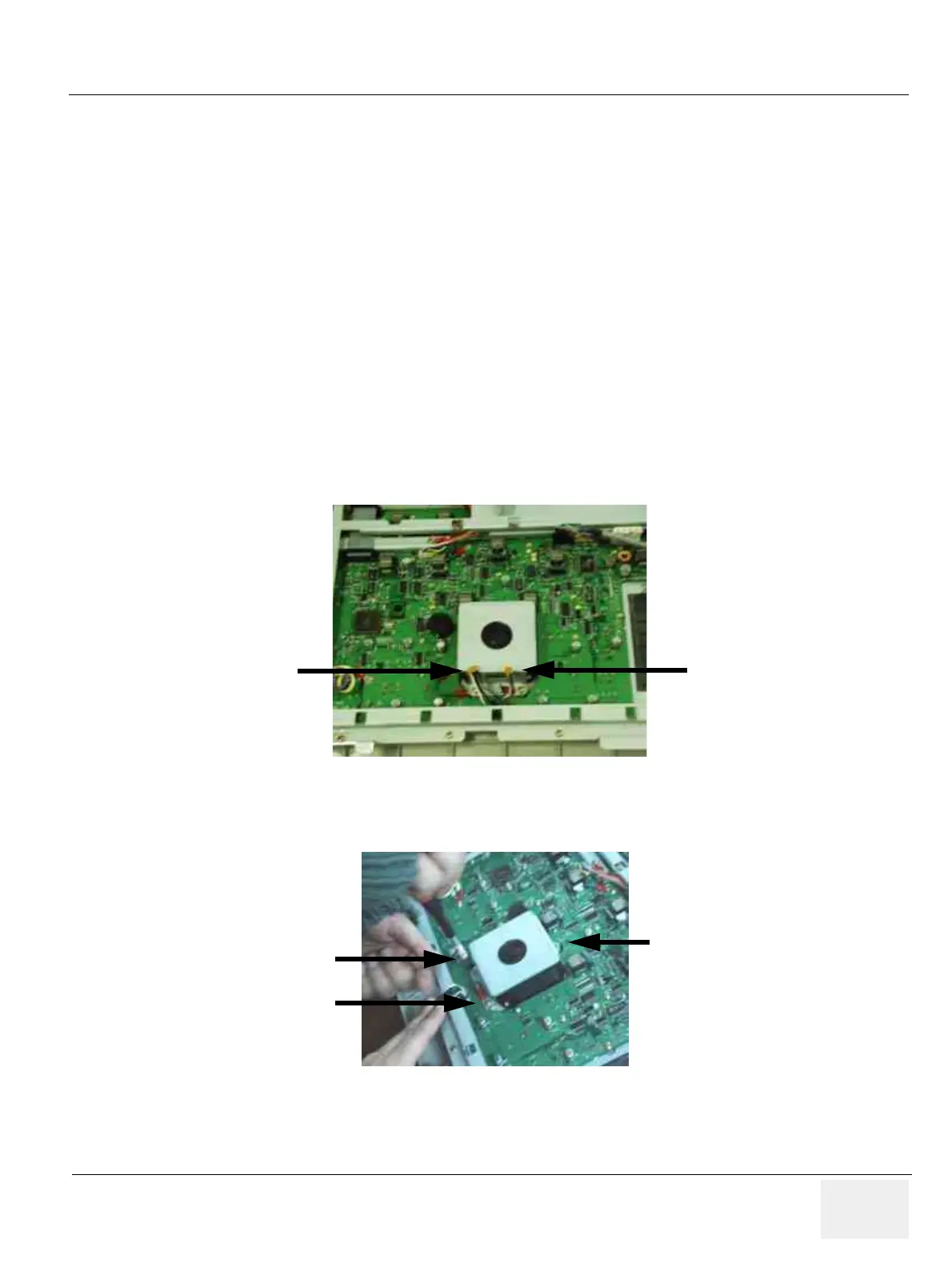

1.) Disconnect two connectors (1-2) from the Trackball Assy. Refer to Figure 8-37.
2.) Unscrew three screws (3-5) to remove the Trackball Assy. Refer to Figure 8-38.
Figure 8-37 Disconnect two connectors
Figure 8-38 Unscrew 3 screws
1
2
3
4
5
