GE MEDICAL SYSTEMS
D
IRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-29
8-4-8 OP Panel A/N Keyboard Assy
Purpose: This is a description on how to remove and replace OP Panel A/N Keyboard Assy.
8-4-8-1 Tools
• Common pillips screwdrivers
8-4-8-2 Needed Manpower
• 1persons, 5 minutes + travel
8-4-8-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
• Keyboard Assy should be removed before proceed. For more information, refer to KeyBoard Assy
on section 8-4-1 on page 15.
8-4-8-4 Removal Procedure
1.) Unscrew five (5) screws and remove the HUB Assy EMC guard. Refer to Figure 8-33.
2.) Disconnect two(2) connectors (1-2) from the HUB Board. Refer to Figure 8-34.

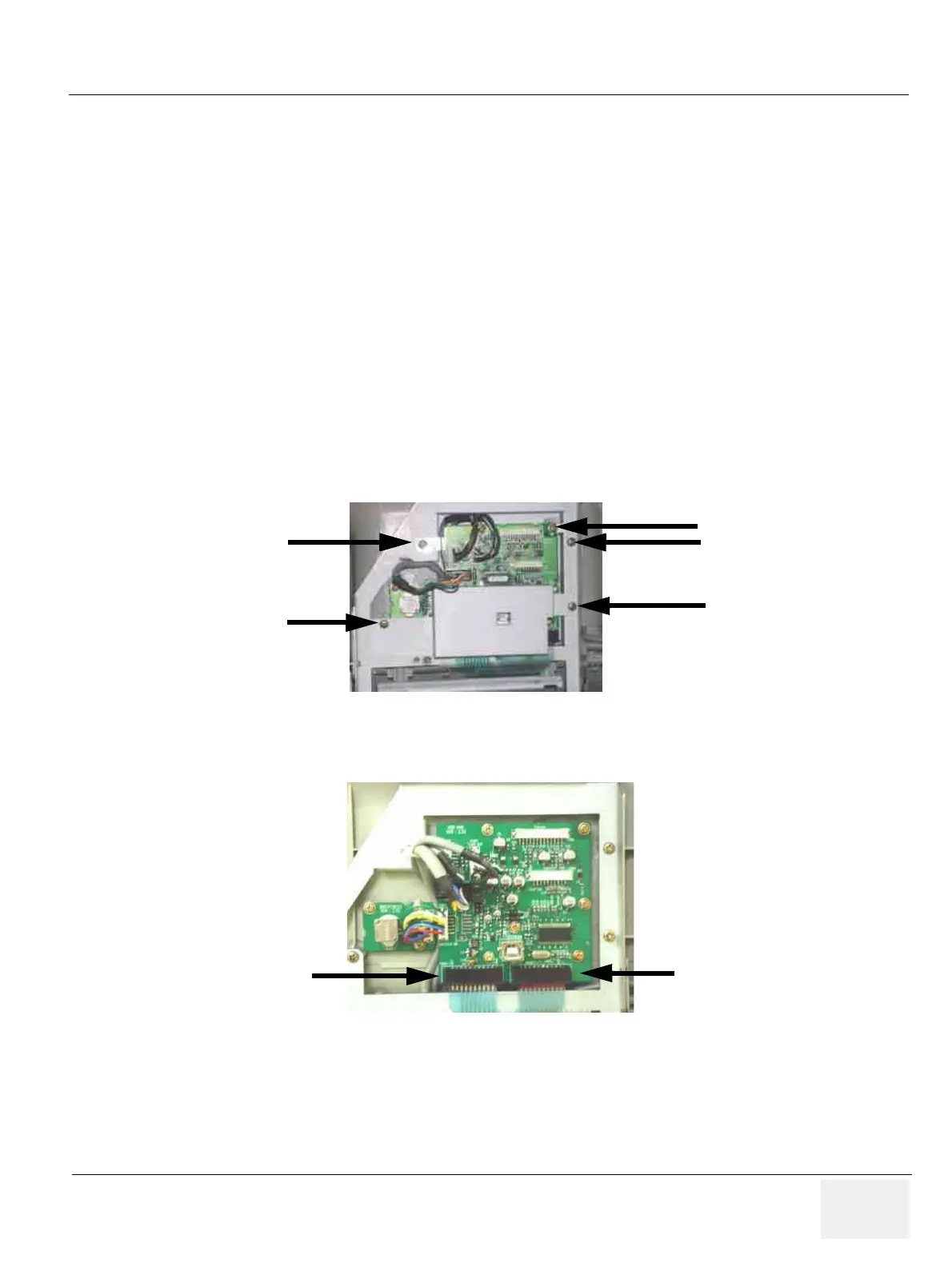

Figure 8-33 Removing HUB EMC guard
Figure 8-34 Disconnecting 2 connectors
EMC Guard
1
2
3
4
5
1
2
