8-60 Section 8-5 - Covers
8-5-12 OP Curtain Cover
Purpose: This is a description on how to remove and replace the OP Curtain Cover.
8-5-12-1 Tools
• Common pillips screwdrivers
• Allen/Unbraco wrench
8-5-12-2 Needed Manpower
• 1 person, 25 minutes + travel
8-5-12-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
8-5-12-4 Removal Procedure
1.) Remove the Left Cover. Refer to section 8-5-1 on page 39.
2.) Remove the Right Cover. Refer to section 8-5-2 on page 41.
3.) Remove the Front Base Cover. Refer to 1.) section 8-5-6 on page 49.
4.) Remove the Front Cover. Refer to section 8-5-7 on page 51.
5.) Remove the OP Side L Cover. Refer to section 8-5-8 on page 52.
6.) Remove the OP Side R Cover. Refer to section 8-5-9 on page 54.
7.) Remove the OP Bottom Cover. Refer to section 8-5-11 on page 58
8.) Unscrew six screws from the OP Curtain Cover. Refer to Figure 8-64.

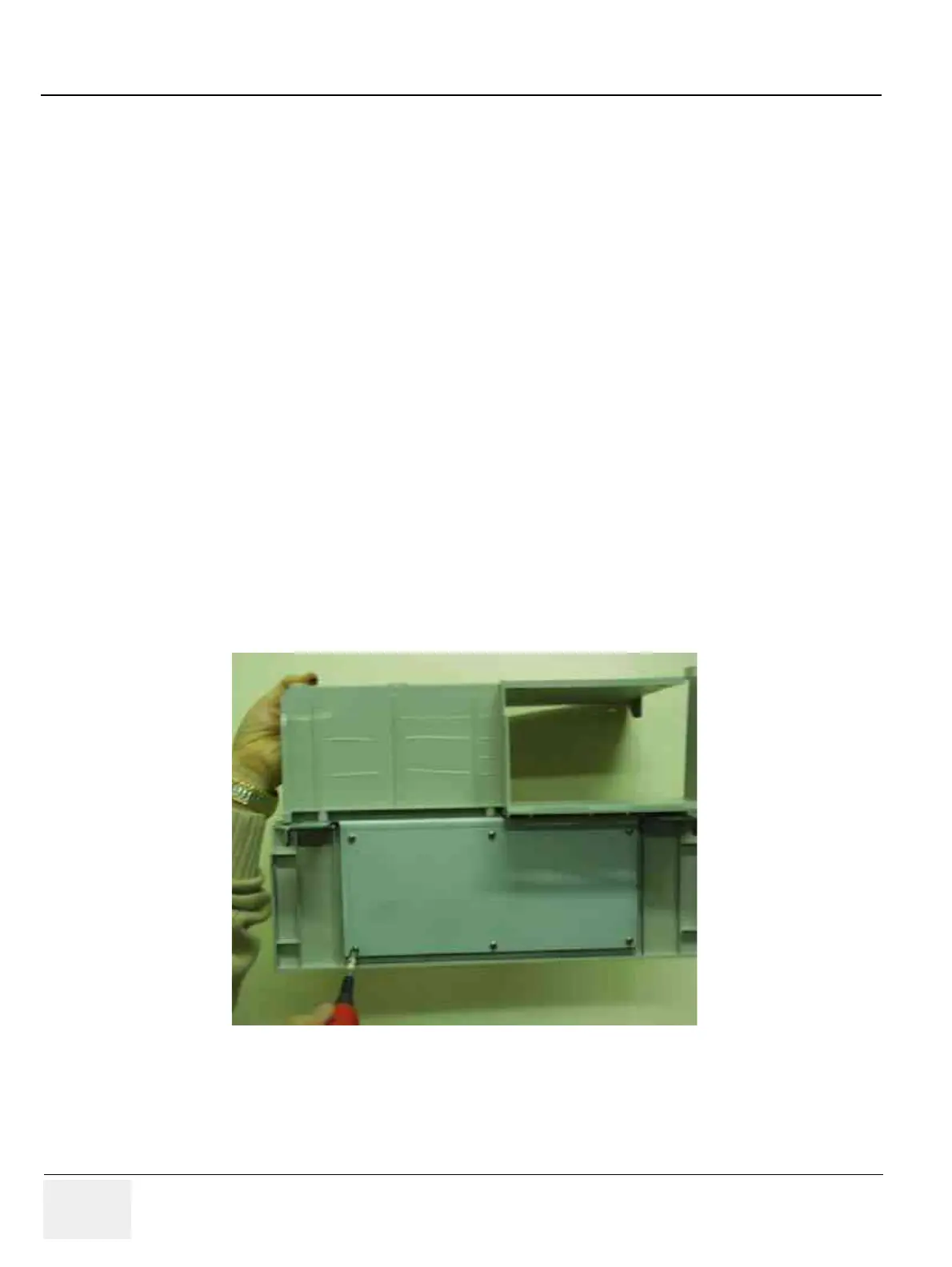

Figure 8-64 Unscrew 6 screws to remove the OP Curtain Cover
OP Bottom Cover
OP Curtain Cover
(1)
(2)
(3)
(4)
(5)
(6)
