8-70 Section 8-6 - Body Block
Section 8-6
Body Block
8-6-1 Rear Handle
Purpose: This is a description on how to remove and replace the Rear Handle.
8-6-1-1 Tools
• Common pillips screwdrivers
• Allen/Unbraco wrench
8-6-1-2 Needed Manpower
• 1person, 25 minutes + travel
8-6-1-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
8-6-1-4 Removal Procedure
1.) Remove the Left Cover. Refer to section 8-5-1 on page 39.
2.) Remove the Right Cover. Refer to section 8-5-2 on page 41.
3.) Remove the Rear Cover. Refer to section 8-5-3 on page 43.
4.) Remove the Top Cover. Refer to section 8-5-5 on page 47.
5.) Unscrew four (4) screws (1-4) to remove peri rear bracket. Refer to Figure 8-70.

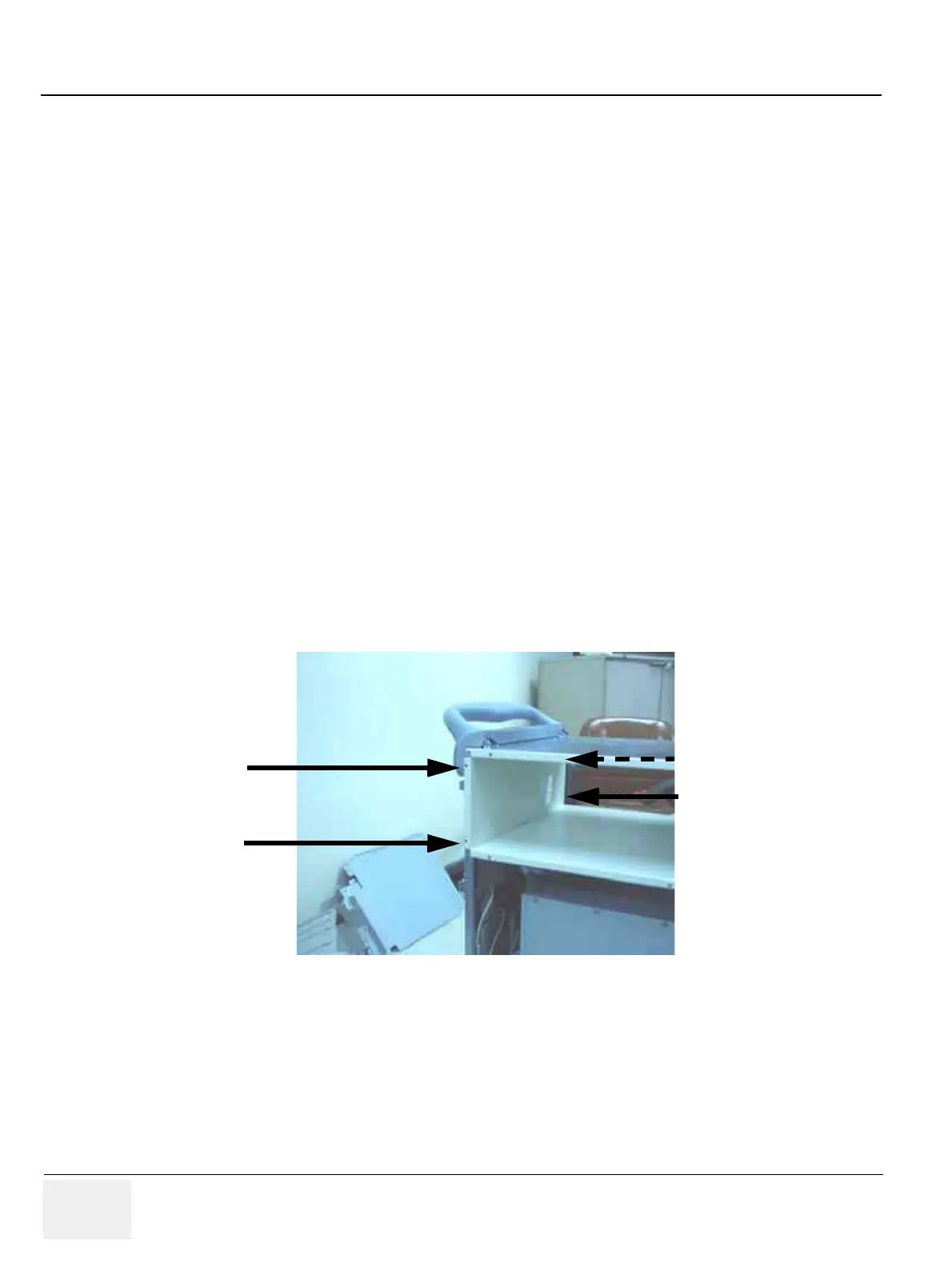

Figure 8-70 Removing the Peri Rear Bracket
(1)
(2)
(3)
(4)
