GE LOGIQ 5 Service Manual

GE MEDICAL SYSTEMS
DIRECTION 2300000, REVISION 2 LOGIQ™5 SERVICE MANUAL
8-26 Section 8-4 - Keyboard Block
8-4-6 OP Panel TGC Assy
Purpose: This is a description on how to remove and replace OP Panel TGC Assy.
8-4-6-1 Tools
• Common pillips screwdrivers.
8-4-6-2 Needed Manpower
• 1persons, 5 minutes + travel
8-4-6-3 Preparations
• Shut Down the System and switch off the Main Breaker at the rear as described in section 4-3-2 on
page 3.
• Keyboard Assy should be removed before proceed. For more information, refer to KeyBoard Assy
on section 8-4-1 on page 15.
8-4-6-4 Removal Procedure
1.) Remove eight (8) TGC knobs from the upper side of the Keyboard. Refer to Figure 8-30.
2.) Disconnect the TGC connector from the back side of the keyboard.
3.) Unscrew four (4) screws and Remove the TGC Assy from the keyboard.

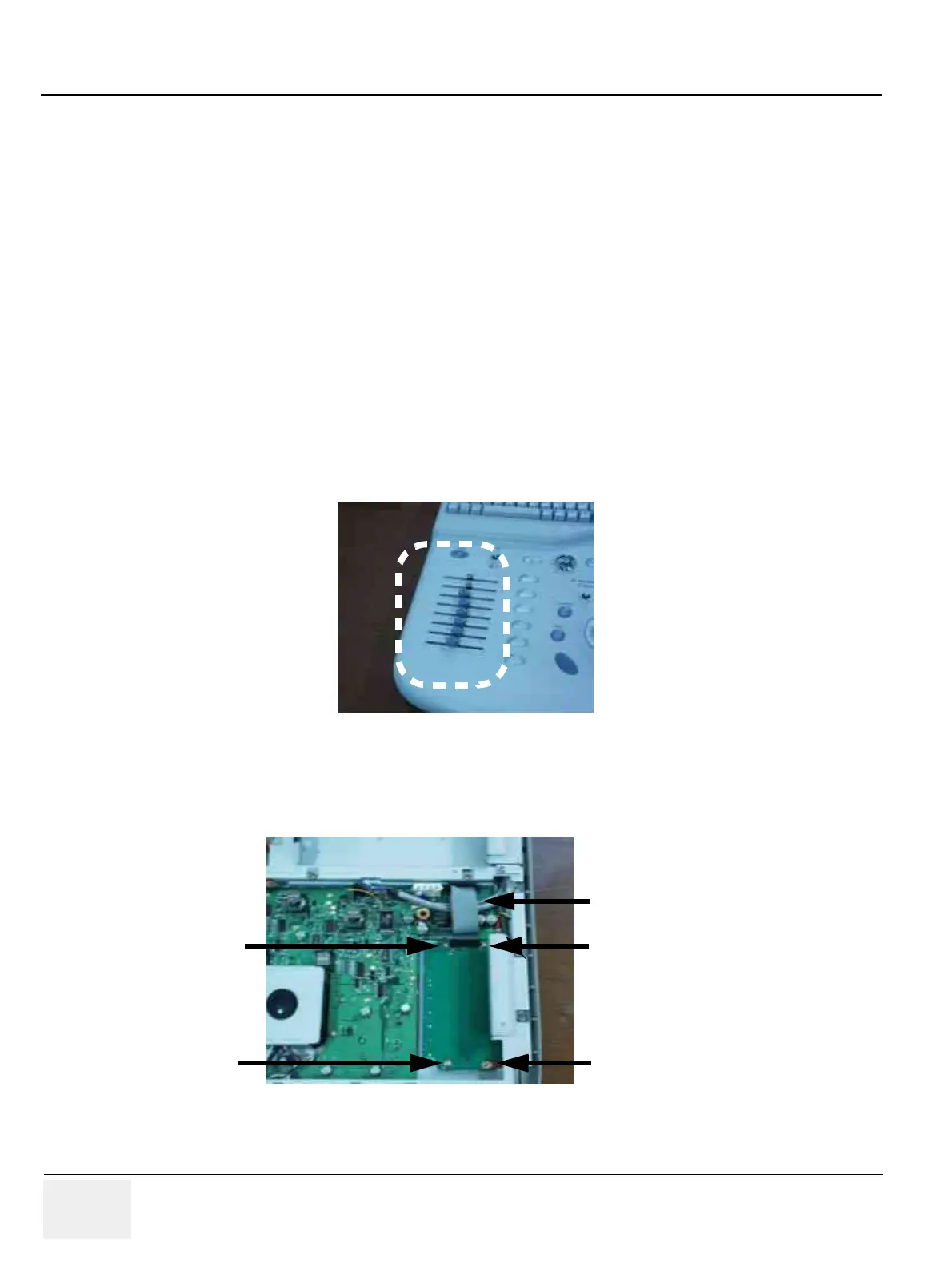

Figure 8-30 Removing TGC Knobs
Figure 8-31 Unscrew 4 screws and remove TGC Assy
TGC Connector
1
2
3
4
