5 - 24 Section 5-6 - Top Console
5-7-2-3 Cable Connection- VCR (cont’d)
Connect the cables listed below between the Pansonic VCR and the console.
Equipment damage possibly. Be sure to use the following recommended connecting cables to connect
recording devices and a network with LOGIQ™ 5 console.

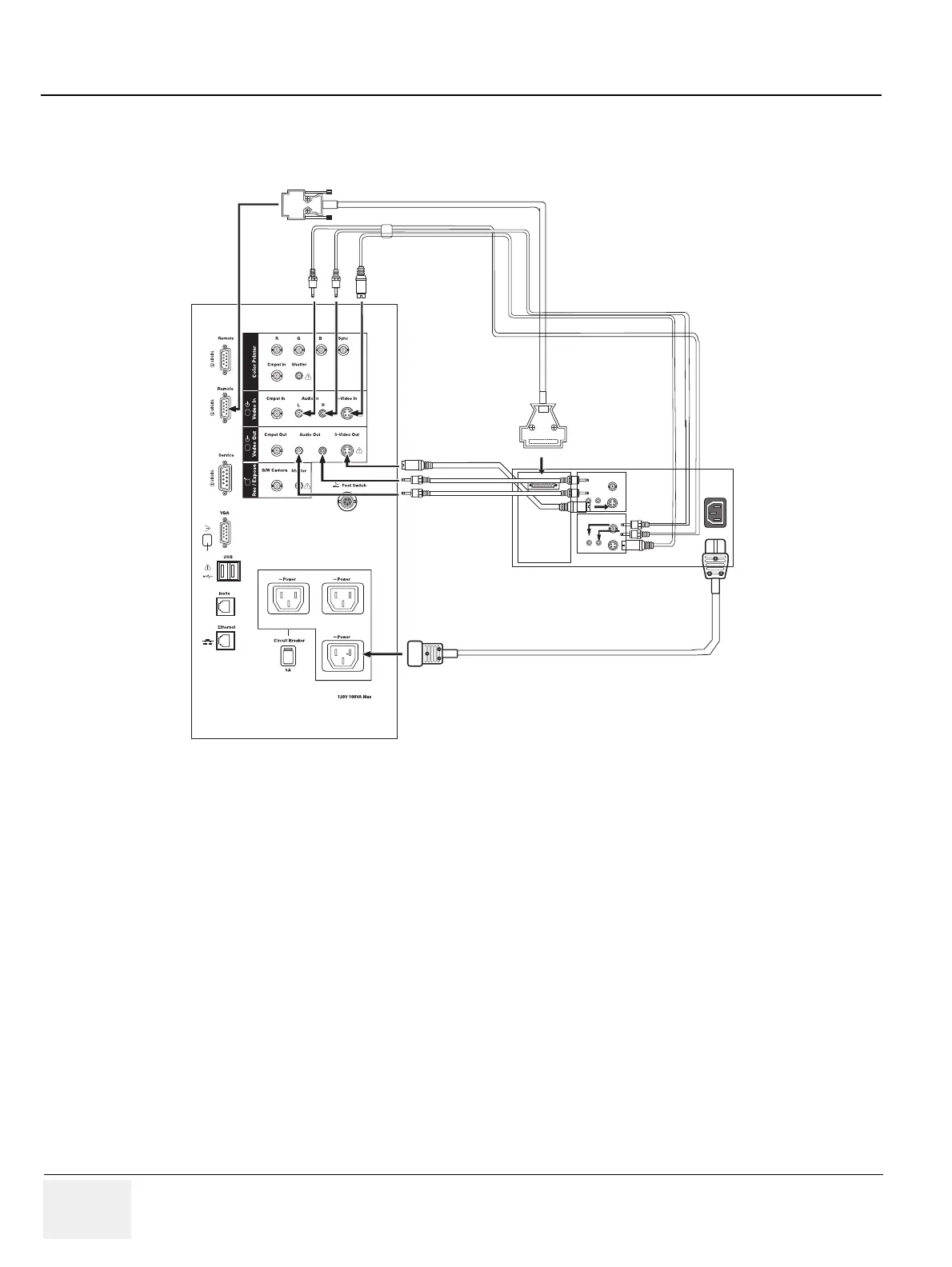

Figure 5-21 Cable Connection between VCR and Console
RS232C CABLE
POWER CABLE
REAR PANEL of Panasonic VCR
Rear Panel of JUPITER
AUDIO
IN
AUDIO
OUT
VID EO IN
VIDEO OUT
To Next Page
