Diagnostics/Troubleshooting
7-8 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Check and Record the P3 Key Function (continued)
P3 is the factory default USB Quick Save key. If it is not set
to Image Area, proceed to step 5 to record the customer’s
customized settings.
5. In the Destinations section, record the service that is
displayed.
6. In the Physical Print Buttons section, record the
parameters related to the service.
Setting the P3 Key to USB Quick Save
If the P3 Key is not set to USB Quick Save:
1. While on the Connectivity screen, with the Buttons tab
displayed, go to the Destinations list.
2. From the list select USB Quick Save. Press [>>] to add the
selection to the Printflow View section.

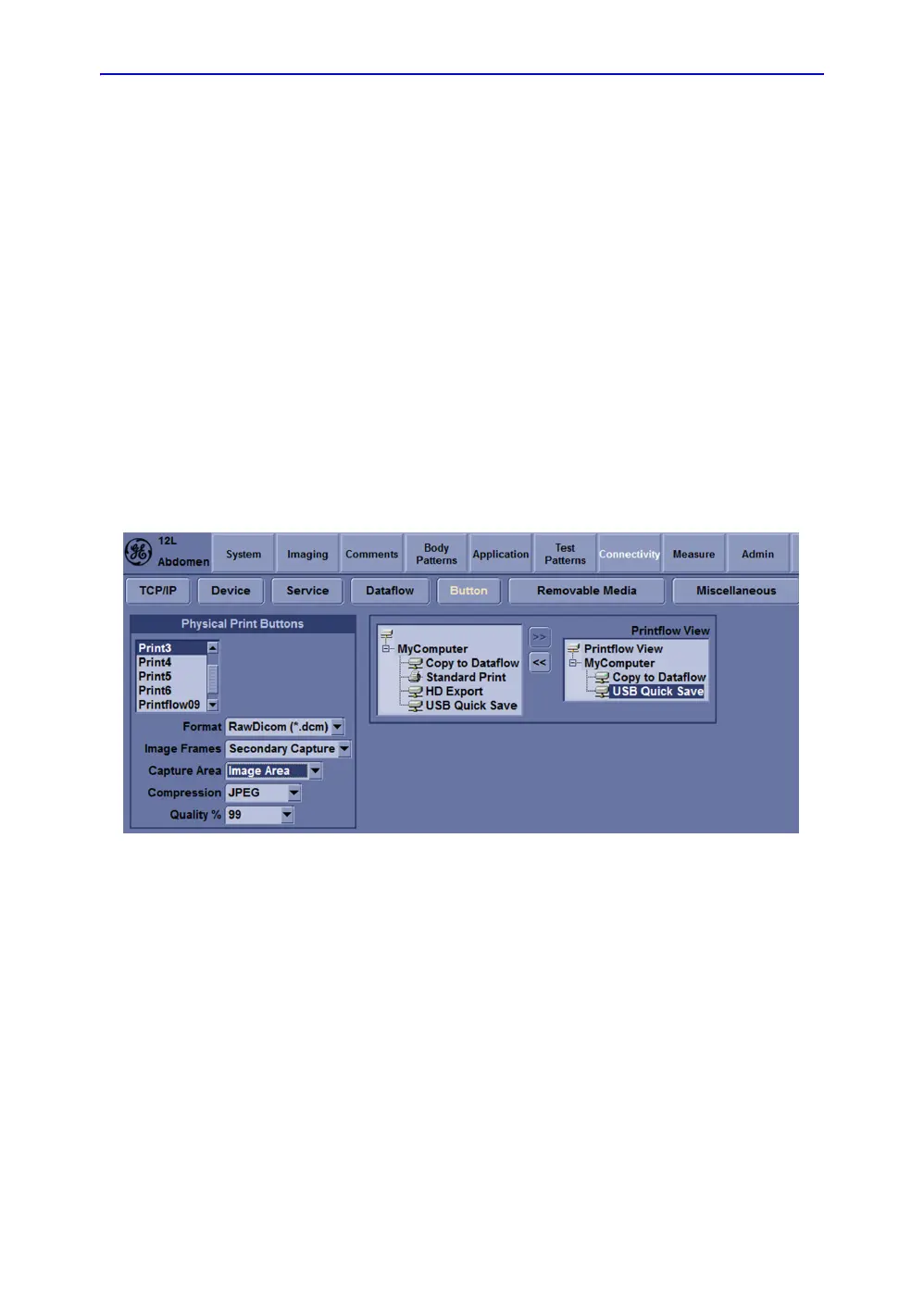

Figure 7-4. Set P3 Key to USB Quick Save
3. Ensure that the Physical Print Buttons section for capture
Area is set to Image Area and No Image Compression.
4. The P3 Key should now be set up for USB Quick Save,
sending the images directly to the USB memory
To Next Page
