System Setup
3-14 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Power On / Boot Up
NOTE: After turning off a system, wait at least ten seconds before
turning it on again. The system may not be able to boot if power
is recycled too quickly.
System Power On
Lower the handle. Plug the AC adapter output connector into the
system DC input port (located on the system’s rear panel) with
the arrow side upward. Plug the AC adapter power cord into a
grounded, protective earth outlet

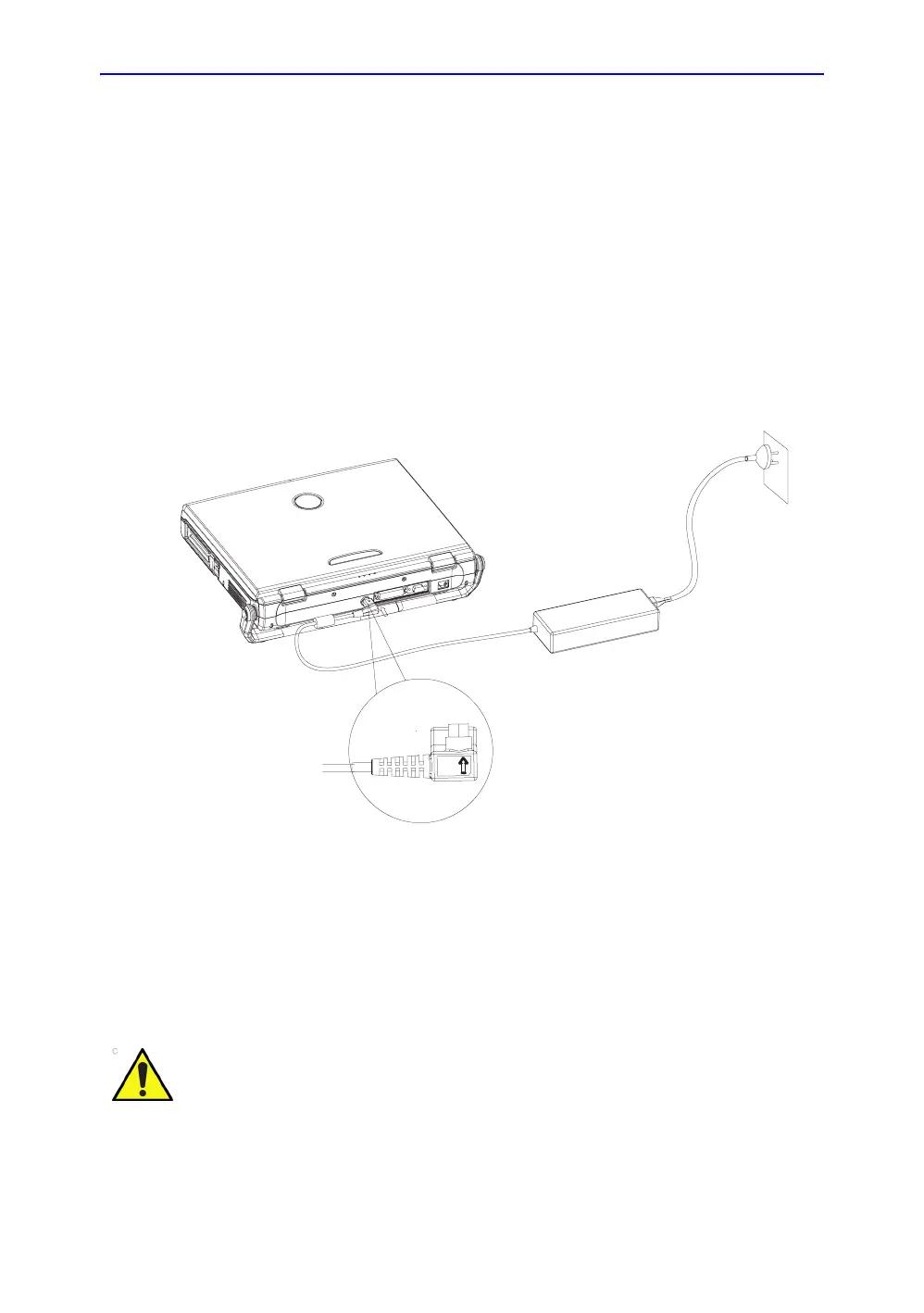

Figure 3-6. Connect AC adapter
When power is applied to the system, power is distributed to the
Cooling Unit, Control Panel, LCD, Peripherals and the Back-end
Processor.
ＵＰ
CAUTION
The system should rest on the handle to allow an air gap to
prevent overheating.
