Renewal Parts Lists
LOGIQ e – Basic Servic
e Manual
9-13
5461614-100
English Rev. 6
E-Isolation Cart and
Advanced Isolation Cart
T
able
9-6:
E-Isolation Cart and Advanced Iso
lation Cart
Item
Part
Number
Part Name
Replaced
By
Corresponding graphic
Qty

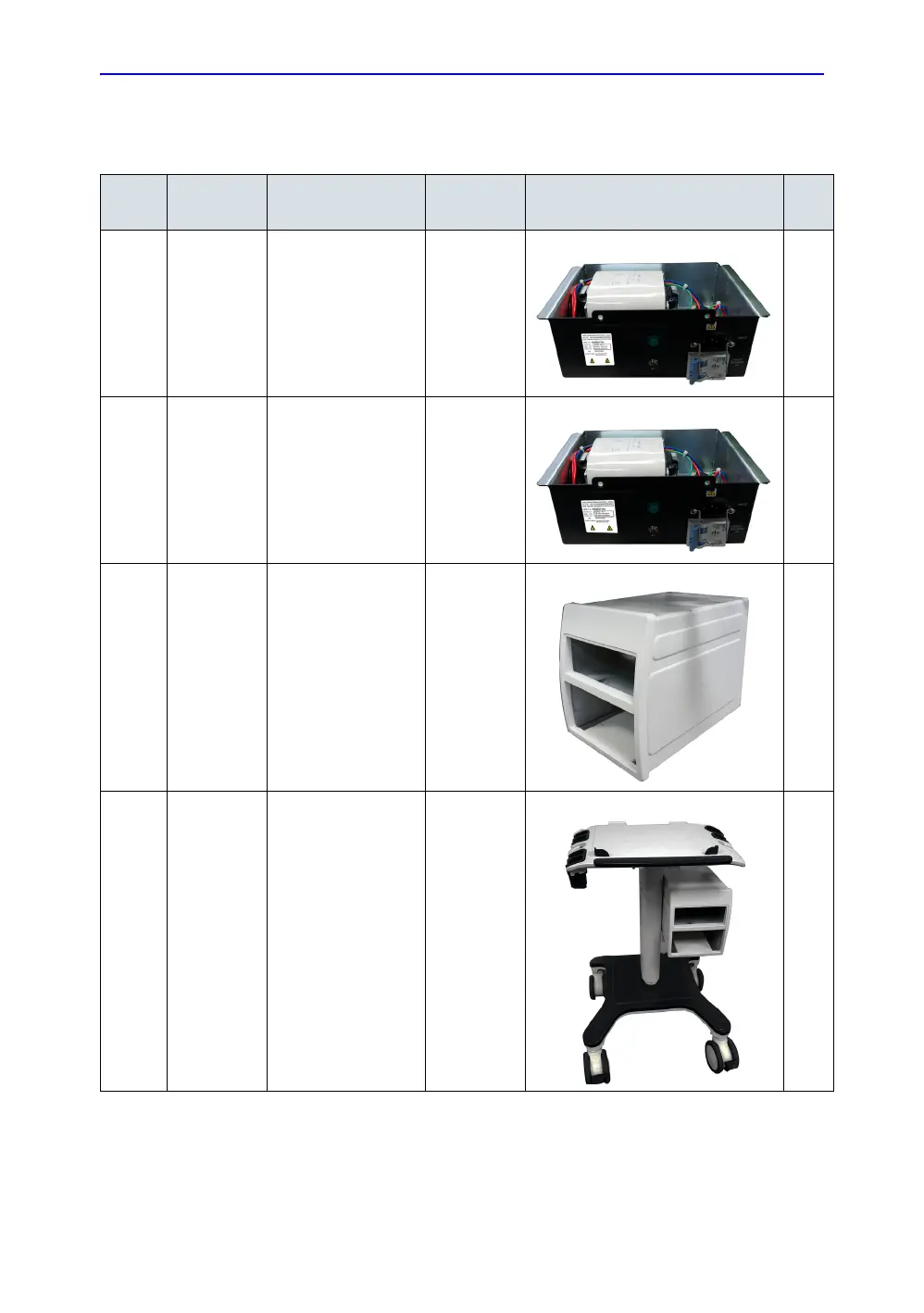

1400
5507953
Isolation Cart Power
Box 220V
1
1401
5507952
Isolation Cart Power
Box 1
10V
1
1402
5420768-2
Printer Box Assy for
E-Isolation Cart
1
1403
5420771-2
E-Isolation Cart
Assy
1
274
276
