Renewal Parts Lists
LOGIQ e – Basic Service Ma
nual
9-9
5461614-100
English Rev. 6

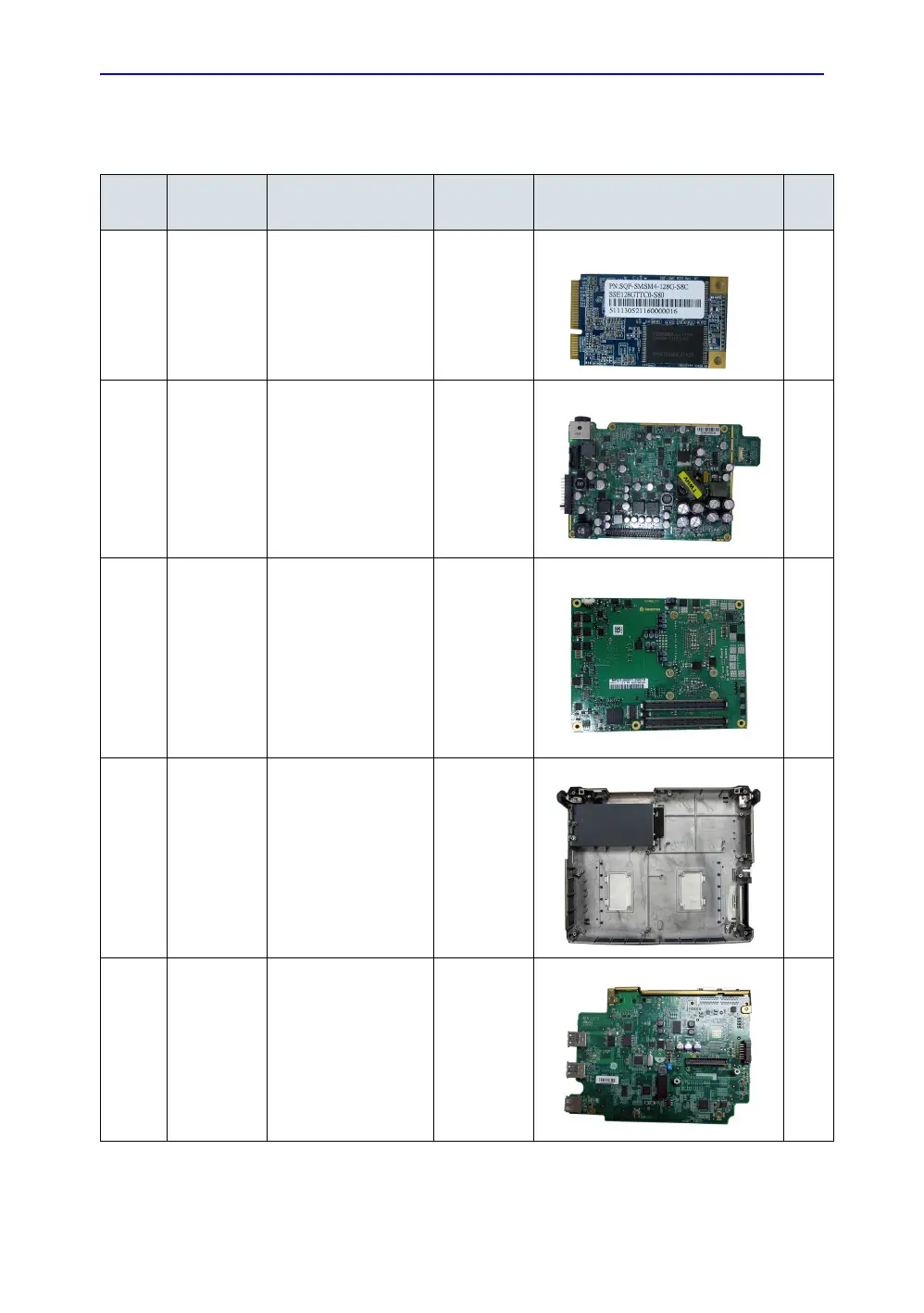

Bottom Assy
T
able
9-5:
Bottom Assy
Item
Part
Number
Part Name
Replaced
By
Corresponding gra
phic
Qty
300
5482282
Advantech 128G SSD
Model:SQF-SMSM4-
128G-S8C
1
301
5443576
LOGIQ e WDC PW
A
1
302
5449310
LOGIQ e CPU
Module
1
303
5452099
LOGIQ e Bottom
Cover Assy
1
304
5462354
LOGIQ e Utility PW
A
Assy
1
270
272
Table of Contents
Default Chapter
13
Certified Electrical Contractor Statement - for USA Only
13
Damage in Transportation
13
Omission and Errors
14
Service Safety Considerations
15
Copyrights
16
Legal Notes
16
Proprietary to GE
16
Trademarks
16
Table of Contents
17
Chapter 1 - Introduction
25
Overview
26
Contents in this Chapter
26
Manual Overview
27
Contents in this Section
27
Contents in this Service Manual
27
Typical Users of the Basic Service Manual
28
LOGIQ E Models Covered by this Manual
29
General Caution
30
Important Conventions
31
Conventions Used in Book
31
Standard Hazard Icons
33
Product Icons
35
Label Icon Description
35
Introduction
36
Contents in this Section
43
Human Safety
43
Mechanical Safety
46
Electrical Safety
48
Battery Safety
50
Dangerous Procedure Warnings
52
Lockout/Tagout (LOTO) Requirements
53
Returning Probes and Repair Parts
54
EMC, EMI and ESD
55
Contents in this Section
55
What Is EMC
55
CE Compliance
55
Electrostatic Discharge (ESD) Prevention
56
Customer Assistance
57
Contact Information
57
Phone Numbers for Customer Assistance
58
System Manufacturer
58
Factory Site
59
Chapter 2 - Site Preparations
61
Overview
62
Contents in this Chapter
62
General Requirements
63
Contents in this Section
63
Ultrasound System Environmental Requirements
63
Electrical Requirements
66
EMI Limitations
69
Probes Environmental Requirements
71
Facility Needs
72
Purchaser Responsibilities
72
Required Facility Needs
73
Desirable Features
74
Suggested and Alternate Ultrasound Room Layout
75
Networking Setup Requirements
76
Environmental Dangers
79
Patient Environment IEC60601-1And ANSI AAMI ES60601-1
79
Chapter 3 - System Setup
81
Overview
82
Contents in this Chapter
82
Setup Reminders
83
Contents in this Section
83
Average Setup Time
83
Setup Warnings
83
Receiving and Unpacking the Equipment
86
Contents in this Section
86
Receiving the LOGIQ E
86
Unpacking the LOGIQ E
87
Packing the Equipment
90
Preparing for Setup
91
Verify Customer Order
91
Physical Inspection
91
EMI Protection
91
Completing the Setup
92
Contents in this Section
92
System Specifications
92
Electrical Specifications
93
Power on / Boot up
94
Power Off/Shutdown
96
Connecting Probes
97
System Configuration
99
Contents in this Section
99
LOGIQ E Configuration
100
Connecting Cables
102
Peripheral/Accessories Connector Panel
103
Available Probes
110
Software Options Configuration
111
Connectivity Setup
111
Paperwork after Setup
113
User's Manual(S)
113
Product Locator Installation Card
113
Peripherals Installation
114
Contents in this Section
114
Overview
115
Furnished Materials
116
Peripherals Installation Instructions
118
Chapter 4 - General Procedures and Functional Checks
135
Overview
136
Contents in this Chapter
136
Special Equipment Required
136
General Procedures
137
Contents in this Section
137
Caution and Warning
138
Power On/Boot up
139
Power Shut down
145
Removable Media
147
Archiving and Loading Presets
147
Where Are the User Manuals and the Service Manual
148
How to Display or Print the PDF Files from the Manual CD-ROM
149
Lockout/Tagout (LOTO) Requirements
150
Functional Checks
151
Contents in this Section
151
Overview
152
Operator Panel
152
Soft Menu Key Tour
153
Monitor Display
154
Performance Tests
155
Software Configuration Checks
186
Peripheral Checks
186
Chapter 5 - Components and Functions (Theory)
195
Overview
196
Contents in this Chapter
196
Block Diagram and Theory
197
Contents in this Section
197
Block Diagram
197
General Information
198
Top Console
198
Overview
199
AC Power
199
Battery Charging
200
Air Flow Distribution
200
Common Service Platform
201
Contents in this Chapter
201
Introduction
201
The Usage for Security Cable
202
Global Service User Interface (GSUI)
203
Service Login
203
Access/Security
204
Customer Service Home Page
207
Chapter 6 - Service Adjustments
209
LCD Monitor Adjustments
210
Purpose of this Section
210
Monitor Adjustments
210
Chapter 7 - Diagnostics/Troubleshooting
211
Overview
212
Contents in this Chapter
212
Gathering Trouble Data
213
Overview
213
Contents in this Section
213
Collect Vital System Information
213
Collect a Trouble Image with Logs
215
USB Quick Save
217
Overview
217
Check and Record the P3 Key Function
217
Setting the P3 Key to USB Quick Save
218
Screen Capture
219
Contents in this Section
219
Check and Record the P1 Key Function
220
Setting the P1 Key to Screen Capture
220
Capturing a Screen
221
Reset the P1 Key to Customer's Functionality
222
Global Service User Interface (GSUI)
223
Contents in this Section
223
Common Diagnostics
223
Network Configuration
227
Contents in this Section
227
Software Download
230
Chapter 8 - Replacement Procedures
237
Overview
238
Contents in this Chapter
238
Warnings and Important Information
239
Warnings
239
Returning/Shipping Probes and Repair Parts
240
Disassembly/Re-Assembly
241
Warning and Caution
241
Handle Assy (Part No. 5483188)
242
Loading the Software
249
Contents in this Section
249
Purpose of this Section
249
Customer Provided Prerequisite
249
Data Management - Moving All Images
250
Backing up the Patient Archive and System Configurations
250
Recording Important Settings and Parameters
251
Loading the System Software
252
Chapter 9 - Renewal Parts
263
Overview
264
Contents in this Chapter
264
List of Abbreviations
264
Renewal Parts Lists
265
Contents in this Section
265
Power Cable
266
Operator Console Assy
267
LCD Assy
268
Keyboard Assy
269
Bottom Assy
271
E-Isolation Cart and Advanced Isolation Cart
275
Accessories and Kits
279
Probe
281
Manuals
283
Chapter 10 - Care and Maintenance
285
Overview
286
Contents in this Chapter
286
Protecting Health Information
287
Hide Patient Data
287
Users
289
Logon
291
Warnings
292
Why Do Maintenance
293
Periodic Maintenance Inspections
293
Keeping Records
293
Quality Assurance
294
Maintenance Task Schedule
295
How Often Should Maintenance Tasks be Performed
295
Tools Required
297
Standard GE Tool Kit
297
GE-2 Tool Kit
299
Special Tools, Supplies and Equipment Used for Maintenance
300
System Maintenance
301
Contents in this Section
301
Preliminary Checks
301
Functional Checks
303
Physical Inspection
305
Optional Diagnostic Checks
306
Probe Maintenance
307
Battery Performance Maintenance
309
Electrical Safety Tests
310
Safety Test Overview
310
Leakage Current Limits
313
Outlet Test - Wiring Arrangement
315
Grounding Continuity
316
Chassis Leakage Current Test
317
Probe Leakage Current Test
319
When There's too Much Leakage Current
322
AC/DC Fails
322
Chassis Fails
322
Probe Fails
323
Peripheral Fails
323
Still Fails
323
New Unit
323
ECG Fails
323
Inspection Paperwork
324
Ultrasound Inspection Forms
324
Electrical Safety Tests Log
326
Chapter 11 - Docking Cart Setup
329
Overview
330
Contents in this Chapter
330
Set up Docking Cart
332
Contents in this Section
332
Setup Reminders
333
Receiving and Unpacking the Equipment
336
Preparing for Installation
340
Peripheral Installation
342
Options Installation
353
Paperwork
367
Cart Using
368
Contents in this Section
368
Introduction
368
Height Adjustment
368
Locking the Wheels
369
Mounting the System to Cart
369
Release the System from Docking Cart
370
Switch the Three Probes
371
System Operation
371
Docking Cart Functions (Theory)
372
Information
373
Supported External Interface/Port
373
Configuration on External Display through DVI Connection
374
Diagnostics/Troubleshooting
380
Overview
380
Troubleshooting
380
Gathering Trouble Data
380
Troubleshooting Trees
381
Chapter 12 - Docking Cart Servicing
385
Replacement Procedure
386
Introduction
386
Disassembly/Re-Assembly
386
Renewal Parts
386
Contents in this Section
387
Introduction
387
Power Cable
397
Operator Console Assy
398
Docking Station
399
Probe Holder
401
Shelf Service
403
Bottom and Wheels
404
Panel and Cabinet
405
Gas Spring and Gas Spring Lever
405
Power Box and Extended Life Battery
405
Overview
386
Contents in this Chapter
386
List of Abbreviations
386
Care & Maintenance
407
Contents in this Section
407
Overview
407
Why Do Maintenance
409
Maintenance Task Schedule
410
Tools Required
412
Cleaning Dusk Screen
413
Safety Test (Continued)
414
When There's too Much Leakage Current
418
Other manuals for GE LOGIQ e
Quick Guide
25 pages
Technical Publication
127 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the GE LOGIQ e and is the answer not in the manual?
Ask a question
GE LOGIQ e Specifications
General
Brand
GE
Model
LOGIQ e
Category
Medical Equipment
Language
English
Related product manuals
GE LOGIQ 5
452 pages
GE LOGIQ 3
127 pages
GE LOGIQ V2
317 pages
GE LOGIQ F8
167 pages
GE LOGIQ S8
418 pages
GE LOGIQ E9
808 pages
GE LOGIQ P5
532 pages
GE LOGIQ V5
305 pages
GE LOGIQ F6
167 pages
GE LOGIQ P9
602 pages
GE LOGIQ S6
318 pages
GE LOGIQ P7
602 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
