Replacement Procedures
8-6 LOGIQ e – Basic Service Manual
5461614-100 English Rev. 6
Handle Assy (Part No. 5483188)
Purpose: This is a description on how to remove and replace the
Handle Assy.
Tools
• Common Phillips screwdrivers
• Allen/Unbraco/Torx wrench
Needed Manpower
• 1 person, 5 minutes + travel
Preparation
• Shut down the system, disconnect the AC/DC power cord
and remove the battery.
Removal Procedure
Mounting Procedure
1. Install the new parts in the reverse order of removal.

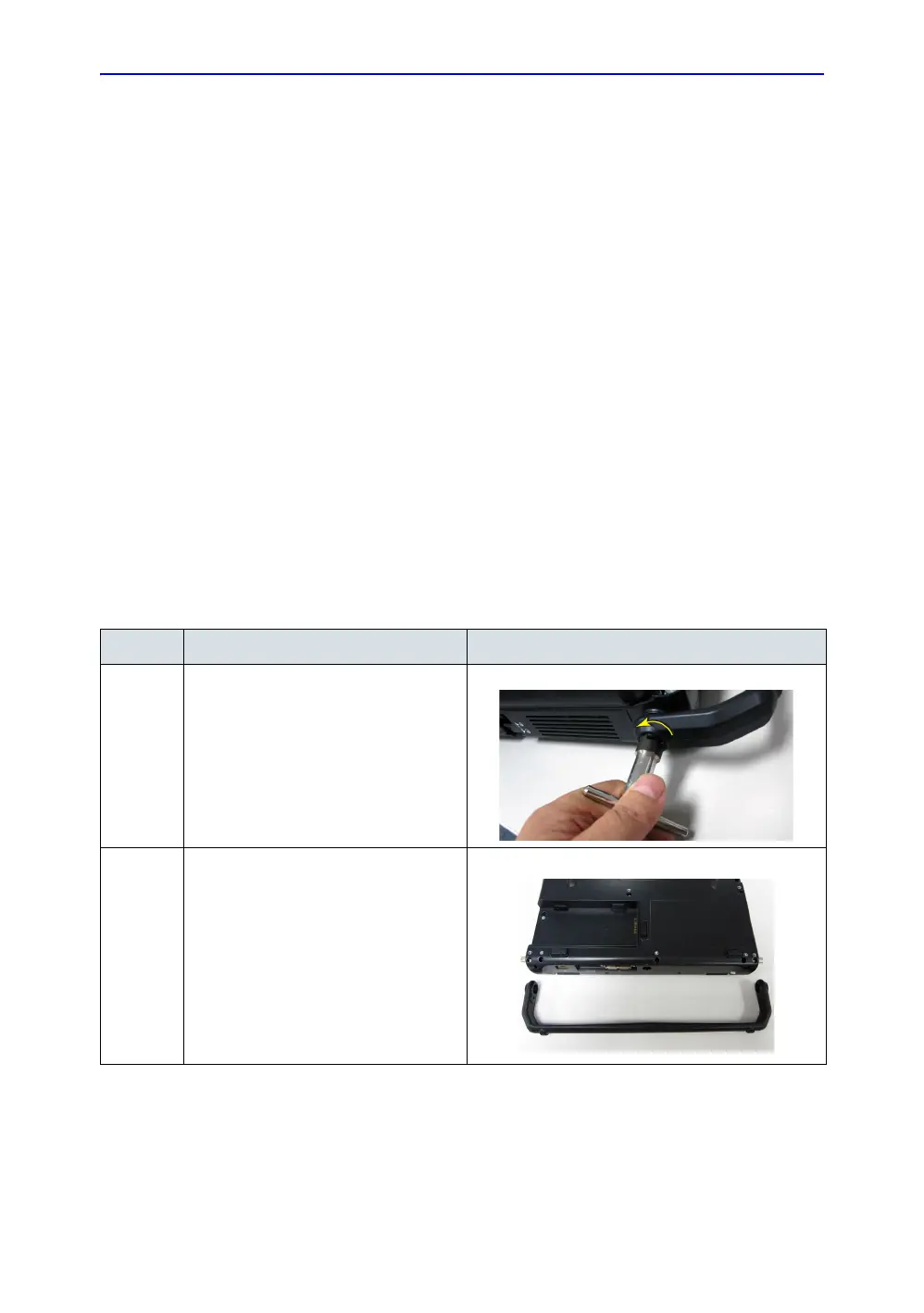

Table 8-1: Removal Procedure for Handle Assy
No. Steps Corresponding Graphic
1. Unscrew 2 handles caps on both sides
of the system by rotating the cap
counterclockwise.
2. Pull out the handle.
To Next Page
